LD Systems PPA 2 Preamplifier
EAN:
Part number:
Item no:
Highlights & Details
LD Systems PPA 2 phono pre-amplifier and equalizer
- Ultra-compact phono pre-amp in analogue technologyCorrect RIAA equalizationRCA inputs and outputs6.35 mm stereo headphone outputSturdy metal housing12V mains adapter included
Technical specifications
- Design: Stereo input / stereo outputFrequency response: RIAA HZ curveSignal-to-noise ratio 70 dB<0.05% THDChannel cross-talk -75 dBInput level max. -23.5 dBVOutput level Max. (Filter) (V): +10 dBVInput impedance (kOhm) 47 kOhmOutput impedance 50 OhmPower LED indicatorsInputs 1 x phono stereoInput connection 2 x cinch, earth terminalLine outputs: Headphone, line stereoLine output sockets 2 x phono, 6.3 mm stereo jackPower supply: External power supplyOperating voltage: 12 V DCPower consumption 0.15
- Product type
Preamplifier
- No. of inputs
2 x
- No. of RCA inputs
2 x
- No. of RCA outputs
2 x
- No. of 6.3 mm headphone outputs
1 x
- Interfaces
Phono in
RCA in
RCA out
- Length
67 mm
- Width
104 mm
- Height
36 mm
- Dim
(L x W x H) 67 x 104 x 36 mm
- Weight
280 g
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2749911 LD Systems PPA 2 Preamplifier
Description

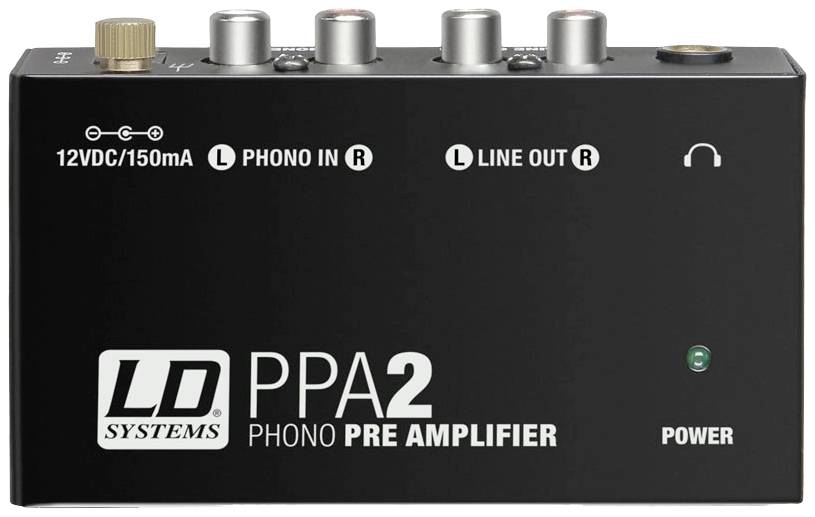

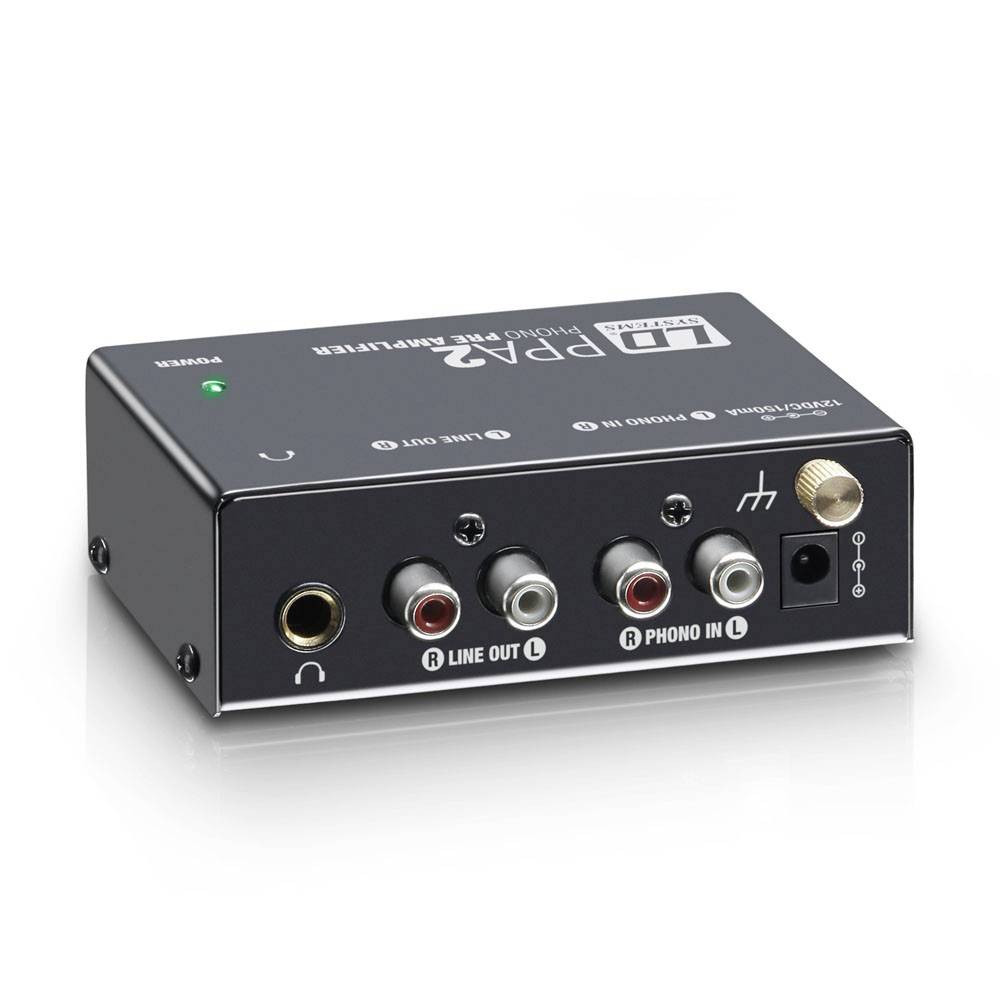

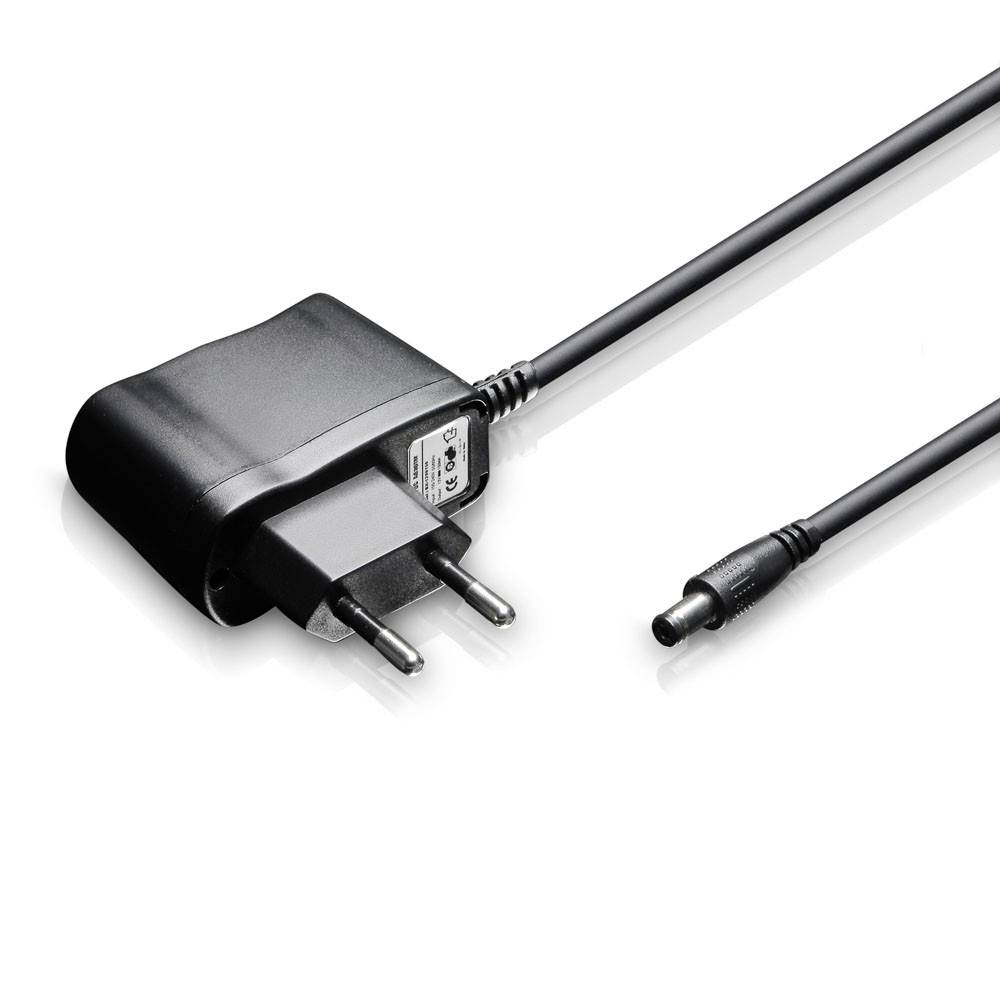

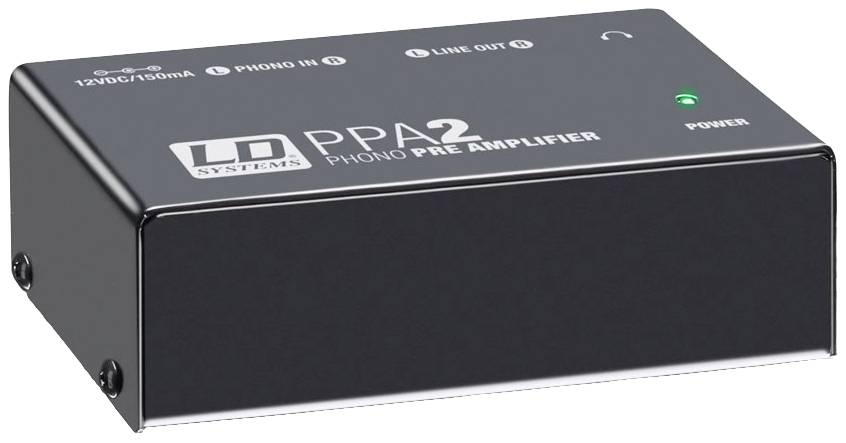

The LD Systems PPA 2 is an extremely compact analogue phono pre-amplifier, which compensates the extremely low output signal of conventional record players to the RIAA standard. It allows connection to devices without a phono input, for example Mixers, PA power amplifiers or sound cards.The phono inputs are designed like the line outputs as RCA sockets, the PPA 2 also has a screw terminal for the earth conductor of the record player and a 6.35 mm stereo socket for connecting headphones. The distortion factor of the preamplifier is below 0.05% and the channel separation amounts to -75 dB.The LD Systems PPA 2 is operated with the associated 12V mains adapter, a bright LED indicates the voltage supply on the top of the stable metal housing.
