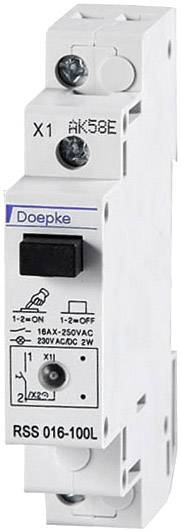

LED power off 1-pin 16 A 230 V Doepke 09981075
EAN:
Part number:
Item no:
Product type
LED power off
Nominal voltage
230 V
Nominal current - rounded value
16 A
Operating voltage
230 V
Dim
(W x H x D) 18 x 90 x 65 mm
Datasheet (PDF)
Highlights & Details
DOEP off RSS 016-100 L1S with indicator lamp
- Quick mounting on DIN rail
- All mounting positions permitted
- Switch-over via button
Technical specifications
- Product type
LED power off
- Operating voltage
230 V
- Nominal voltage
230 V
- Dim
(W x H x D) 18 x 90 x 65 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- No. of partitions
1
- LED colour
Yellow
- Width
18 mm
- Height
90 mm
- Depth
65 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136310 LED power off 1-pin 16 A 230 V Doepke 09981075
User & Safety Instructions
User & Safety Instructions 2136310 LED power off 1-pin 16 A 230 V Doepke 09981075
Description
Control switch can be used for operation of electrical loads used or you generate static signals for controls. The compact control switch of the series RSS can high rated currents. You are thanks to many different contact designs can be used flexibly. This design is over the lock button is pressed and is equipped with an LED for displaying the switching state. Features: - switching via button (black)-versions with different rated currents, contact configurations with or without orange LED available;-captive lift terminals with rear plug and touch protection; - large terminal cross section; - Compact Design Installation type: quick mounting on rail fixing - any installation position applications: The components offer universal application possibilities for control tasks in the industrial and building technology as well as in the home installation.
