Highlights & Details

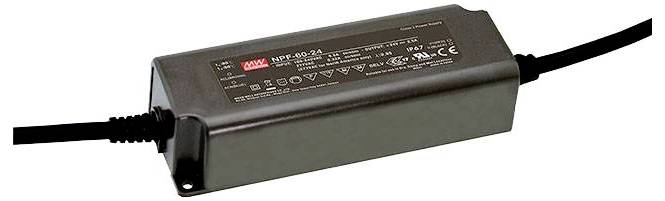

NPF-60D-24

Constant voltage, Constant current
14.4 - 24 V DC
2.5 A

Technical specifications

Product type: LED driver

Type: Constant voltage
Constant current

Dim: (L x W x H) 235 x 75 x 45 mm

Output voltage (max.): 24 V DC

Output voltage (min.): 14.4 V DC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

Operating voltage: 115 V AC
230 V AC

Protection class: II

LED driver features: dimmable
PFC circuit
Surge protection
Approved for use on furniture

: IP67

Connection: Open end cable

Max. power: 60 W

No. of outputs: 1 x

No. of inputs: 1 x

Type: constant voltage+constant current

Input voltage (max.): 305 V AC

Min. input voltage: 90 V AC

Weight: 523 g

Power range: 60 W (max)

Type: switched-mode

Width: 75 mm

Height: 45 mm

Length: 235 mm

Output voltage: 24 V

Output current (details): 2.5 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1371808 LED-switching power supply

User & Safety Instructions

User & Safety Instructions 1371808 LED-switching power supply

Information

Information 1371808 LED-switching power supply

Warranty Terms

Warranty Terms 1371808 LED-switching power supply

Description

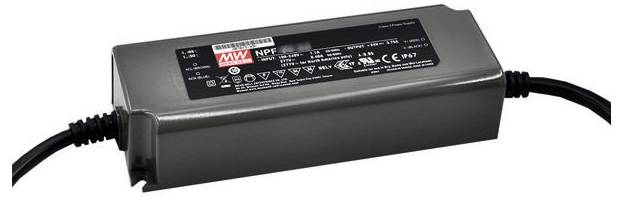

LED-switching power supply in plastic case, suitable for LED lighting and moving sign applications, low no load power consumption

Features

Universal input
Plastic enclosure IP67
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
Built-in active PFC function
Low no load power consumption
Suitable for LED lighting and moving sign applications
Fixed output voltage
Constant current
EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13
NPF-40D: built-in 3 in 1 dimming function (external voltage 0...10V DC, PWM, potentiometer)

Hints

Suitable for indoor use and outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes. These power supplies are considered as a component that has to be installed in a final equipment.
