Buy LED2WORK Industrial LED indicator light LEANLED II Basic-Line 5355 lm 120 ° 24 V DC Piece 1 pc(s)

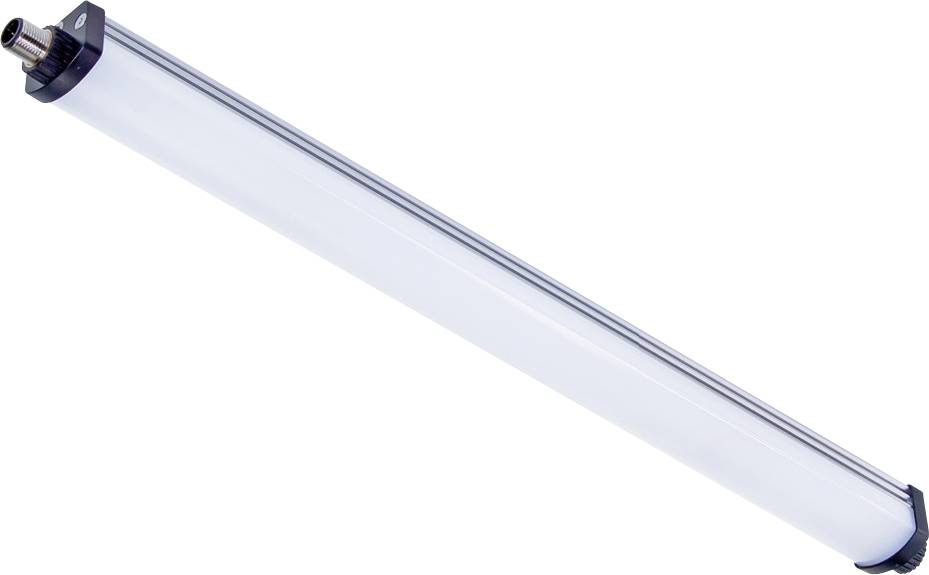

A long, white LED tube light with black ends is shown at an angle.

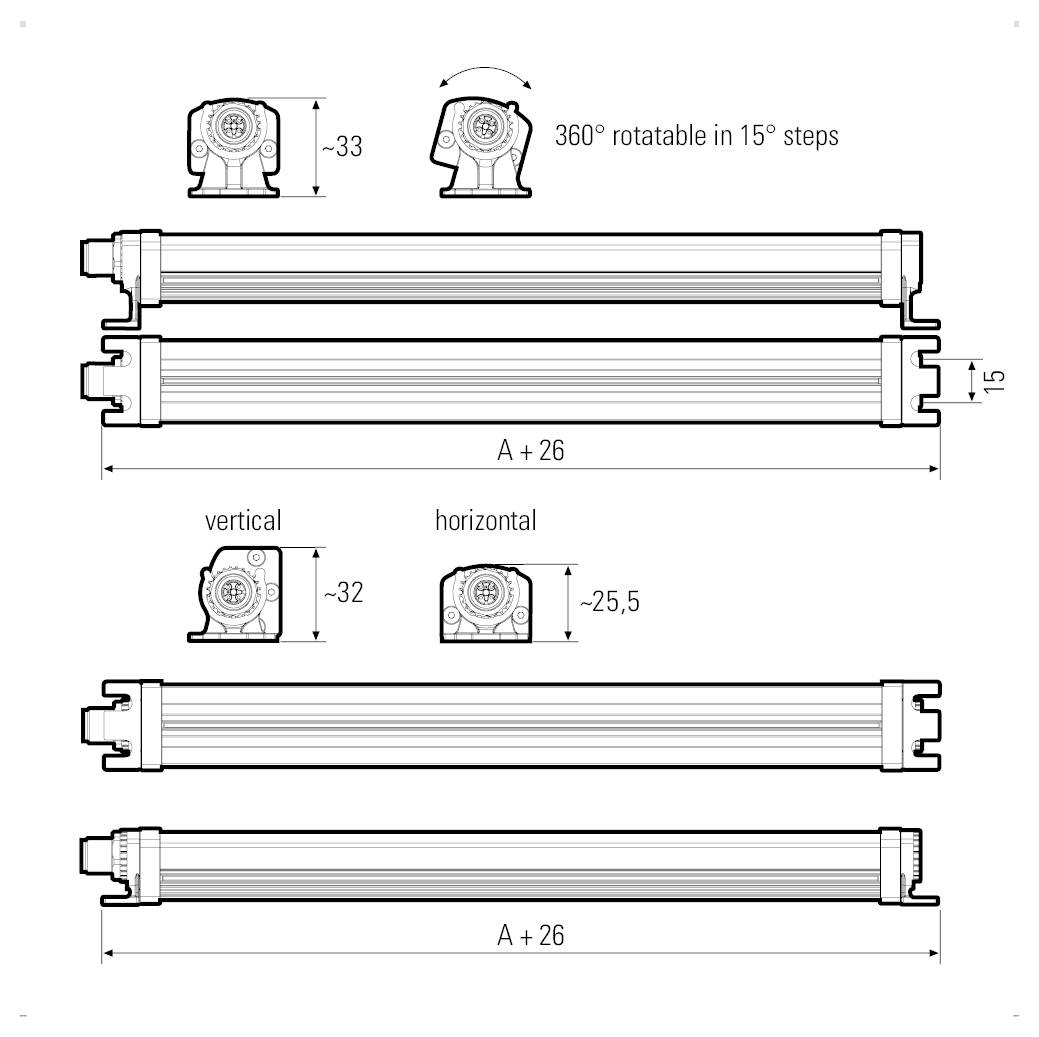

Technical diagram showing a light fixture with mounting brackets. The top section shows end views with '360° rotatable in 15° steps'. The bottom section illustrates measurements: 'A + 26', '-32 vertical', '-25.5 horizontal'.

1/2

Packaging type

Piece

Product type

Industrial LED indicator light

Operating voltage

24 V DC

Luminous flux (Φ)

5355 lm

Energy efficiency rating

n.rel.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Industrial LED indicator light

Type: LEANLED II Basic-Line

Operating voltage: 24 V DC

Luminous flux (Φ): 5355 lm

Radiation angle: 120°

Connection: M12 plug

Protection class: IP54

RoHS-compliant: Yes

: n.rel.

: III

: 30 mm

: None

: 0.34 mm²

: Other

: Aluminium

: DC

: FALSE

: 36-36 W

: LED operating device voltage-controlled

: 80-89

: FALSE

: 2

: 1520 mm

: 25 mm

: Metal/plastic

: LED not exchangeable

: TRUE

: FALSE

: 20-24 V

: FALSE

: IP54

: TRUE

: TRUE

: FALSE

: 1

: FALSE

: 1440-1440 mA

: 5700-5700 K

: 36.4 W

: 589 lm

: White

: FALSE

: FALSE

: Ending

: 60000 h

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: Other

: 155 lm/W

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 80 %

: 10 %

: No

: No

: No

: FALSE

: FALSE

: FALSE

: 1

Documents & Downloads

Datasheet

Datasheet 3741731 LED2WORK Industrial LED indicator light LEANLED II Basic-Line 5355 lm 120 ° 24 V DC Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3741731 LED2WORK Industrial LED indicator light LEANLED II Basic-Line 5355 lm 120 ° 24 V DC Piece 1 pc(s)

Description

The slim LEANLED II Basic Line LED light is a cost-effective solution for the functional use in simple machines, plants or for interior lighting of control cabinets. Its newly developed LED lamp on circuit board basis provides a reliable light output with simultaneously optimized production costs. This makes the LEANLED II Basic-Line suitable wherever functional, economical lighting is most important. Variants with clear coverage for directional illumination or with opal white cover for even light distribution are available for different lighting requirements.

This text is machine translated.
