Buy LED2WORK Light fixture SYSTEMLED SurfaceOne 11660 lm 90 ° Piece 1 pc(s)

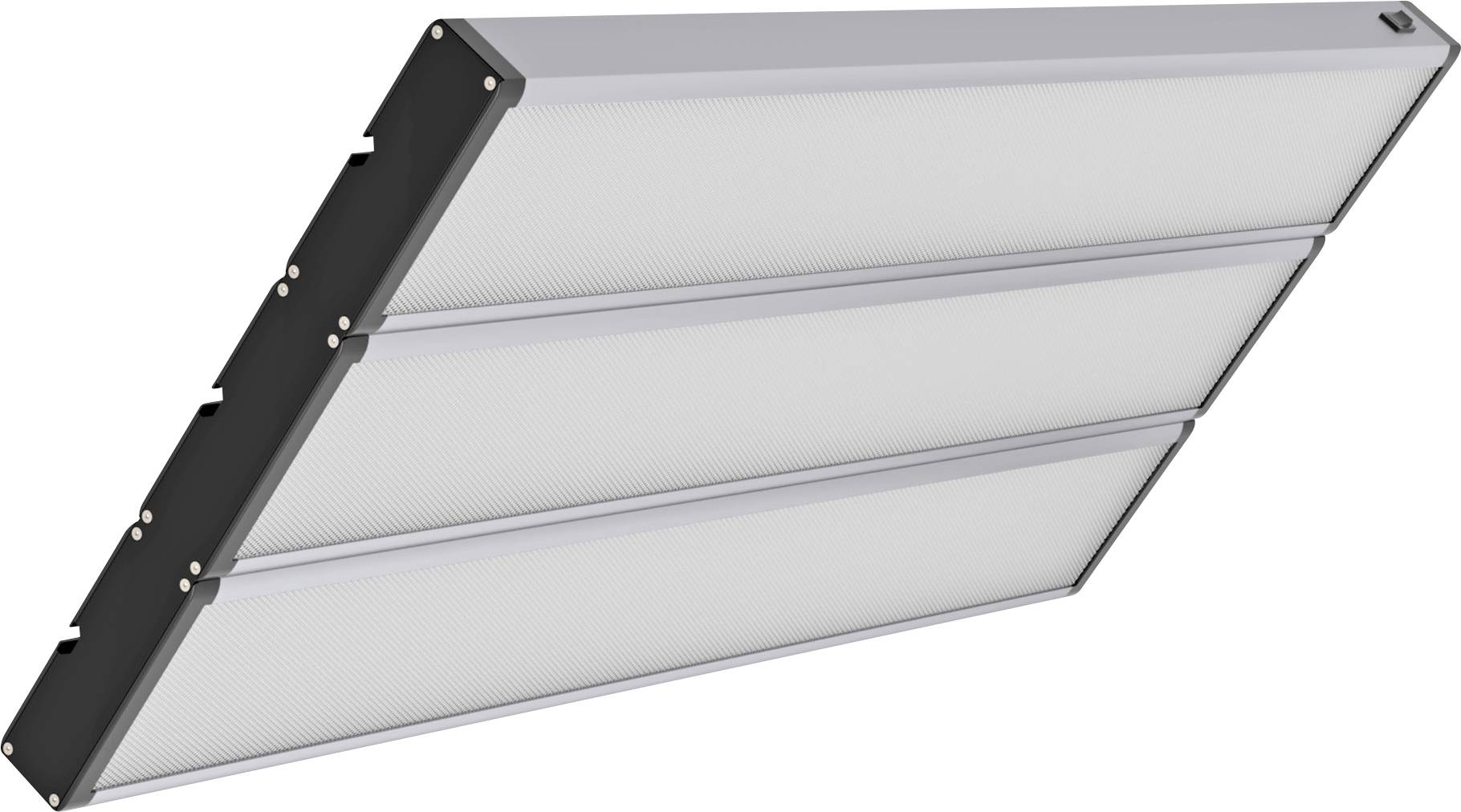

Rectangular LED panel light fixture with three sections, designed for ceiling installation, used for energy-efficient indoor lighting.

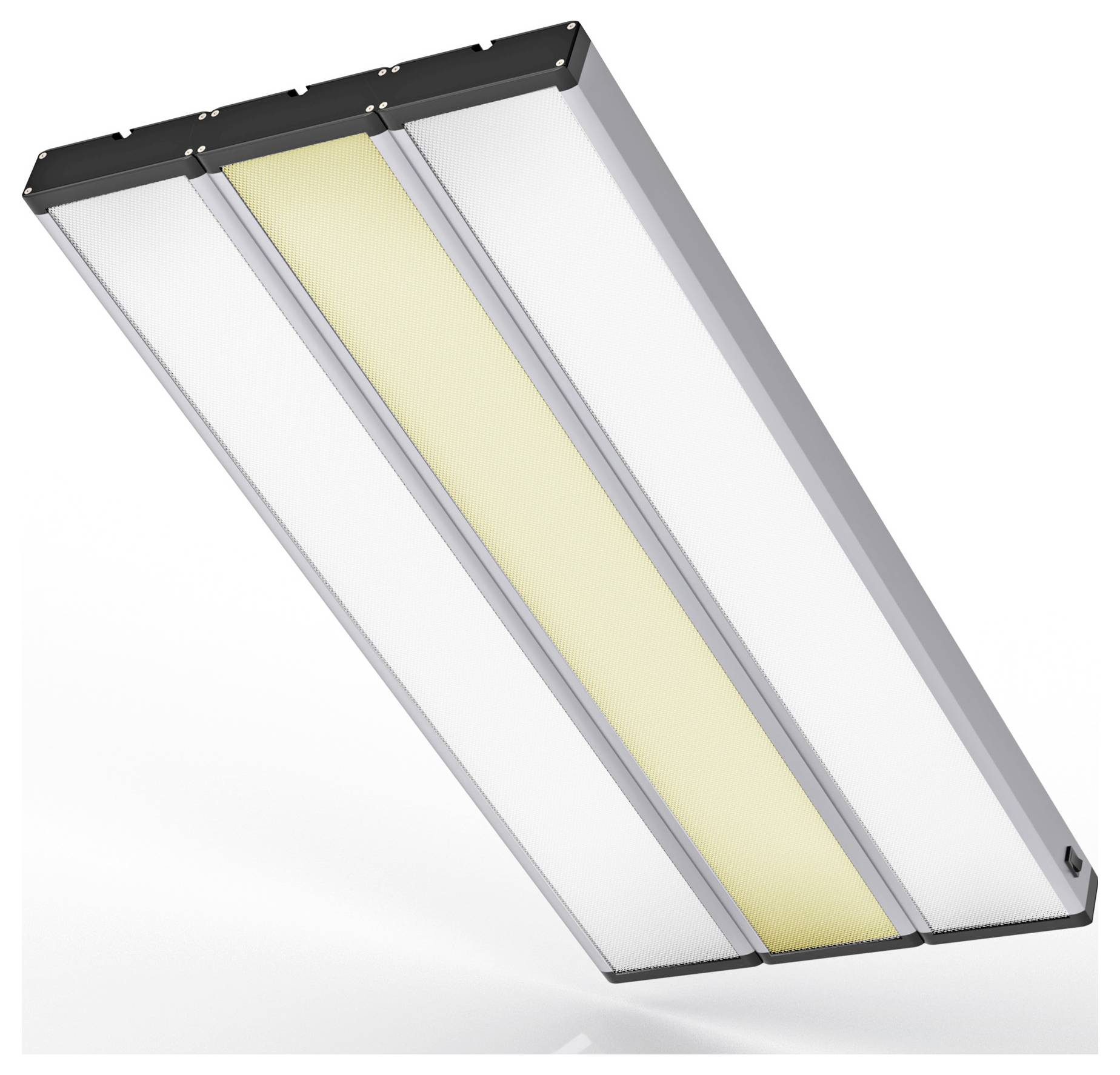

A rectangular LED ceiling light fixture with three panels, two white and one illuminated in yellow, set against a plain background.

A flat, rectangular lithium battery pack with a series of metallic panels and connectors, typically used in electric vehicles.

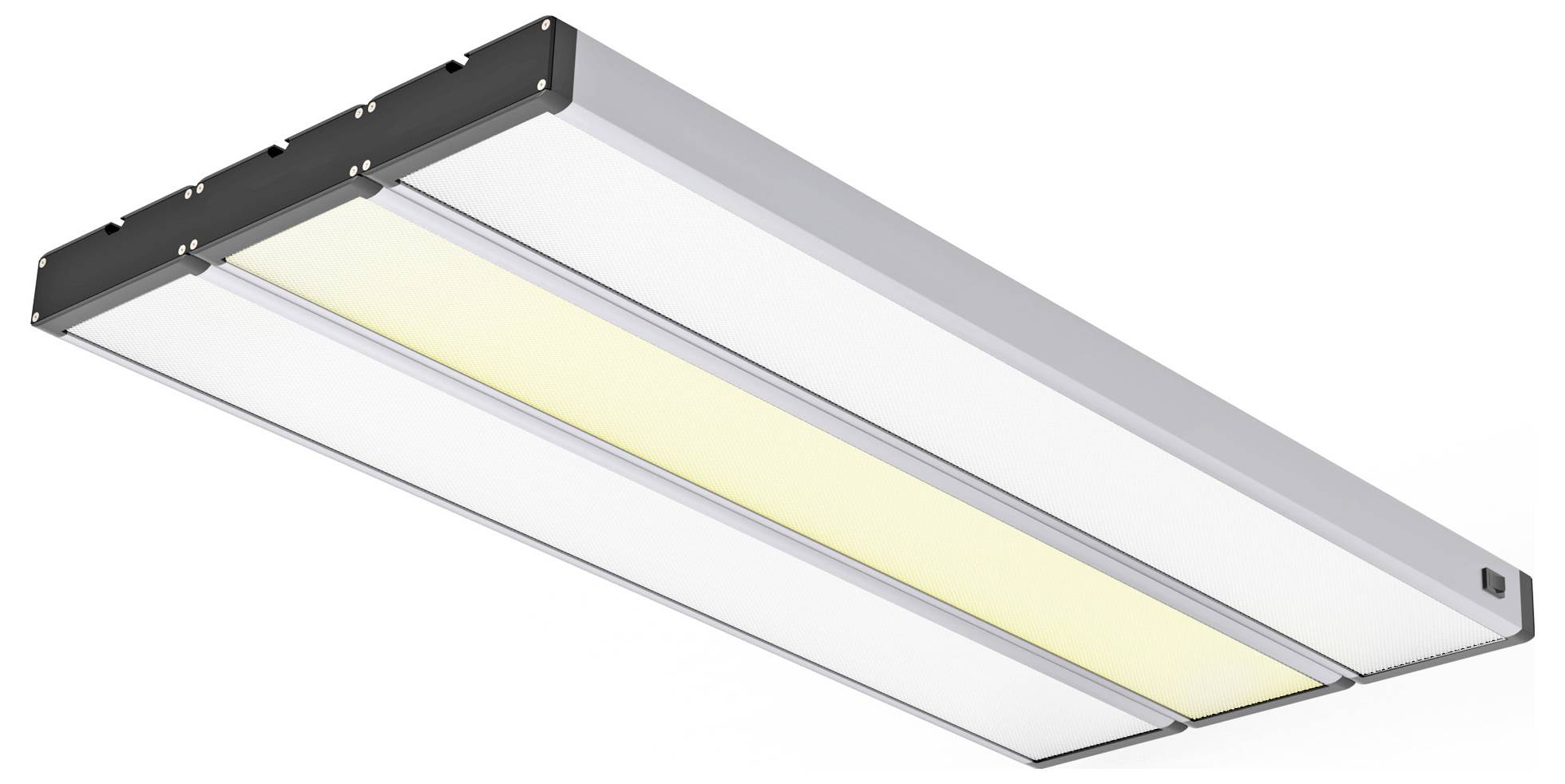

A rectangular LED ceiling light fixture with a central illuminated panel, set against a white background.

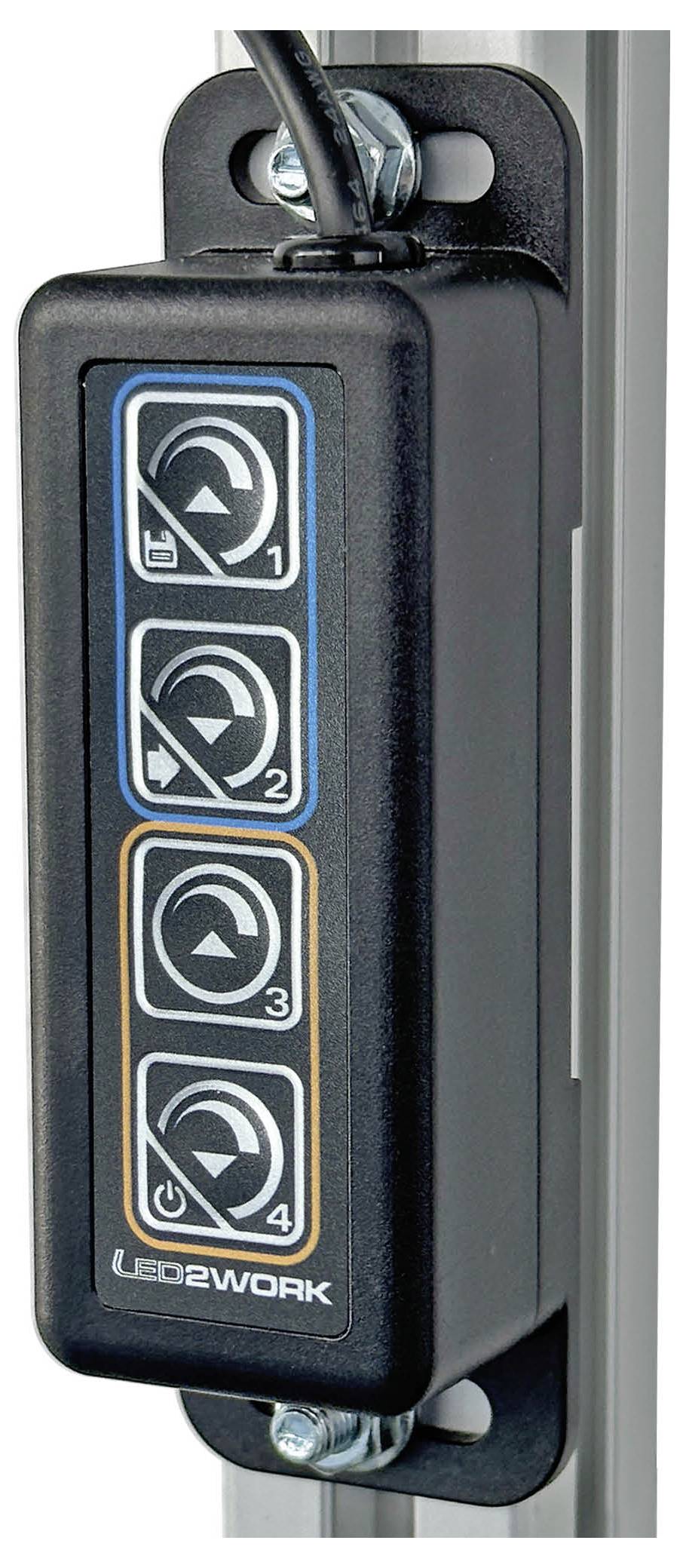

'LED2WORK' branded control panel with four labeled dials on a mounting bracket for adjusting lighting settings.

1/6

Packaging type

Piece

Product type

Light fixture

Luminous flux (Φ)

11660 lm

Energy efficiency rating

n.rel.

Type

SYSTEMLED SurfaceOne

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Light fixture

Type: SYSTEMLED SurfaceOne

Min. operating voltage: 120 V AC

Max. operating voltage: 277 V AC

Operating voltage: 120 - 277 V AC

Min. colour temperature: 4000 K

Colour temperature (max.): 6500 K

Luminous flux (Φ): 11660 lm

Radiation angle: 90°

Connection: Plug

Protection class: IP40

RoHS-compliant: Yes

: n.rel.

Documents & Downloads

Datasheet

Datasheet 3741714 LED2WORK Light fixture SYSTEMLED SurfaceOne 11660 lm 90 ° Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3741714 LED2WORK Light fixture SYSTEMLED SurfaceOne 11660 lm 90 ° Piece 1 pc(s)

Description

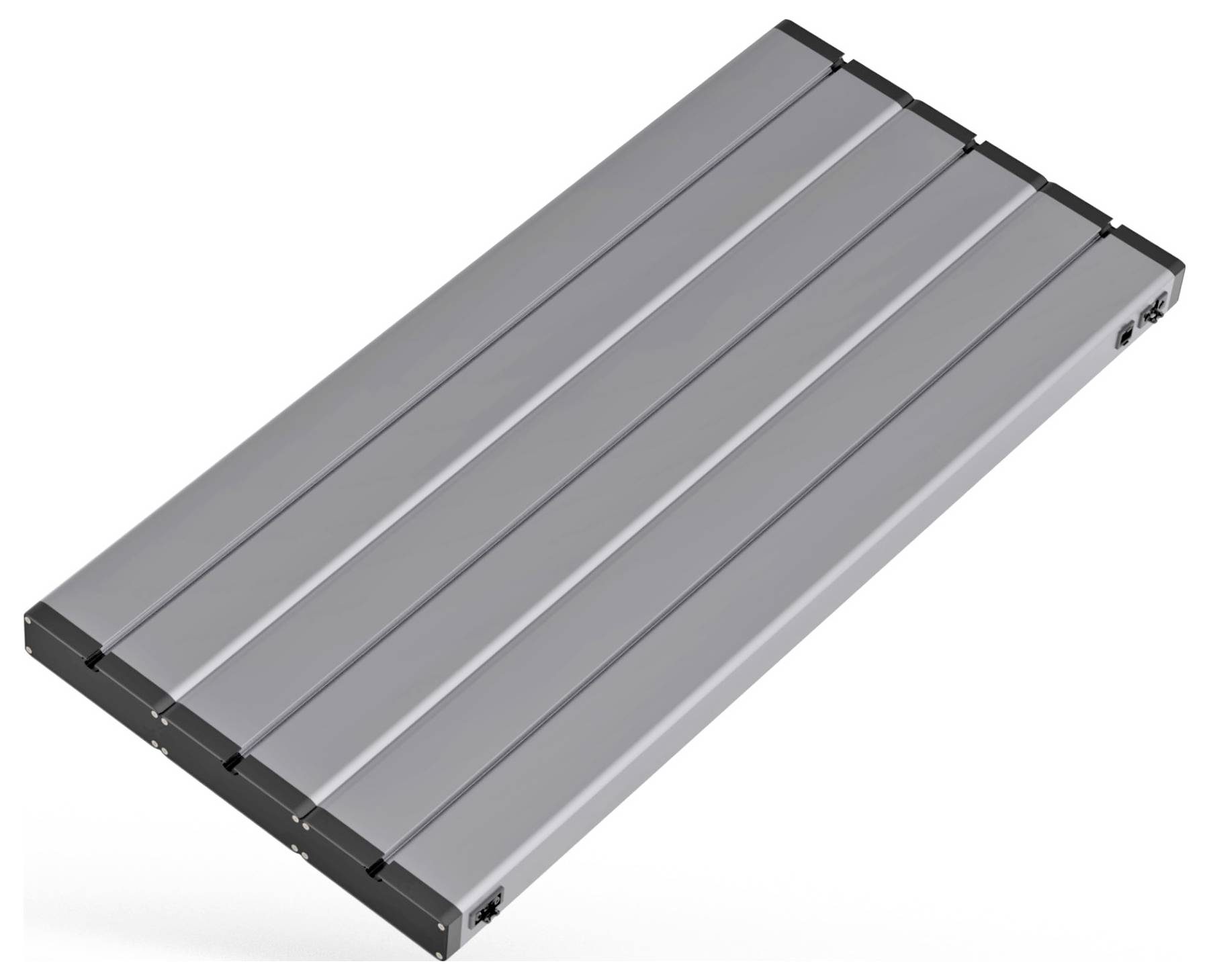

The SYSTEMLED SurfaceOne is a special LED light for testing and mounting areas that meets the requirements of the VDA 16 module and thus provides standardized lighting for visually challenging control tasks. It provides optimum light with color temperatures of 4000 K and 6500 K, which are arranged alternately in the construction of lamps, as well as color reproduction of Ra > 90 for the precise inspection of surfaces and the detection of errors or unevenness. The micro-prism cover ensures even illumination without visible light spots. Thanks to its high light output, excellent color reproduction and low-glare light with a UGR value of less than 22, the SYSTEM LED SurfaceOne allows you to work effortlessly even with long visual inspections. The lamp is available in a four-way or three-way light source and in three different lengths. It is fixed via T-slots on the back side. The lamp is maintenance-free and has a long life span.

This text is machine translated.
