LED2WORK Light fixture SYSTEMLED SurfaceOne 15640 lm 90 ° Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Light fixture
Luminous flux (Φ)
15640 lm
Energy efficiency rating
n.rel.
Type
SYSTEMLED SurfaceOne
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Light fixture
- Type
SYSTEMLED SurfaceOne
- LED features
with diffusor
- Min. operating voltage
120 V AC
- Max. operating voltage
277 V AC
- Operating voltage
120 - 277 V AC
- Min. colour temperature
4000 K
- Colour temperature (max.)
6500 K
- Luminous flux (Φ)
15640 lm
- Radiation angle
90°
- Connection
Plug
- Protection class
IP40
- RoHS-compliant
Yes
n.rel.
Documents & Downloads
Datasheet
Datasheet 3741715 LED2WORK Light fixture SYSTEMLED SurfaceOne 15640 lm 90 ° Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3741715 LED2WORK Light fixture SYSTEMLED SurfaceOne 15640 lm 90 ° Piece 1 pc(s)
Description

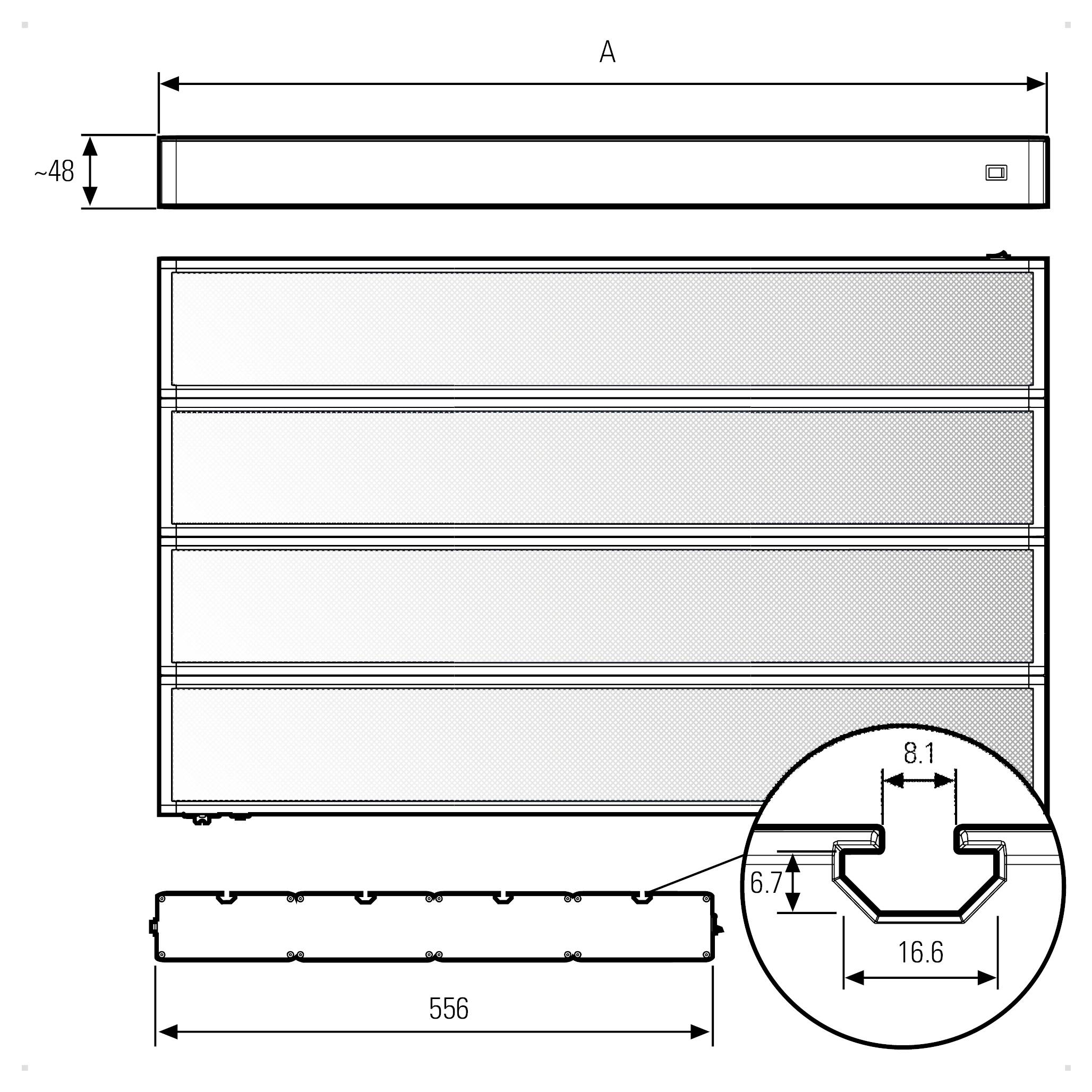

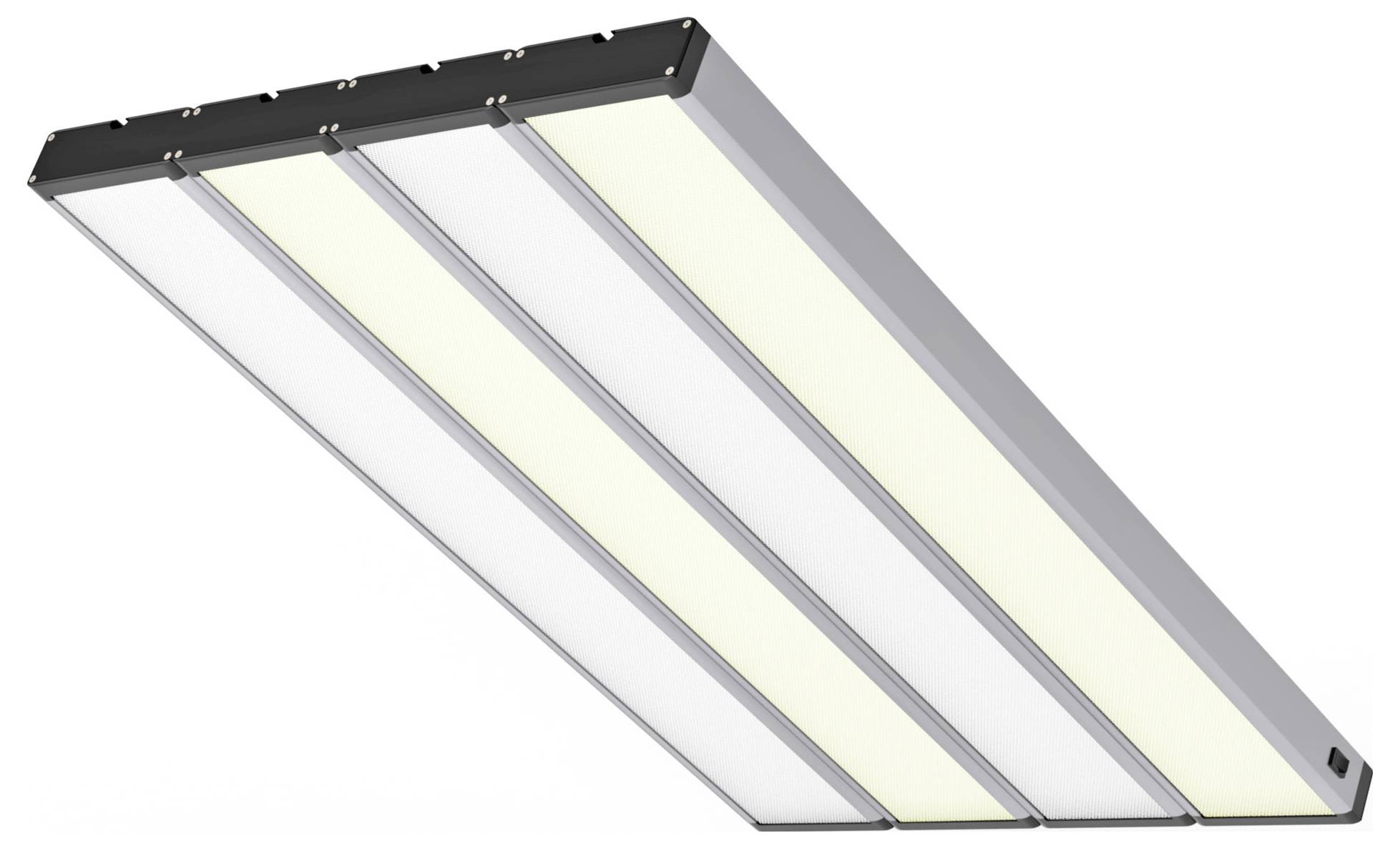

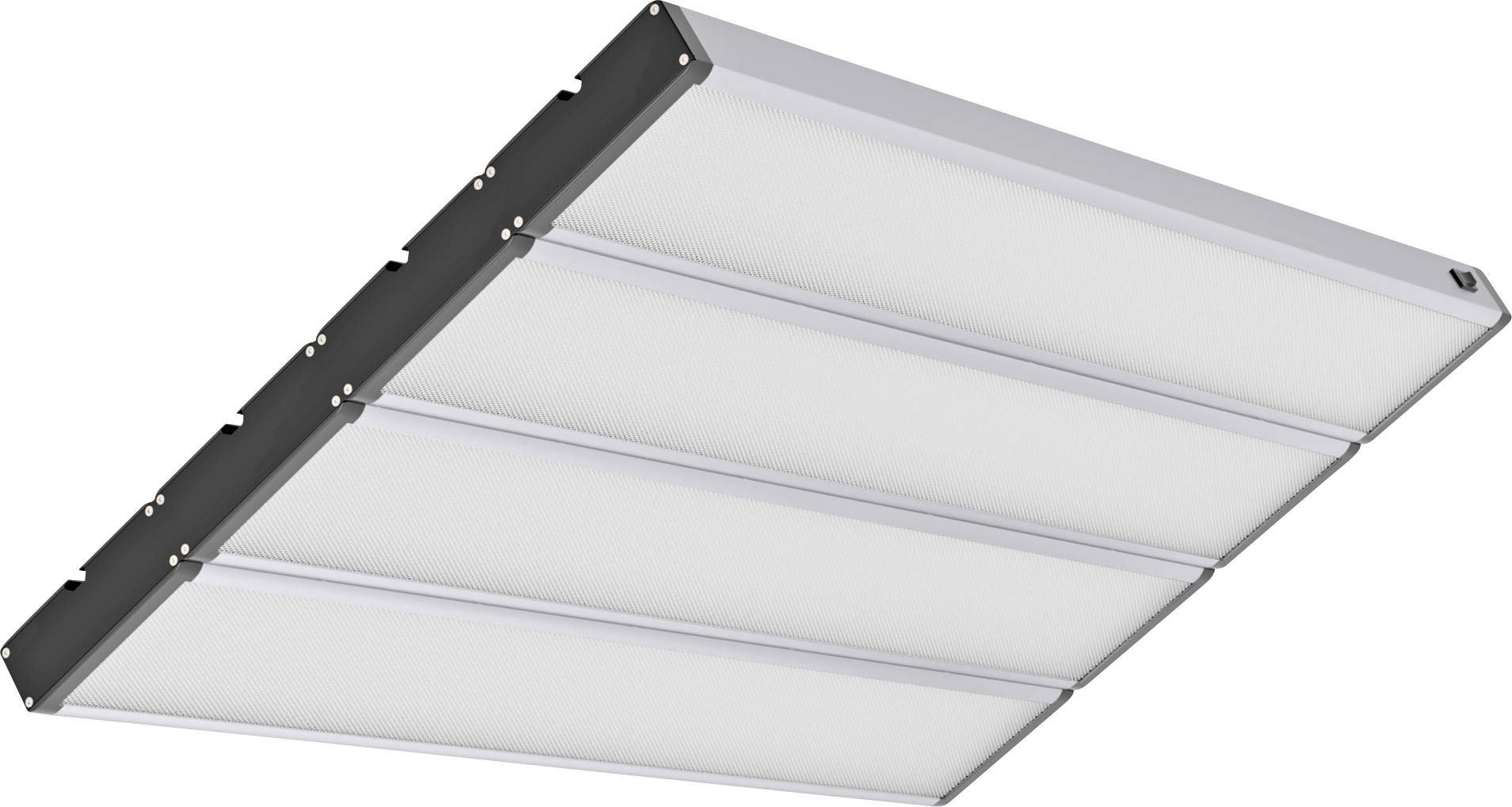

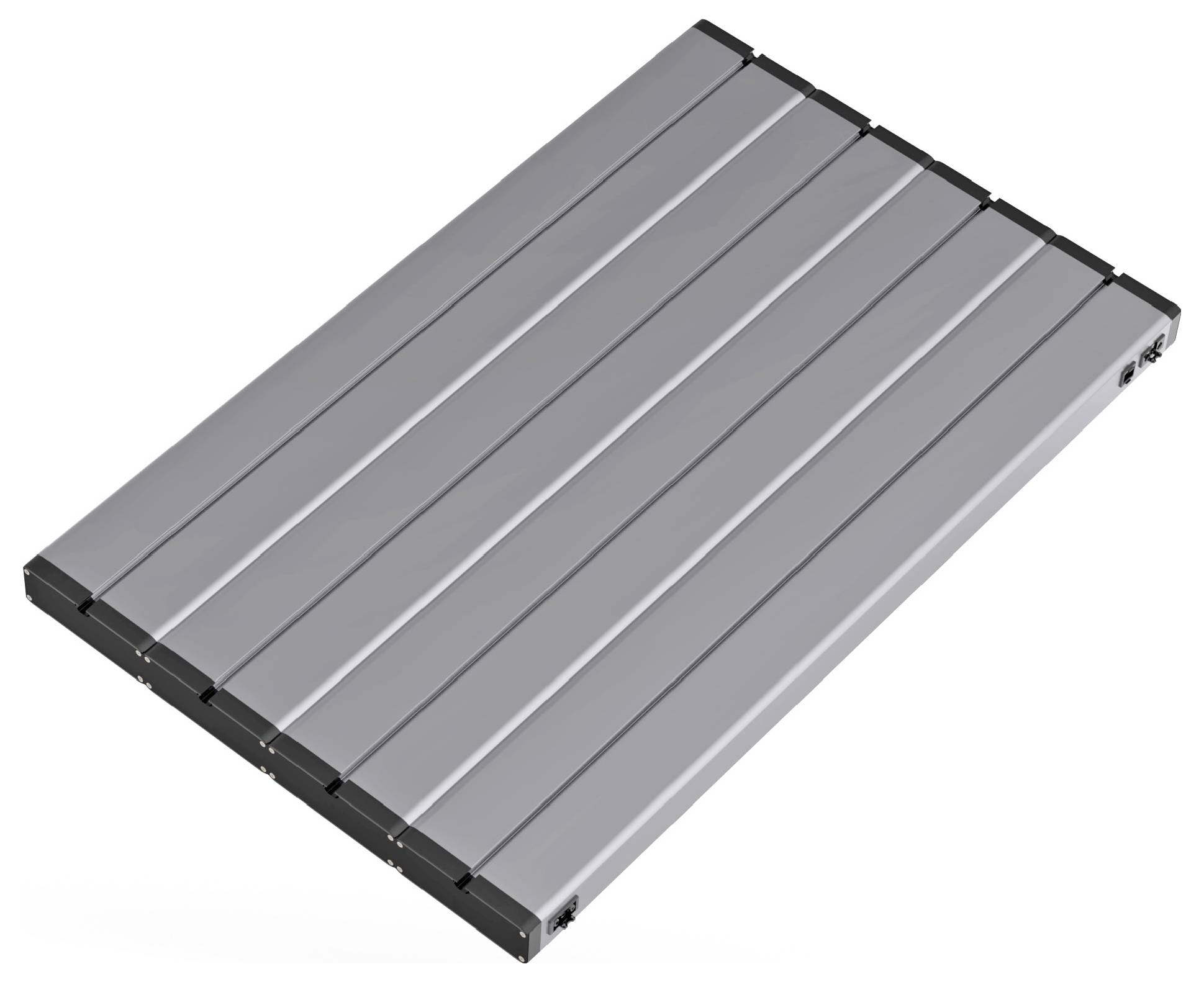

The SYSTEMLED SurfaceOne is a special LED light for testing and mounting areas that meets the requirements of the VDA 16 module and thus provides standardized lighting for visually challenging control tasks. It provides optimum light with color temperatures of 4000 K and 6500 K, which are arranged alternately in the construction of lamps, as well as color reproduction of Ra > 90 for the precise inspection of surfaces and the detection of errors or unevenness. The micro-prism cover ensures even illumination without visible light spots. Thanks to its high light output, excellent color reproduction and low-glare light with a UGR value of less than 22, the SYSTEM LED SurfaceOne allows you to work effortlessly even with long visual inspections. The lamp is available in a four-way or three-way light source and in three different lengths. It is fixed via T-slots on the back side. The lamp is maintenance-free and has a long life span.
