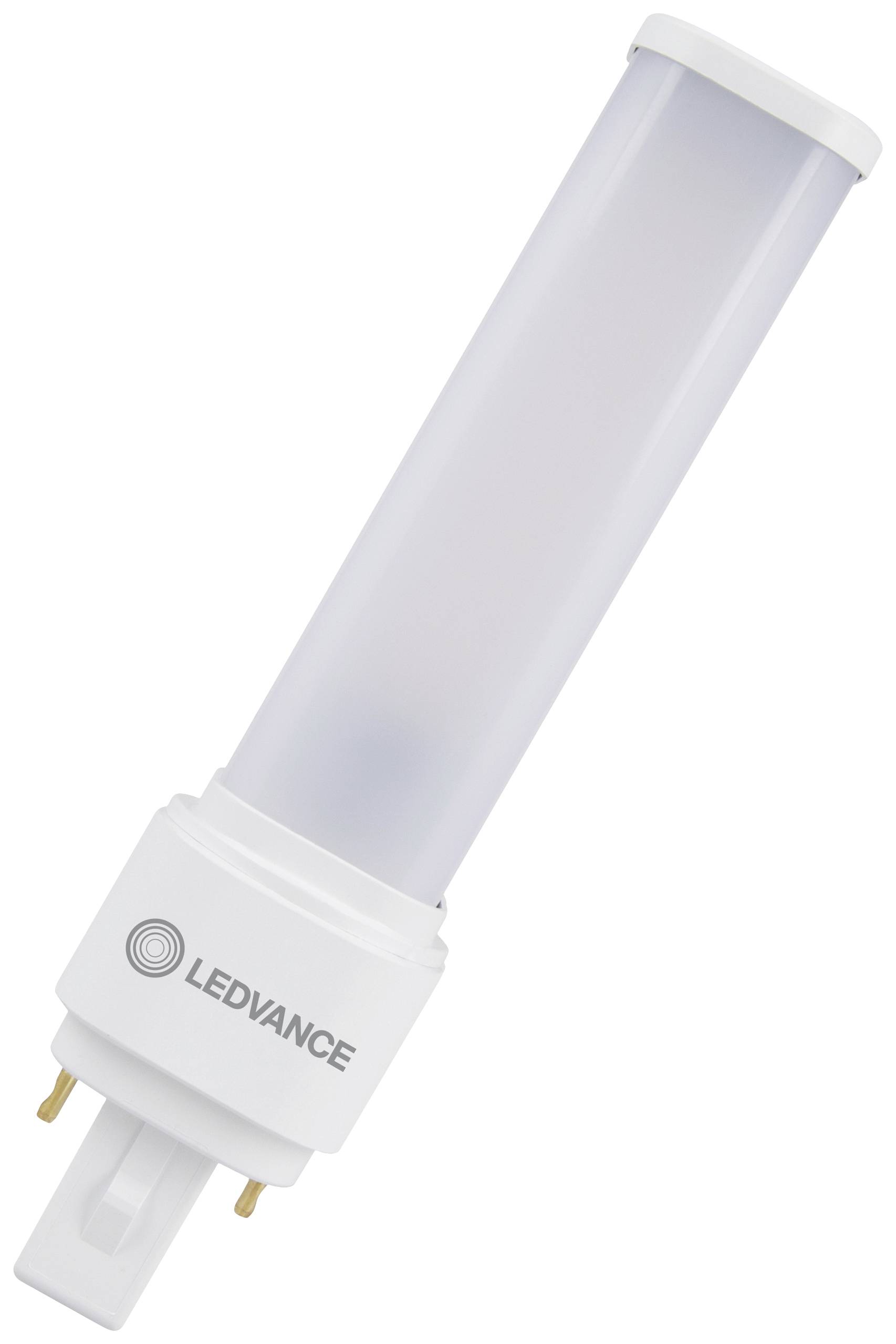

LEDVANCE 140983.LE.00.01 LED (monochrome) EEC E (A - G) G24-d-3, 2-pin Rod shape 9 W = 26 W Cool white (Ø x L) 35 mm x 1
EAN:
Part number:
Item no:
Highlights & Details
LEDVANCE 140983.LE.00.01 LED (monochrome) G24-d-3, 2-pin 9 W = 26 W Cool white Rod shape
- Power= 9 W
- Total luminous flux= 1100 lm
- Colour temperature= 4000 K
- Cool white
Technical specifications
- Product type
LED (monochrome)
G24-d-3, 2-pin
9 W
1100 lm
26 W
- Factory colour
Multicolour
- Version
matte
- Radiation angle
120°
Rod shape
- Colour
Cool white
- ≙ power rating of a light bulb (range)
25 W - 39.9 W
- Light bulb features
not dimmable
4000 K
- Colour temperature range
4000 - 4000 K
No
30000 h
- Circuits
200000
- Operating voltage
220
230
240
- Length
171 mm
- (Ø)
35 mm
- Content
1 pc(s)
E (A - G)
- Energy consumption
9 kWh/1000h
- Dim
(Ø x L) 35 mm x 171 mm
- Operated via
CB
IFTTT
- Colour rendering
840
- Colour consistency (SDCM)
6
- Colour rendering index
80 Ra
- Weight
61
- Power range
7.5 W - 9.9 W
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Total luminous flux
1100 lm
- Material
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2924068 LEDVANCE 140983.LE.00.01 LED (monochrome) EEC E (A - G) G24-d-3, 2-pin Rod shape 9 W = 26 W Cool white (Ø x L) 35 mm x 1
User & Safety Instructions
User & Safety Instructions 2924068 LEDVANCE 140983.LE.00.01 LED (monochrome) EEC E (A - G) G24-d-3, 2-pin Rod shape 9 W = 26 W Cool white (Ø x L) 35 mm x 1
Description
LED replacement for conventional compact fluorescent lamps in conventional ballast lights or from mains voltage. General lighting in ambient temperatures from -20 to +45 °C, such as, for example Supermarkets and department stores, corridors and hallways, hotels, restaurants.
This text is machine translated.
This text is machine translated.
Features
- Easy to set up
- Low energy consumption
- Easy lamp change thanks to compact design
- Operation directly at 230 V mains voltage possible
- Lifecycle up to 50 30000 hrs
- On one side 4-pin plug socket G24d
- Rotating base around its longitudinal axis (± 90 °)
