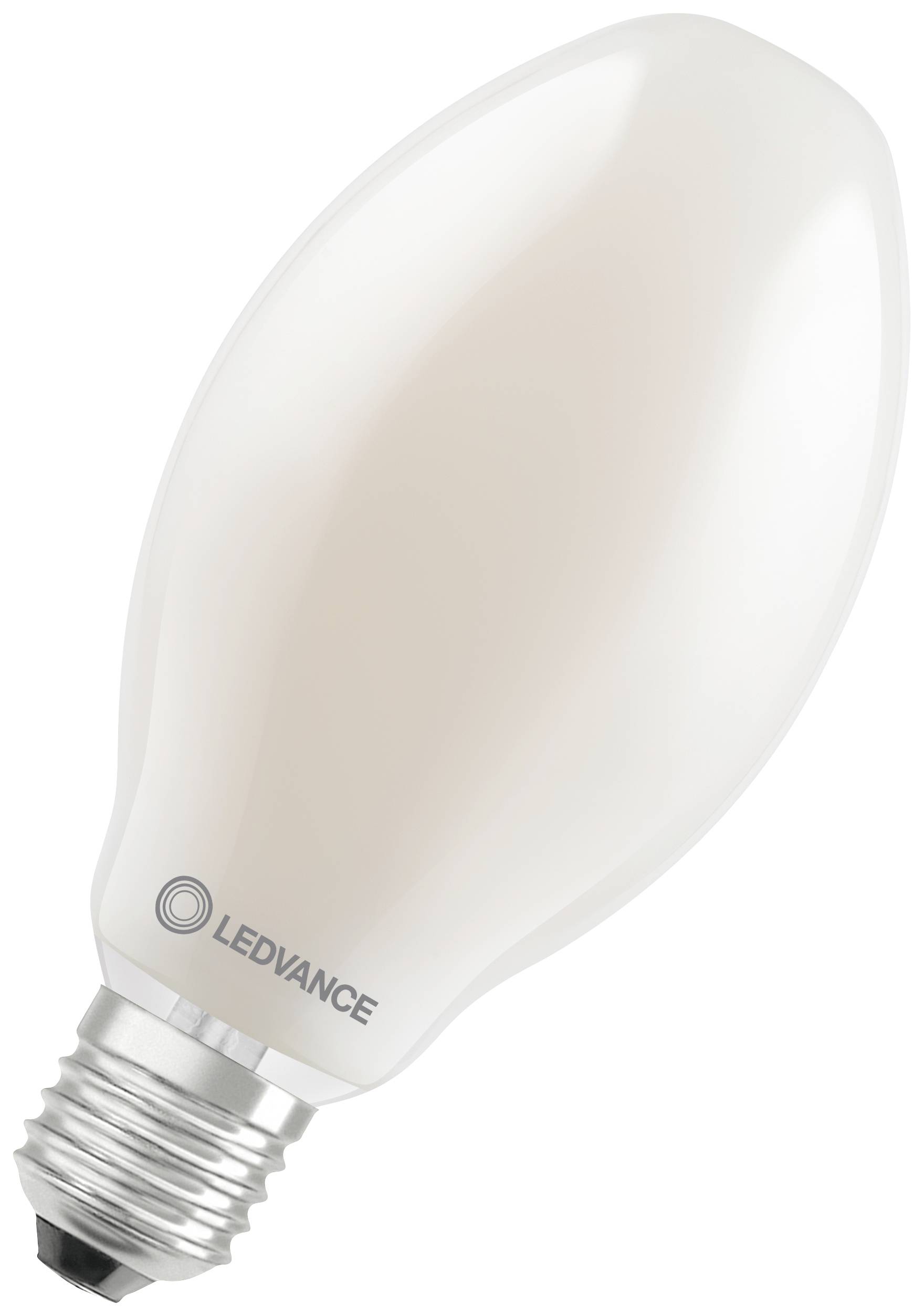

LEDVANCE 146403.LE.00.01 LED (monochrome) EEC D (A - G) E-27 Ellipse 20 W = 80 W Cool white (Ø x H) 75 mm x 151 mm not d
EAN:
Part number:
Item no:
Highlights & Details
LEDVANCE 146403.LE.00.01 LED (monochrome) E-27 20 W = 80 W Cool white Ellipse
- Power= 20 W
- Total luminous flux= 3000 lm
- Colour temperature= 4000 K
- Cool white
Technical specifications
- Product type
LED (monochrome)
E-27
20 W
3000 lm
80 W
- Factory colour
Multicolour
- Version
matte
- Radiation angle
360°
Ellipse
- Colour
Cool white
- ≙ power rating of a light bulb (range)
75 W - 99.9 W
- Light bulb features
not dimmable
4000 K
- Colour temperature range
4000 - 4000 K
No
25000 h
- Circuits
100000
- Operating voltage
230 V
- Length
151 mm
- (Ø)
75 mm
- Content
1 pc(s)
- Height
151 mm
D (A - G)
- Energy consumption
20 kWh/1000h
- Dim
(Ø x H) 75 mm x 151 mm
- Operated via
CB
IFTTT
- Colour consistency (SDCM)
6
- Weight
0.080000 kg
- Power range
20 W - 39.9 W
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Total luminous flux
3000 lm
- Material
Glass
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2924091 LEDVANCE 146403.LE.00.01 LED (monochrome) EEC D (A - G) E-27 Ellipse 20 W = 80 W Cool white (Ø x H) 75 mm x 151 mm not d
User & Safety Instructions
User & Safety Instructions 2924091 LEDVANCE 146403.LE.00.01 LED (monochrome) EEC D (A - G) E-27 Ellipse 20 W = 80 W Cool white (Ø x H) 75 mm x 151 mm not d
Warranty Terms
Warranty Terms 2924091 LEDVANCE 146403.LE.00.01 LED (monochrome) EEC D (A - G) E-27 Ellipse 20 W = 80 W Cool white (Ø x H) 75 mm x 151 mm not d
Description
LED replacement of HQL lamps for design-oriented applications in outdoor lighting.
This text is machine translated.
This text is machine translated.
Features
- The same design as traditional HQL lamps with ellipsoid, matte full-glass pistons
- Complete use of the reflector of the existing lamp thanks to 360 degree radiation angle
- Saves up to 78% energy when used as a replacement for mercury vapor lamps (HQL)
- Instant 100% light, no warm up time
