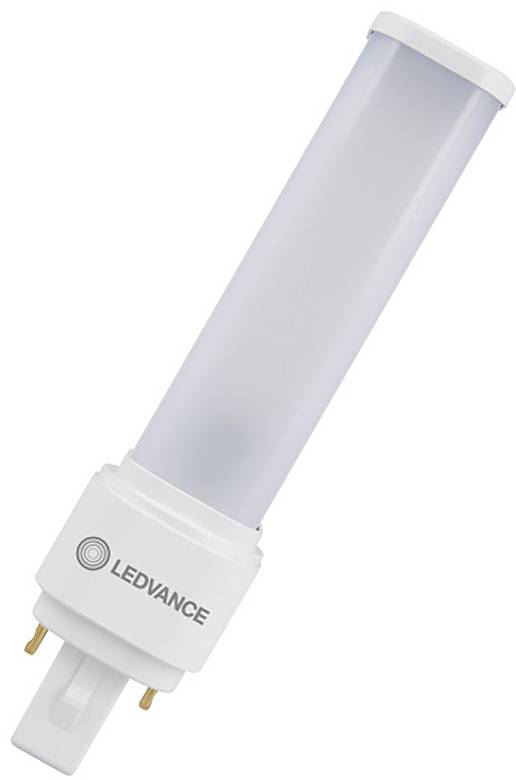

LEDVANCE 4058075823075 LED (monochrome) EEC E (A - G) G24d-1 5 W Neutral white (Ø x H) 35 mm x 40.0000 mm 1 pc(s)
EAN:
Part number:
Item no:
LEDVANCE 4058075823075 LED (monochrome) G24d-1 5 W Neutral white
Highlights & Details
- Power= 5 W
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED (monochrome)
G24d-1
5 W
600 lm
- Colour
Neutral white
4000 K
- Colour temperature range
4000 K
No
30000 h
- Operating voltage
220 V
- Length
110 mm
- (Ø)
35 mm
- Content
1 pc(s)
- Height
40.0000 mm
E (A - G)
- Dim
(Ø x H) 35 mm x 40.0000 mm
- Weight
0.0500
- Power range
5 W - 7.4 W
- Depth
110.0000 mm
- Width
40.0000 mm
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3793942 LEDVANCE 4058075823075 LED (monochrome) EEC E (A - G) G24d-1 5 W Neutral white (Ø x H) 35 mm x 40.0000 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3793942 LEDVANCE 4058075823075 LED (monochrome) EEC E (A - G) G24d-1 5 W Neutral white (Ø x H) 35 mm x 40.0000 mm 1 pc(s)
User & Safety Instructions 3793942 LEDVANCE 4058075823075 LED (monochrome) EEC E (A - G) G24d-1 5 W Neutral white (Ø x H) 35 mm x 40.0000 mm 1 pc(s)
Description
LED replacement for KLLni with 2-pole G24d Socket for use with a KVG/VVG and mains voltage. LED replacement for conventional compact fluorescent lamps in conventional ballast lights or mains voltage. Durability up to 30,000 h. Swivel base around its longitudinal axis (± 90 °). On one side 2-pin plug socket G24d. Protection class: IP20 Mercury-free lamps Product benefits: Easy installation. Low power consumption Easy lamp change thanks to compact design. Operation directly at 230 V mains voltage possible. Application areas: General lighting in ambient temperatures from -20.+45 °C. Supermarkets and department stores. Hallways and hallways. Hotels, restaurants. Safety instructions: Not suitable for tandem operation. The operating temperature range of the DULUX LED is limited. If you are in doubt about the suitability of the application, please measure the TC temperature on the product before installation. All electrical connections must be made by qualified personnel only. Do not touch the lamp with bare fingers. Operation with defective external piston not permitted. Lamp is not suitable for emergency lighting operation.
This text is machine translated.
This text is machine translated.
