Buy LEDVANCE 4099854014413 4099854014413 LED panel LED (monochrome) Built-in LED 28 W, 25 W, 22 W White

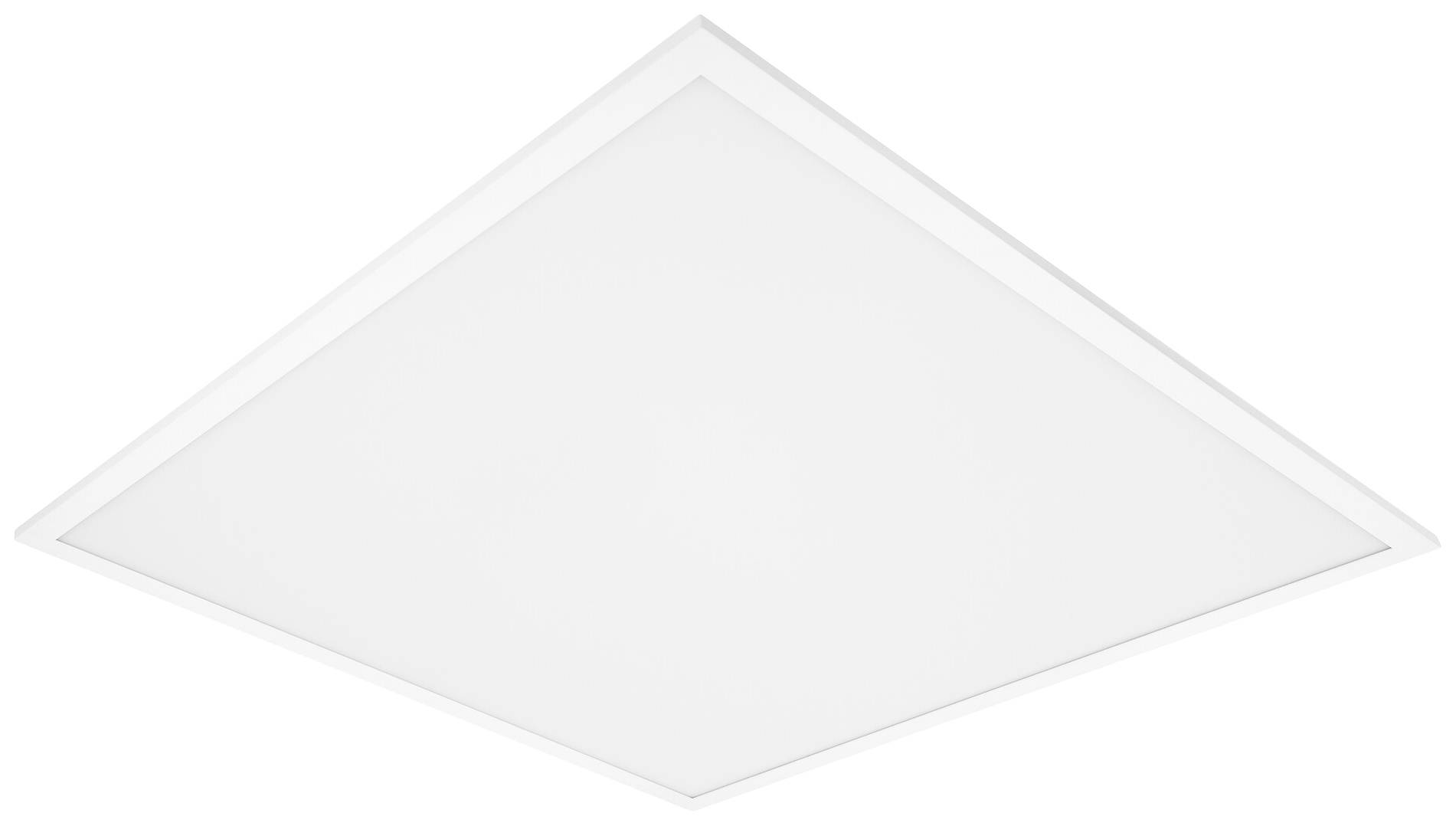

A square, white LED panel for ceiling mounting, ideal for uniform room illumination.

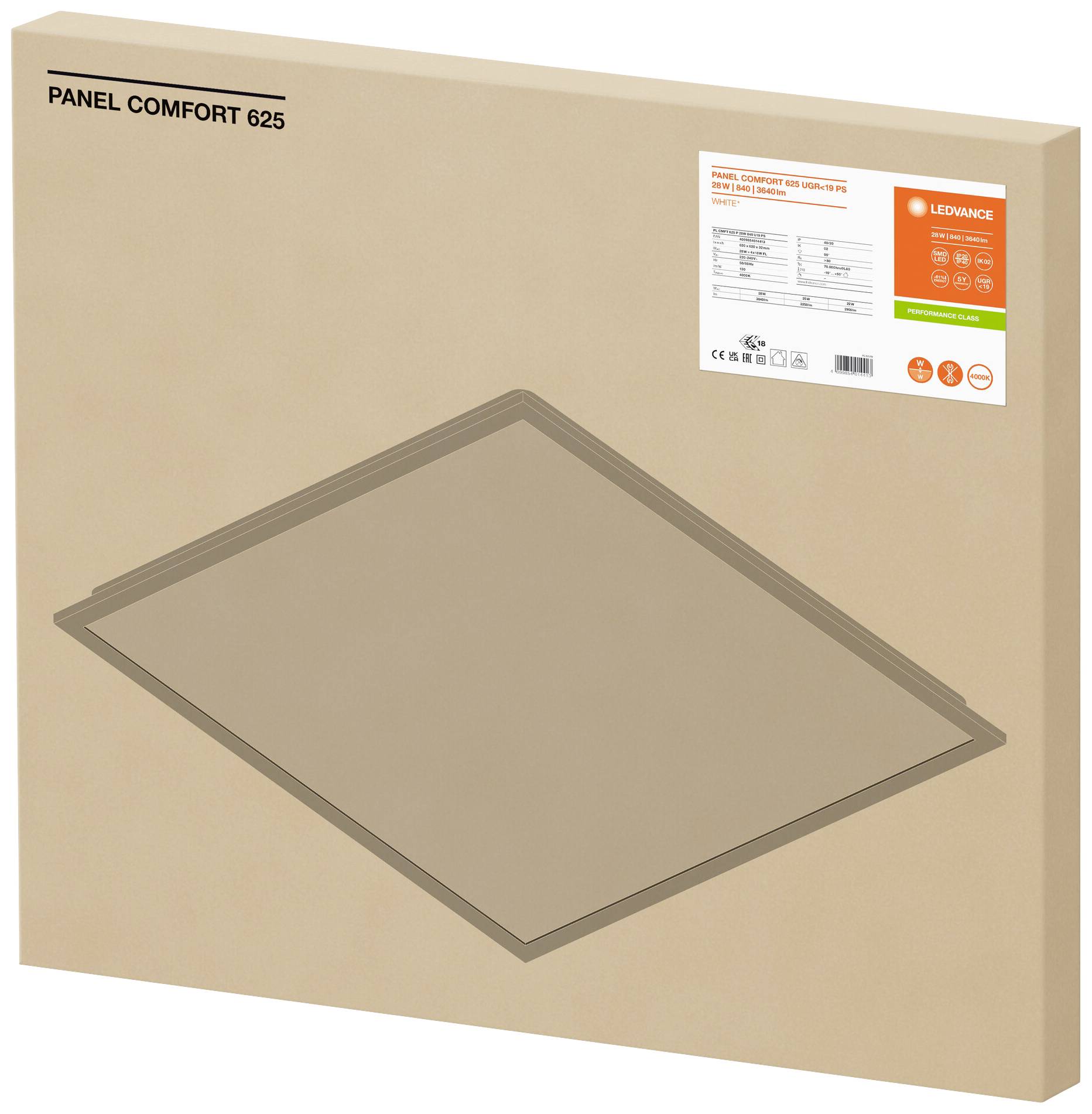

Cardboard packaging with the inscription 'PANEL COMFORT 625' and an image of the interior product. A label with technical information is located in the top right corner.

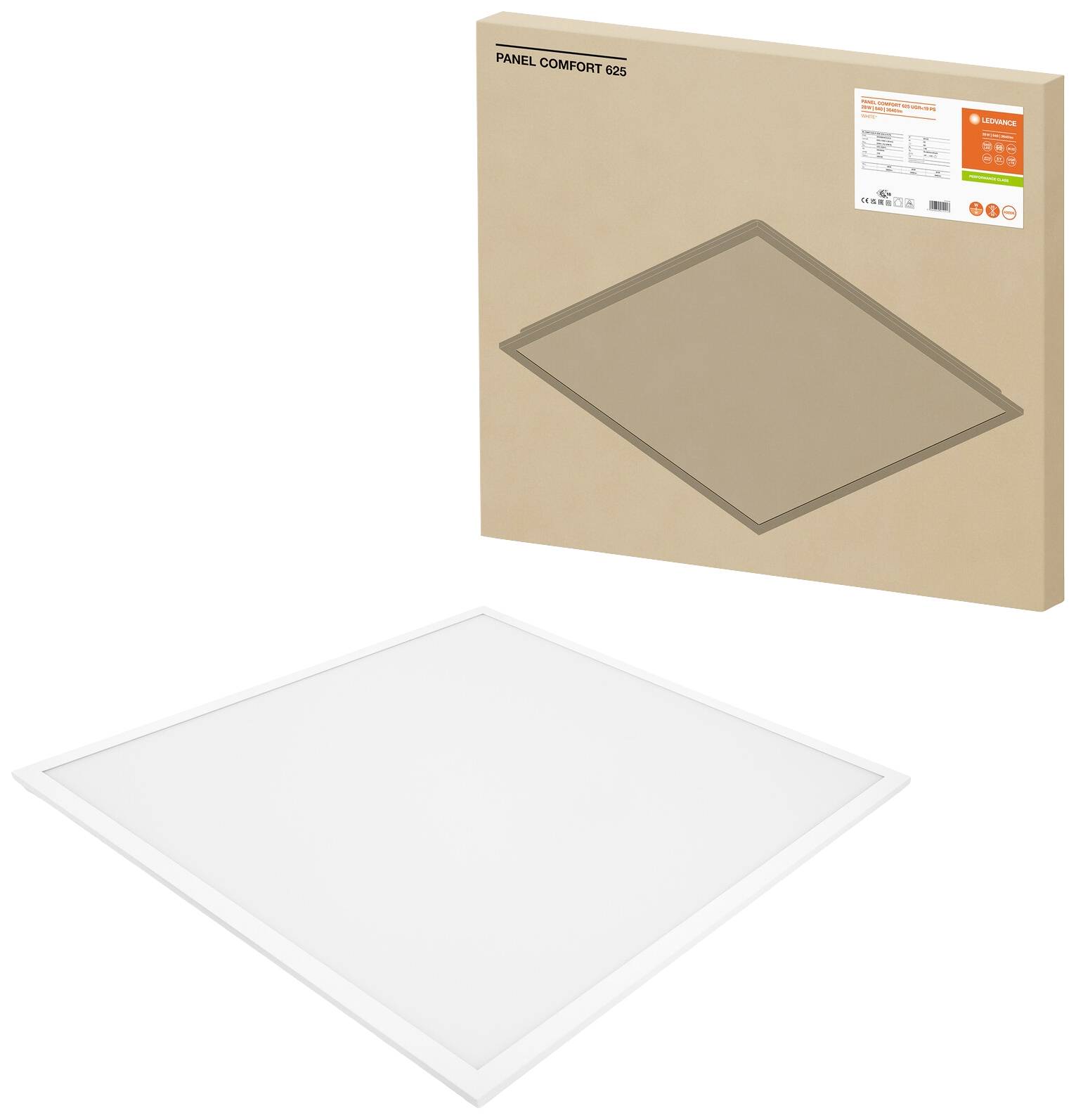

A square LED panel light is displayed in front of its packaging. The packaging shows a stylised image of the light and product specifications.

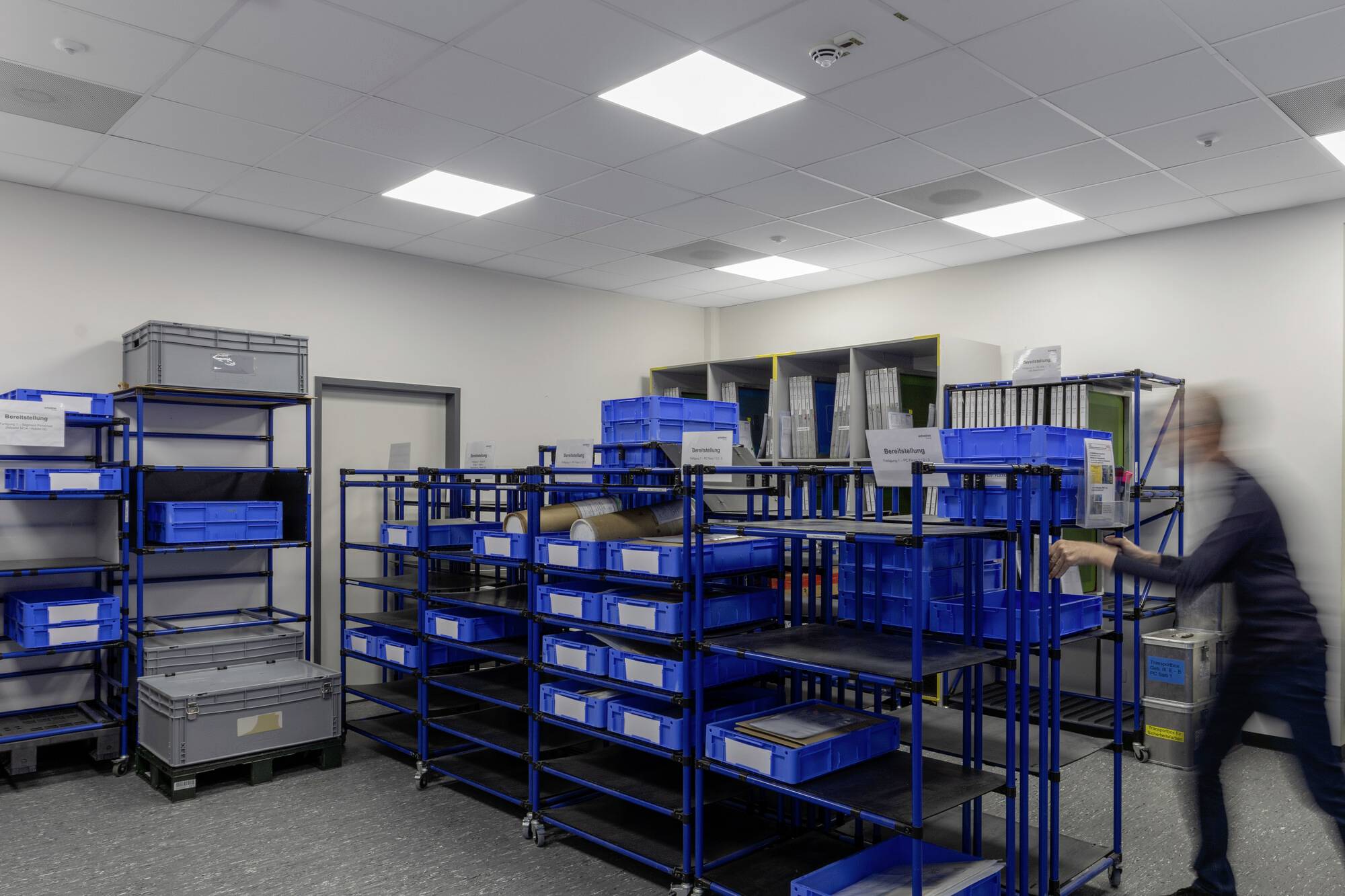

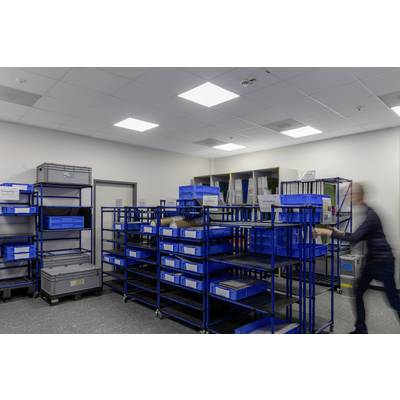

A blurry figure assembles shelves with blue plastic boxes in a storage room, surrounded by additional shelving and crates.

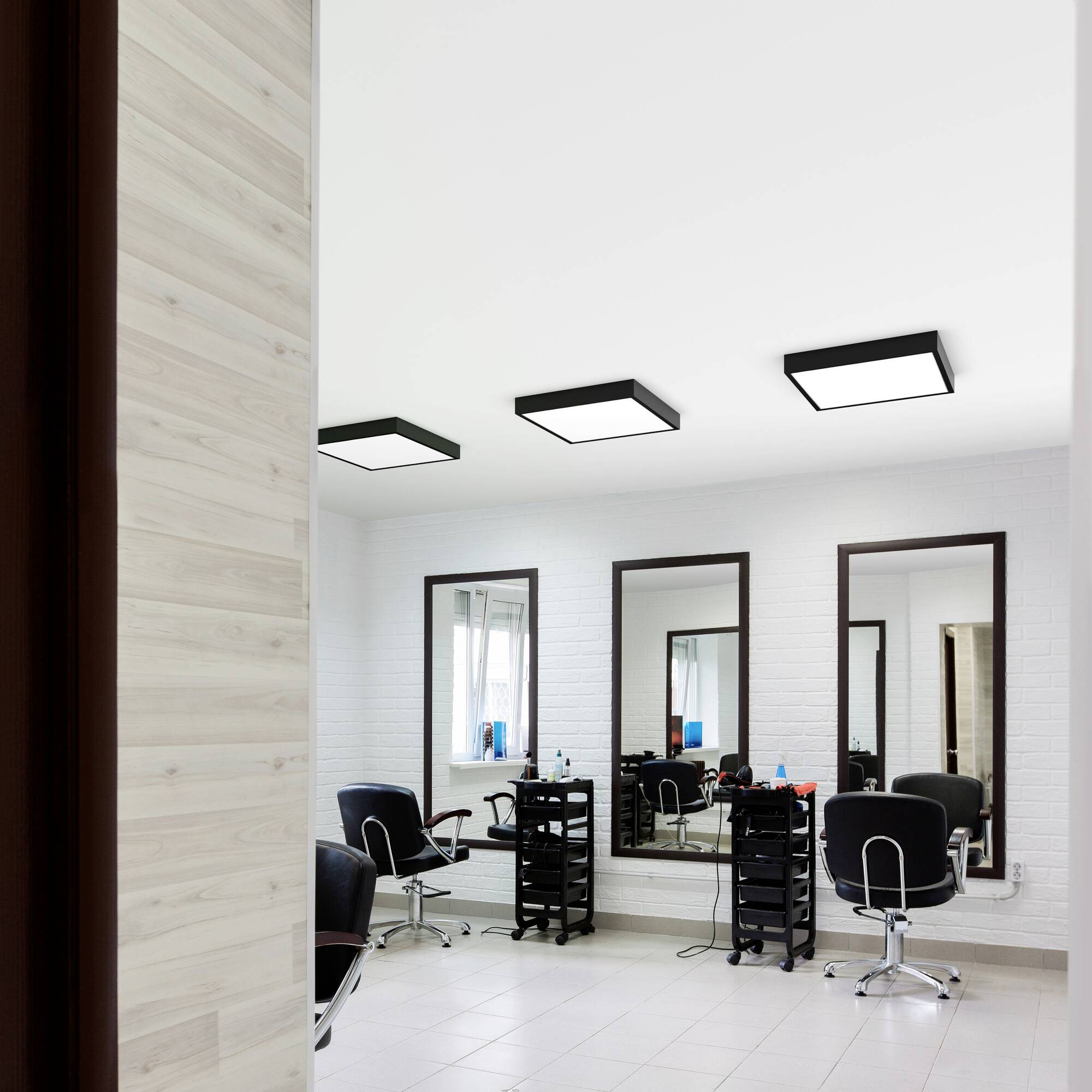

Hairdressing salon with empty chairs in front of large mirrors and a bright, modern design.

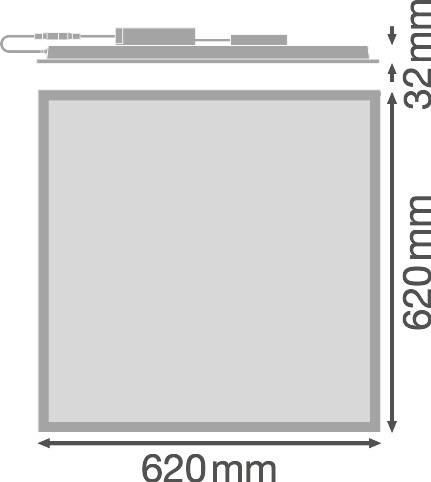

Figure shows a square with dimensions of 620 mm x 620 mm and a thickness of 32 mm.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

Report legal concerns

Highlights & Details

PL CMFT 625 P 28W 840 U19 PS

Power= 28 W, 25 W, 22 W Total luminous flux= 3640 lm Colour temperature= 4000 K Cool white

Technical specifications

Product type: LED panel

Operating voltage: 230 V

No. of bulbs: 1

: Built-in LED

Bulb type: LED (monochrome)

Rating per bulb: 28 W

: 28 W
25 W
22 W

: 3640 lm

Total luminous flux: 3640 lm

: 4000 K

Colour: Cool white

Type: Square

Light features: Selectable luminous flux

Recess length: 625 mm

Recess width: 625 mm

: IP40
IP20

Protection class: II

Factory colour: White

Material: Steel

Weight: 1970 g

: n.rel.

Dim: (L x W x H) 620 x 620 x 32 mm

: No

Light bulb included: Yes

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 620 mm

Height: 32 mm

Length: 620 mm

Depth: 32 mm

Colour rendering index: 80-89

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3045854 LEDVANCE 4099854014413 4099854014413 LED panel LED (monochrome) Built-in LED 28 W, 25 W, 22 W White

User & Safety Instructions

User & Safety Instructions 3045854 LEDVANCE 4099854014413 4099854014413 LED panel LED (monochrome) Built-in LED 28 W, 25 W, 22 W White

Description

Square insertion lights with selectable watttage setting (Power select - PS) and strong glare, for 625 x 625 mm ceiling systems

This text is machine translated.

Features

Square insertion lights with selectable watttage setting (Power select - PS) and strong glare, for 625 x 625 mm ceiling systems
Frame made of extruded aluminum
Polystyrene diffuser
5-pole terminal, cable cross-section up to 5 x 2.5 mm²
Lamp versions available with IoT-enabled DALI-2 driver
Versions available with CRI 90
L80/B10): 70,000 h (at 25 °C)
Very versatile by a cotton setting can be selected at the driver (Power select - PS)
Easy electrical connection thanks to push-button connection terminal
Through-wiring possible with contained junction box
Energy savings thanks to high system light yield: Up to 130 lm/W.
Good glare
High color consistency with SDCM 3
Advanced services such as power monitoring and remote maintenance possible with DALI versions
External driver for advanced flexibility and easy installation
Low flicker light thanks to special electronic ballast
Safety lighting possible with LEDVANCE emergency conversion box
Range of applications: Direct replacement for insertion lamps with fluorescent lamps, office space, conference rooms, reception areas, entrance area, Corridors, lifts
Suitable for ceiling installation systems with a grid pitch of 625 x 625 mm
Accessories for different installation options available
Connection box with 5-pin connection terminal included
Pre-assembled safety clips
External ballast included
Suitable for operation with Emergency Conversion Box.

Scope of delivery

LED
User manual.
