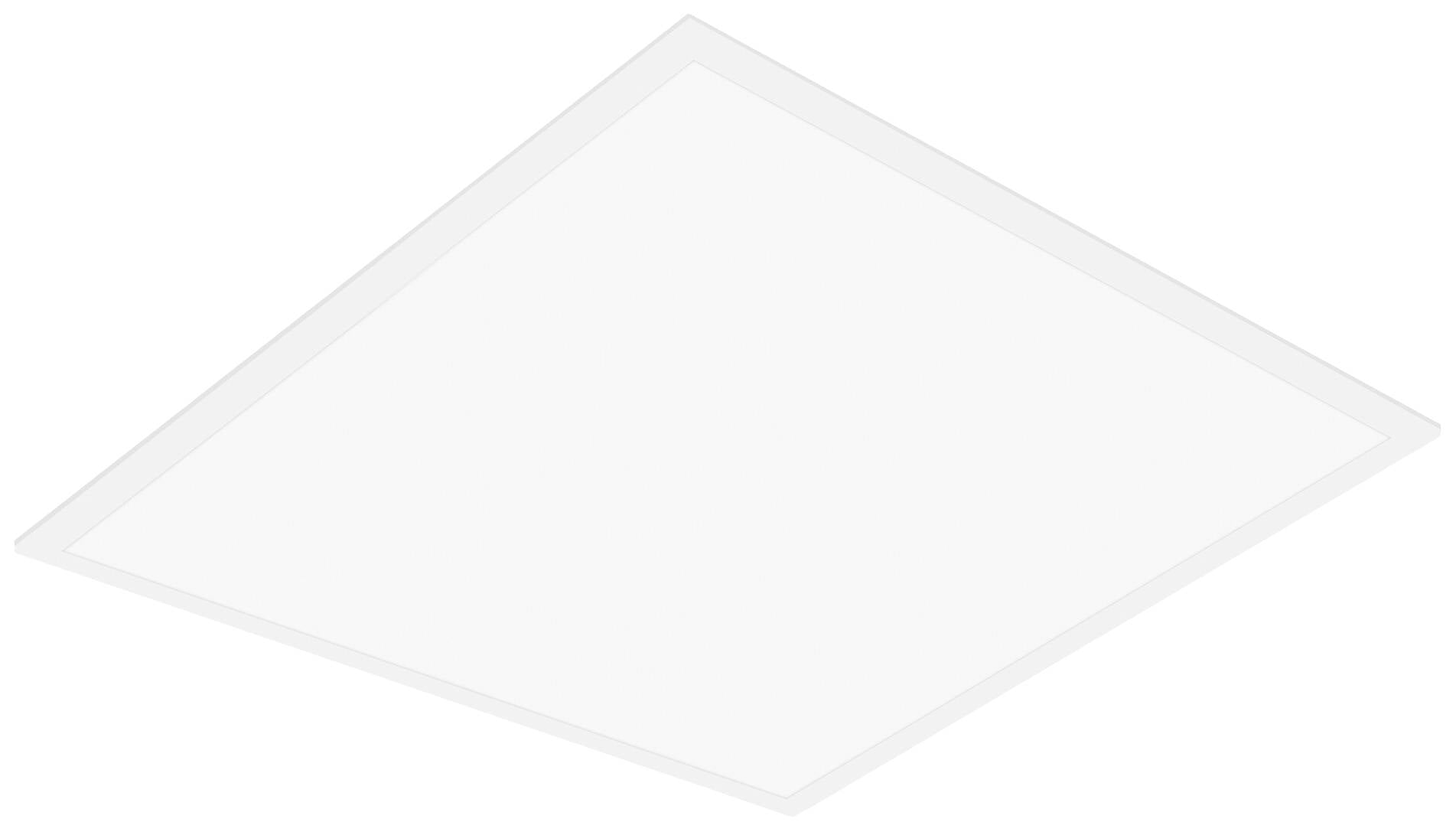

LEDVANCE 4099854017469 4099854017469 LED panel 33 W Neutral white White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PL COMP 625 V 33W 840 U19
- Power= 33 W
- Total luminous flux= 3630 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED panel
- Type
Square
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
33 W
33 W
4000 K
- Colour
Neutral white
3630 lm
- Total luminous flux
3630 lm
- Radiation angle
90°
- Protection class
II
IP40
IP20
- Factory colour
White
- Material
Aluminium
- Weight
1800 g
- Width
620 mm
- Height
32 mm
- Length
620 mm
n.rel.
No
- Light bulb included
Yes
- Colour rendering index
80-89
- Depth
32 mm
Documents & Downloads
Datasheet
Datasheet 2825621 LEDVANCE 4099854017469 4099854017469 LED panel 33 W Neutral white White
User & Safety Instructions
User & Safety Instructions 2825621 LEDVANCE 4099854017469 4099854017469 LED panel 33 W Neutral white White
Warranty Terms
Warranty Terms 2825621 LEDVANCE 4099854017469 4099854017469 LED panel 33 W Neutral white White
Description
Square insertion lights with strong suppression, for 625 x 625 mm ceiling systems. Frame made of extruded aluminum. Polystyrene diffuser. Life (L80/B10): Up to 50,000 h (at 25 °C). Good glare (UGR less than 19). Low flicker light thanks to special electronic ballast. Energy saving thanks to system light yield of up to 110 lm/W. External driver for advanced flexibility and easy installation. Versions available with DALI EVG. Direct replacement for lamps with fluorescent lamps. Offices, conference rooms. Reception areas, entrance areas, corridors, lifts. Suitable for ceiling installation systems with a grid pitch of 625 x 625 mm. Accessories for different installation options available. Pre-assembled safety clips. External ballast included. Suitable for operation with Emergency Conversion Box. Connection box with 5-pole terminal for through-wiring for cable cross-sections up to 2.5 mm² available separately.
This text is machine translated.
This text is machine translated.
Features
- Square insertion lights with strong suppression, for 625 x 625 mm ceiling systemsFrame made of extruded aluminumPolystyrene diffuserLife (L80/B10): Up to 50,000 h (at 25 °C)Good glare (UGR less than 19)Low flicker light thanks to special electronic ballastEnergy savings thanks to system light yield of up to 110 lm/W.External driver for advanced flexibility and easy installationVersions available with DALI EVGDirect replacement for lamps with fluorescent lampsOffices, conference roomsReception areas, entrance areas, corridors, liftsSuitable for ceiling installation systems with a grid pitch of 625 x 625 mmAccessories for different installation options availablePre-assembled safety clipsExternal ballast includedSuitable for operation with Emergency Conversion BoxConnection box with 5-pole terminal for through-wiring for cable cross-sections up to 2.5 mm² available separately.
Scope of delivery

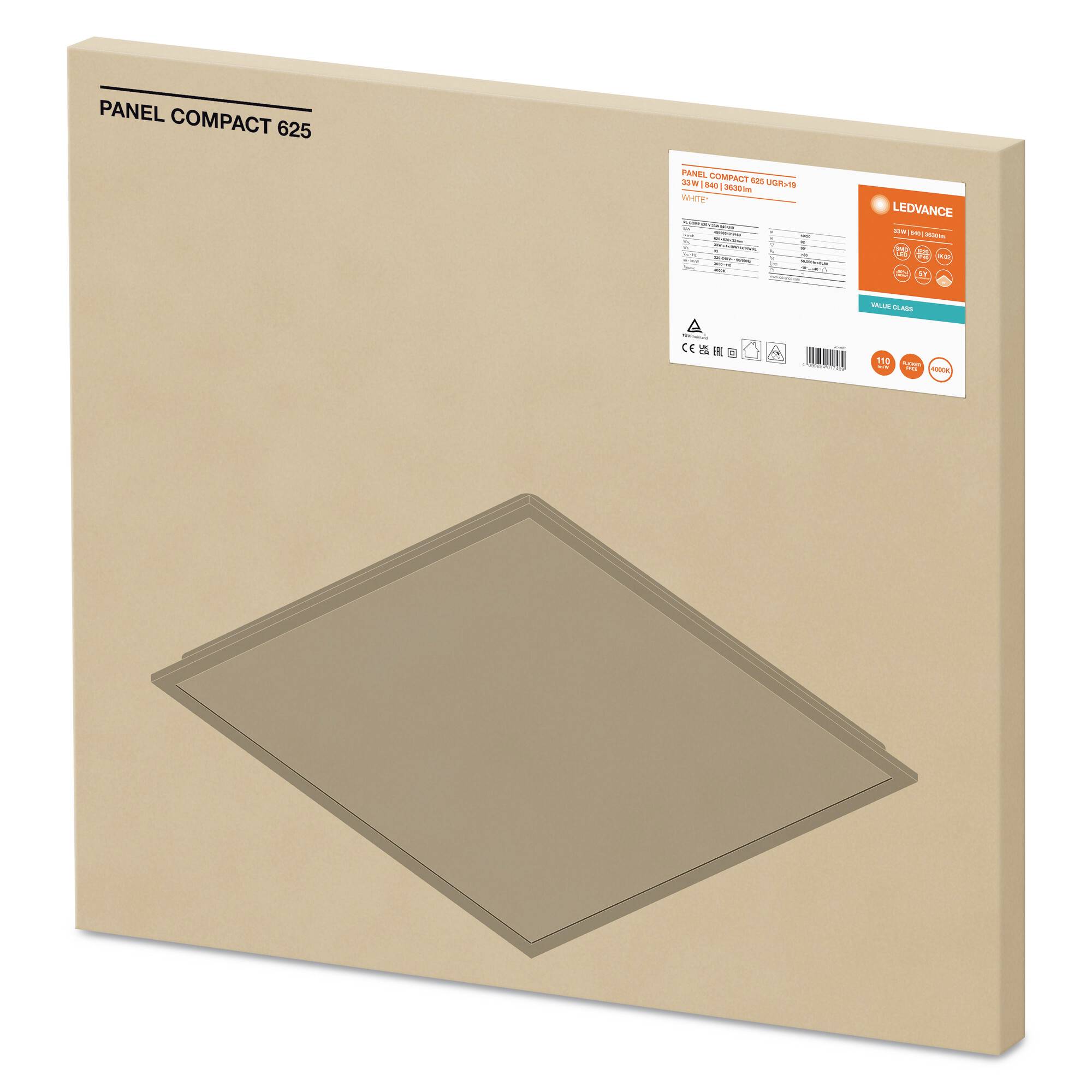

- PANEL COMPACT 625 UGR 19 33W 840 U19
- User manual.
