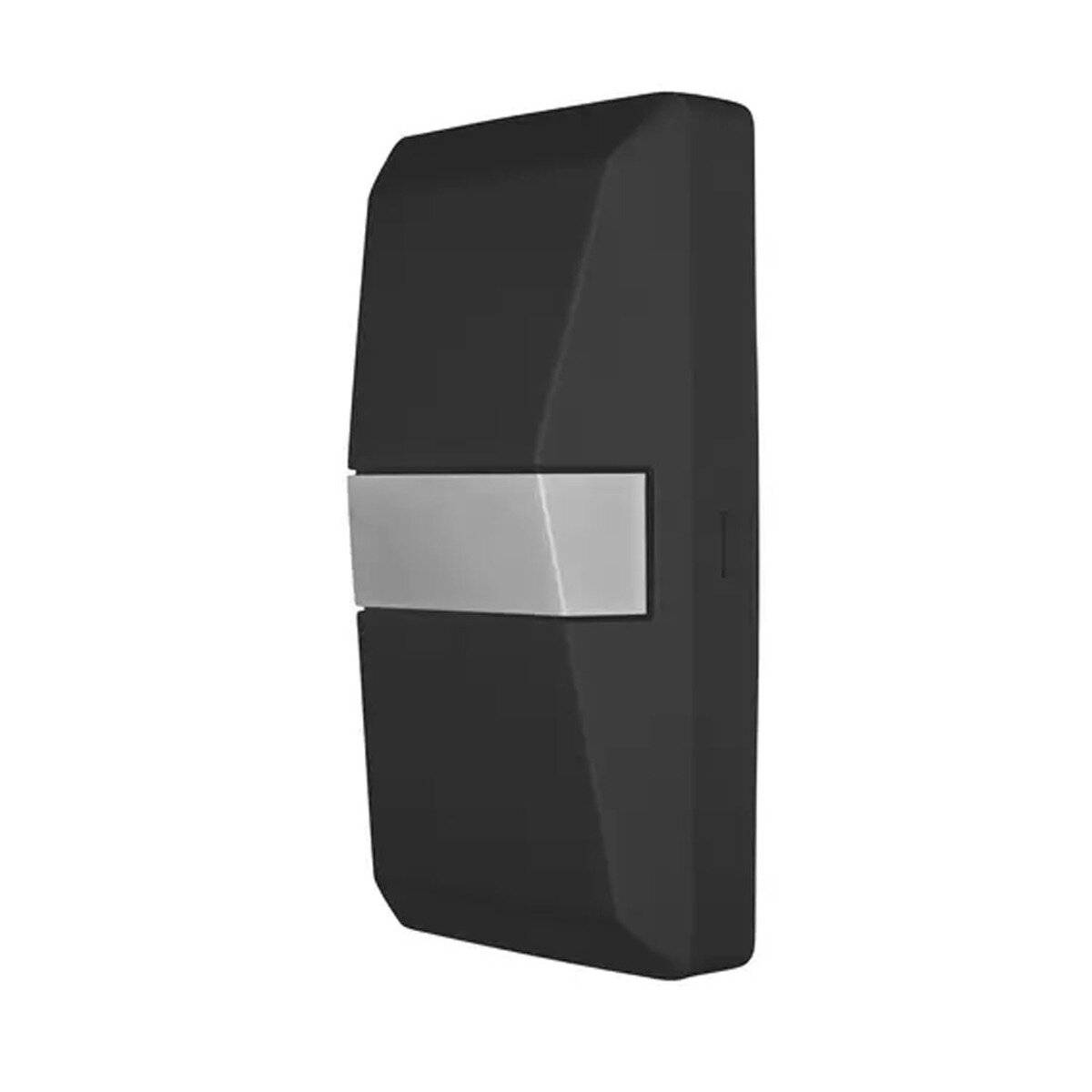

A black, rectangular device with a silver strip in the middle, possibly a reader or sensor.

'LED Powerbase' packaging displays operating mode instructions, technological symbols, and certifications for consumers.

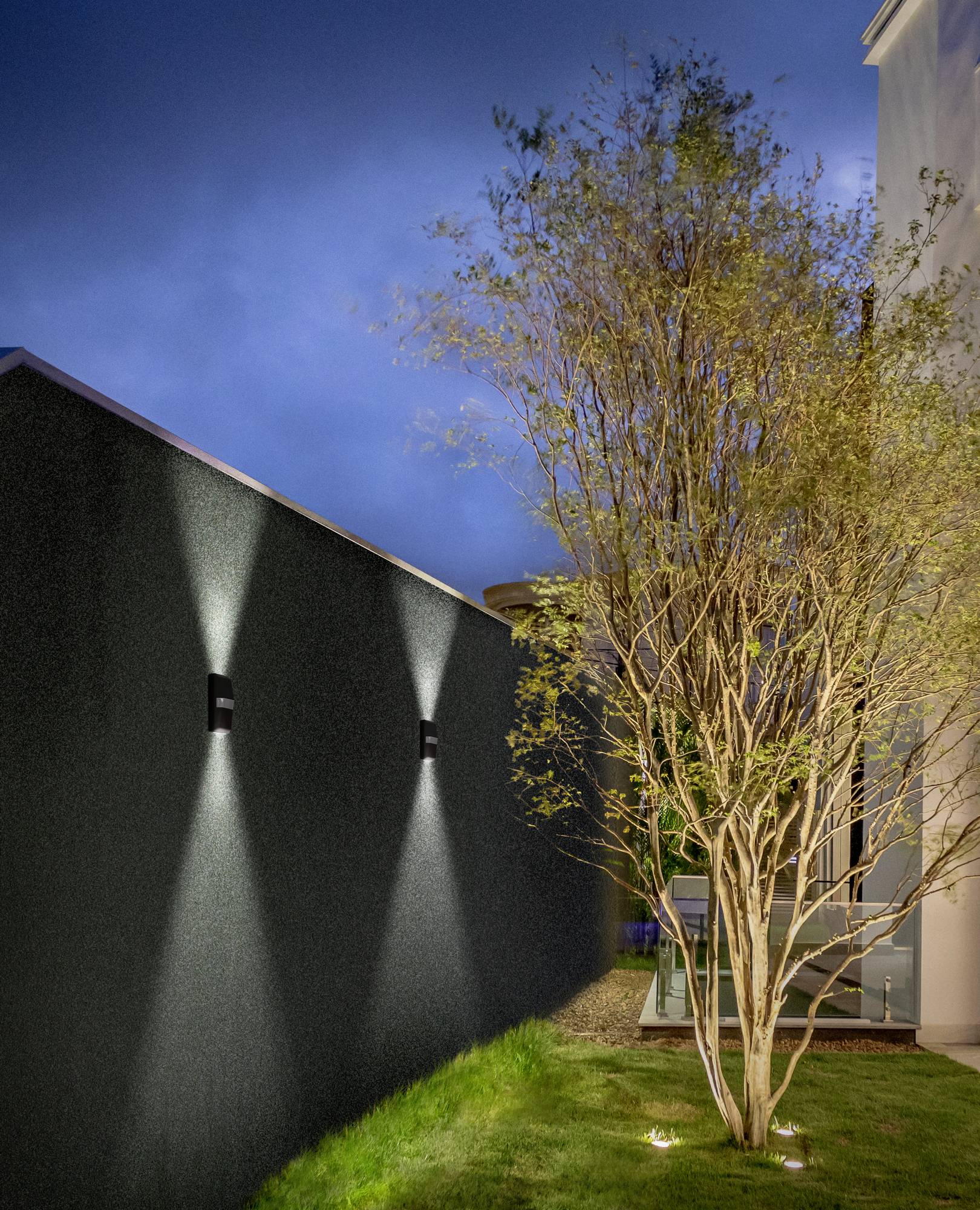

Rear view of a modern garden at night with atmospheric wall lighting and a tree on the right side of the image.

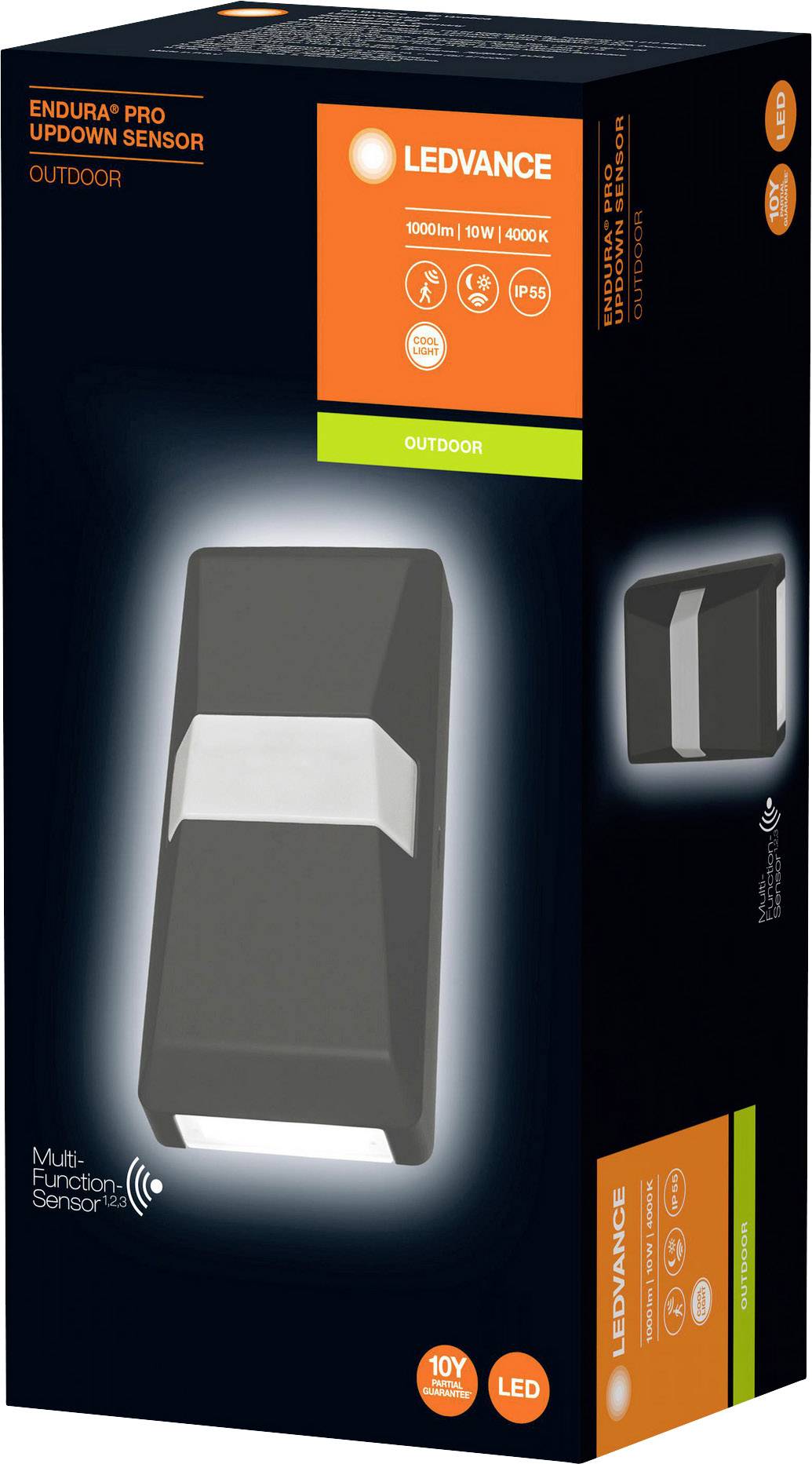

Black LED light by Ledvance in packaging. Product name 'Endura Pro Updown Sensor', suitable for outdoor use.

LEDVANCE E PRO UPDOWN S 10W 840 IP55 DG LEDV 4058075228962 Wall light (+ motion detector) LED (monochrome) LED 10 W Blac-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

ENDURA® PER UPDOWN SENSOR 10 W 1000 840 IP55 DG

Power= 10 W Total luminous flux= 1000 lm Colour temperature= 4000 K Cool white

Technical specifications

Product type: Wall light (+ motion detector)

Type: Rectangular

Operating voltage: 230 V

Bulb type: LED (monochrome)

: LED

Rating per bulb: 10 W

: 10 W

: 4000 K

Colour: Cool white

: 1000 lm

Total luminous flux: 1000 lm

PIR detection angle (horizontal): 180°

Vertical detection angle: 180°

Coverage max. (width): 12 m

Adjustable on-time (max.): 15 min

Protection class: II

: IP55

Factory colour: Black

Material: Polycarbonate (PC)

Weight: 312 g

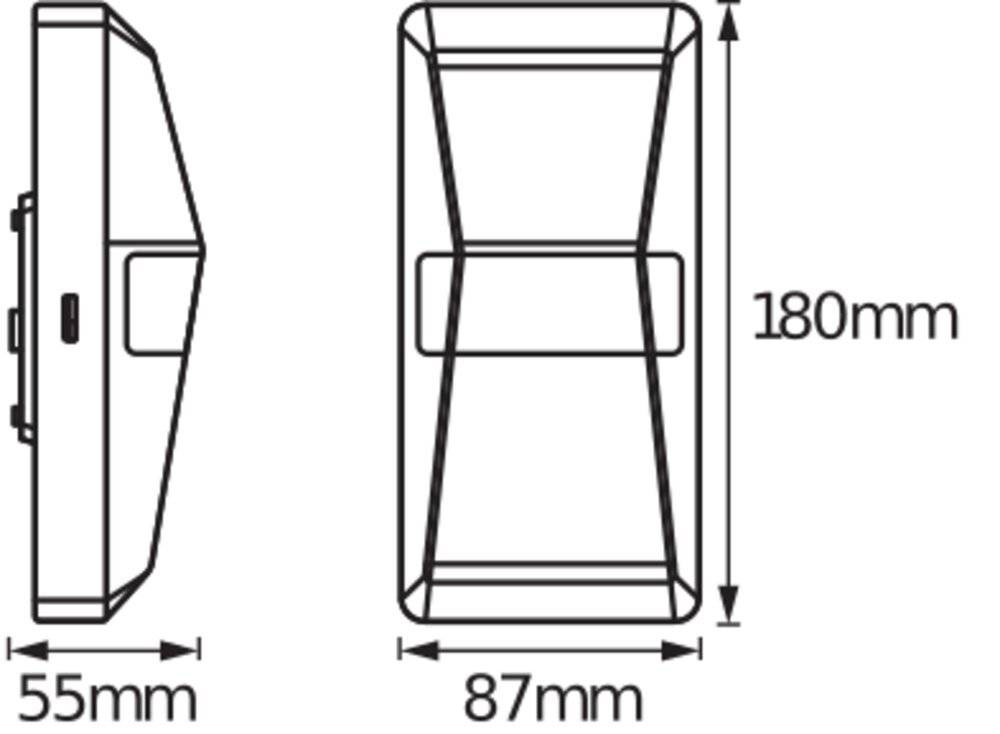

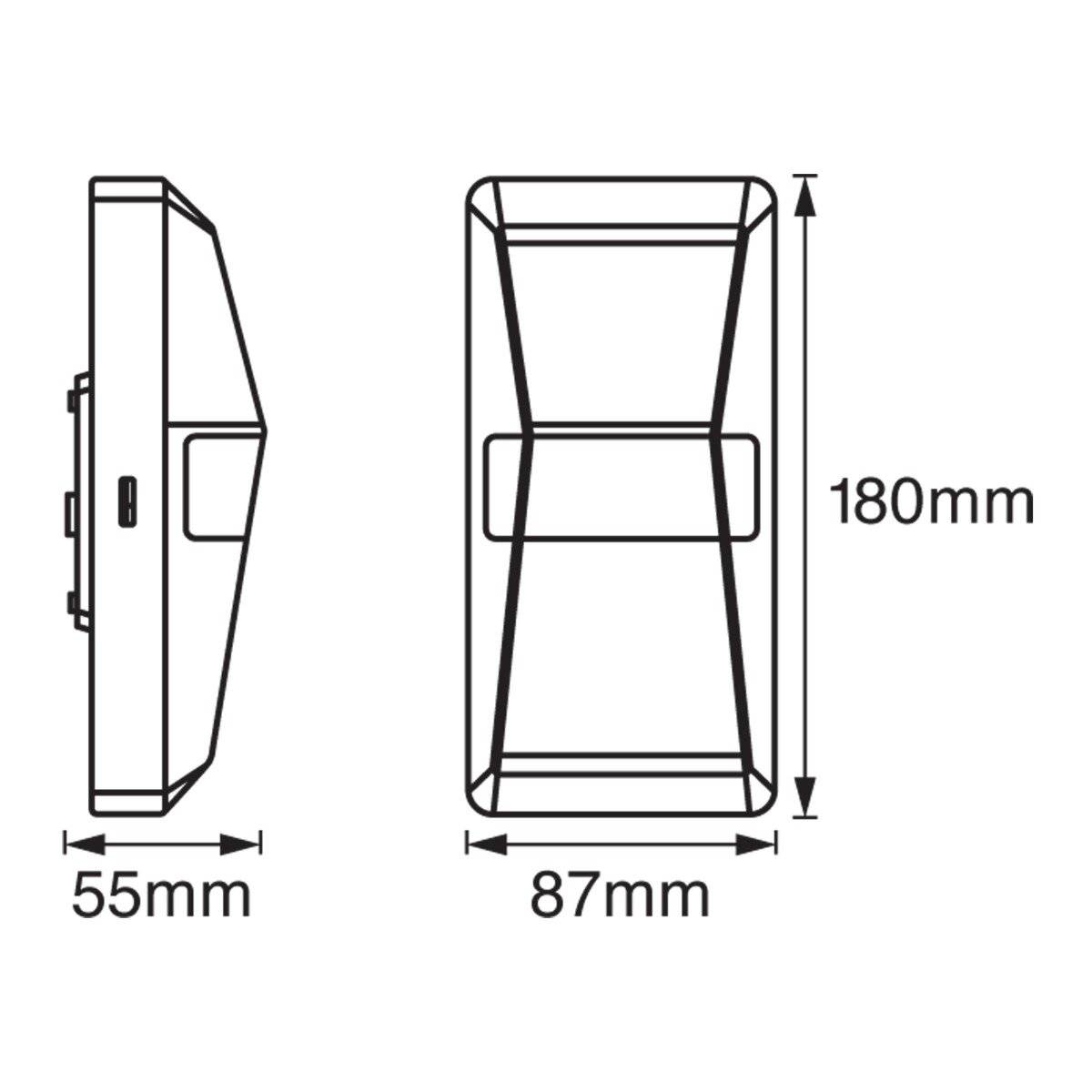

Dim: (W x H x D) 87 x 180 x 55 mm

: n.rel.

Light bulb included: Yes

Width: 87 mm

Height: 180 mm

Depth: 55 mm

Colour rendering index: 80-89

: No

Radiation angle: 50°

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2306615 LEDVANCE E PRO UPDOWN S 10W 840 IP55 DG LEDV 4058075228962 Wall light (+ motion detector) LED (monochrome) LED 10 W Blac

User & Safety Instructions

User & Safety Instructions 2306615 LEDVANCE E PRO UPDOWN S 10W 840 IP55 DG LEDV 4058075228962 Wall light (+ motion detector) LED (monochrome) LED 10 W Blac

Warranty Terms

Warranty Terms 2306615 LEDVANCE E PRO UPDOWN S 10W 840 IP55 DG LEDV 4058075228962 Wall light (+ motion detector) LED (monochrome) LED 10 W Blac

Description

Exterior wall sensor lamps in modern form with top and bottom light emission.

This text is machine translated.

Features

4 setting options can be selected (light 6h permanently on, stand-by, switch-on at movement or twilight)
Protection class IP55 Shock resistance: IK05. Protection class II
Decorative wall spotlight
Simple and fast installation
For outdoor areas, radiation of facades, arcades.
