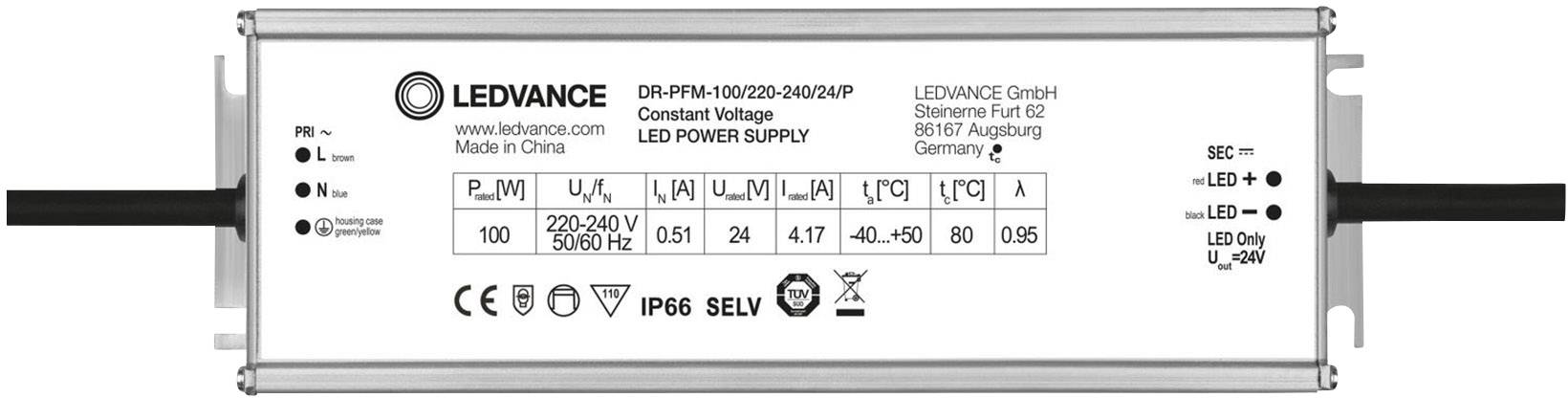

LEDVANCE LED Driver Performance LED driver Constant voltage 100 W 4170 mA 24 V Outdoor, not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED Driver Performance
- Constant voltage
- 24 V
- 4170 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
4170 mA
- Dim
(L x W x H) 197 x 63 x 38 mm
- Factory colour
Colourless
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
4170 mA
- Output current (max.) - rounded
4.17 A
- Operating voltage
230 V
- Protection class
I
- LED driver features
Outdoor
not dimmable
IP66
- Connection
Open end cable
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
4170 mA
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Weight
840 g
- Power (min.)
100 W
- Power range
100 up to 100 W
- Width
63 mm
- Height
38 mm
- Length
197 mm
- Max. temperature
+50 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203233 LEDVANCE LED Driver Performance LED driver Constant voltage 100 W 4170 mA 24 V Outdoor, not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2203233 LEDVANCE LED Driver Performance LED driver Constant voltage 100 W 4170 mA 24 V Outdoor, not dimmable 1 pc(s)
Description
Optimized for operation with 24 V flexible LED light band. Very stable output power. Quick and easy installation through pre-wiring. High efficiency and reliability. Installation in very cold and hot environments.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Outdoor driver
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
