LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 20 W Warm white (Ø x L) 27.80 mm x 1513.00 mm incl. shard protection
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 20 W Warm white EEC: D (A - G) T8
- Power= 20 W
- Total luminous flux= 2800 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: Yes
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 220 V
- Nominal current: 88 mA
- Product type
LED tube
Tube shape
G13
20 W
- Power range
20 W - 39.9 W
2800 lm
- Version
matte
- Colour
Warm white
- Total luminous flux
2800 lm
3000 K
- Colour temperature range
3000 - 3000 K
60000 h
- Circuits
200000
- Power factor
0.90
- Length
1513.00 mm
- (Ø)
27.80 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
20 kWh/1000h
- Dim
(Ø x L) 27.80 mm x 1513.00 mm
- No. of bulbs
1
- Colour rendering
830
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T8
- Light bulb features
incl. shard protection
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Material
Glass
IP20
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Type
T8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499477 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 20 W Warm white (Ø x L) 27.80 mm x 1513.00 mm incl. shard protection
User & Safety Instructions
User & Safety Instructions 3499477 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 20 W Warm white (Ø x L) 27.80 mm x 1513.00 mm incl. shard protection
Description
LED tubes for electronic ballasts (EVG), electromagnetic ballasts (conventional ballast/VVG) and mains voltage, splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 sockets in conventional ballast, EVG lights or on mains voltage. Compatible with conventional and many conventional electronic ballasts and mains voltage. Flicker arm according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Glass bulb with splinter protection. For especially homogeneous illumination. Mercury-free and RoHS compliant. Protection class: IP20 Durability: Up to 60,000 h. Product benefits: No slackening thanks to glass technology. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 66% (as compared to T8 fluorescent lamp). Very high switching strength. High luminous flux for demanding lighting tasks. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +45 °C. Lighting in industrial manufacturing. Traffic zones and corridors. Supermarkets and department stores. Industry. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. To operate the LED TUBE T8 UN with a conventional ballast, the existing starter must be replaced by the enclosed LED starter in the LED tubes packaging. All electrical connections must be made by qualified personnel only. Not suitable for emergency lighting.
This text is machine translated.
This text is machine translated.
Features
- LED tubes for electronic ballasts (EVG), electromagnetic ballasts (conventional ballast/VVG) and mains voltage, splinter protection
- LED replacement for conventional T8 fluorescent lamps with G13 sockets in conventional ballast, EVG lamps or on mains voltage
- Nominal power 20 W. Nominal voltage 220 - 240 V
- Colour temperature 3000 K
- Luminous flux: 2800 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1513.00 mm
- Width 27.80 mm

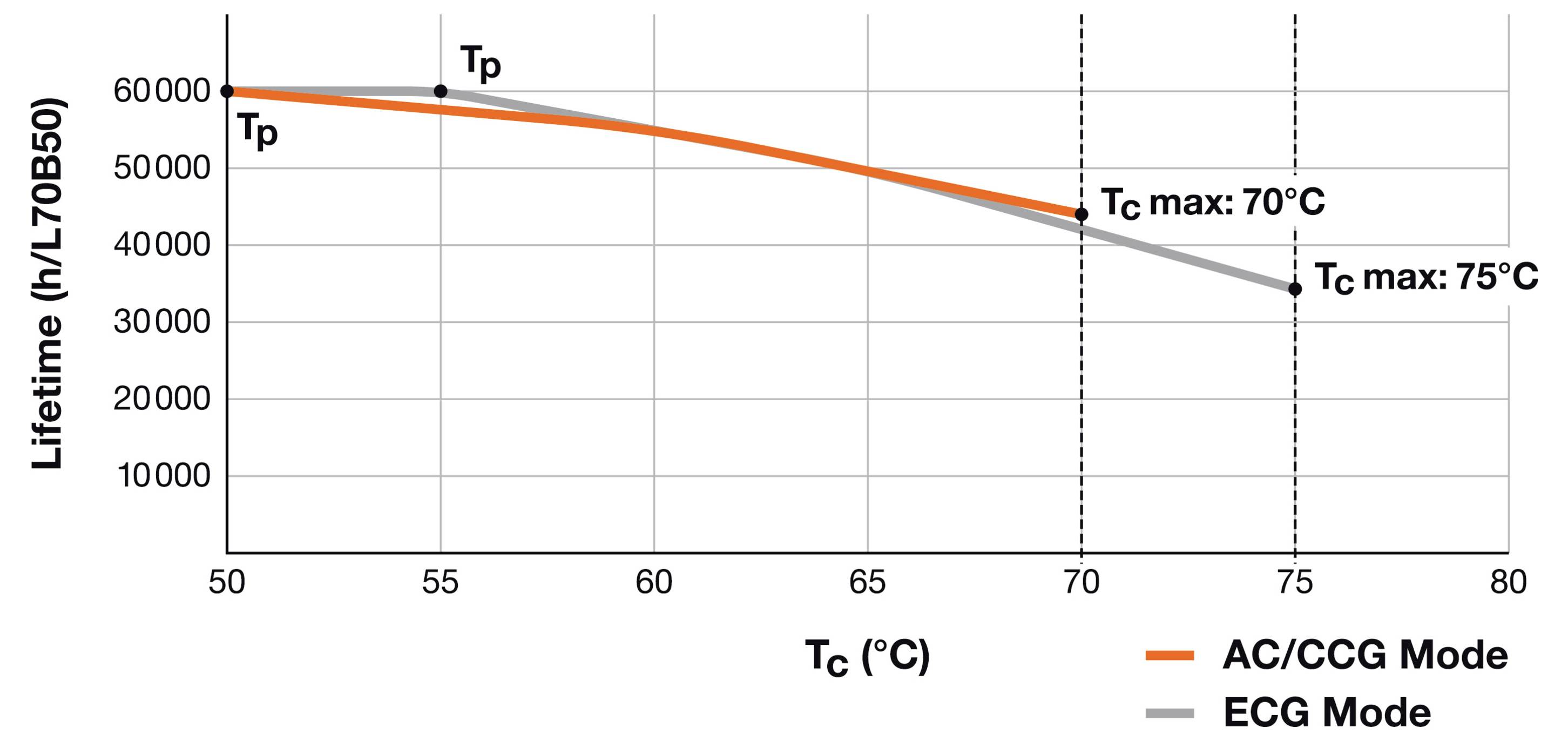

- Life L90/B10 at 25 °C: 60000 h
