LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 23 W = 58 W Neutral white (Ø x H) 27.8 mm x 27.8 mm 1 pc(s)
EAN:
Part number:
Item no:
9 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.87
€ 18.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€
Only 9 Piece(s) available
Highlights & Details
LED tube G13 23 W = 58 W Neutral white EEC: D (A - G) T8
- Power= 23 W
- Total luminous flux= 3700 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
G13
23 W
58 W
- Version
matte
- Colour
Neutral white
4000 K
- Colour temperature range
4000 K
No
75000 h
- Circuits
200000
- Ignition time
0.50 s
- Start-up time required to reach 60 % luminous flux (in sec)
2.00 s
- EOL luminous flux retention
0.70 %
- Operating voltage
50 V
78 V

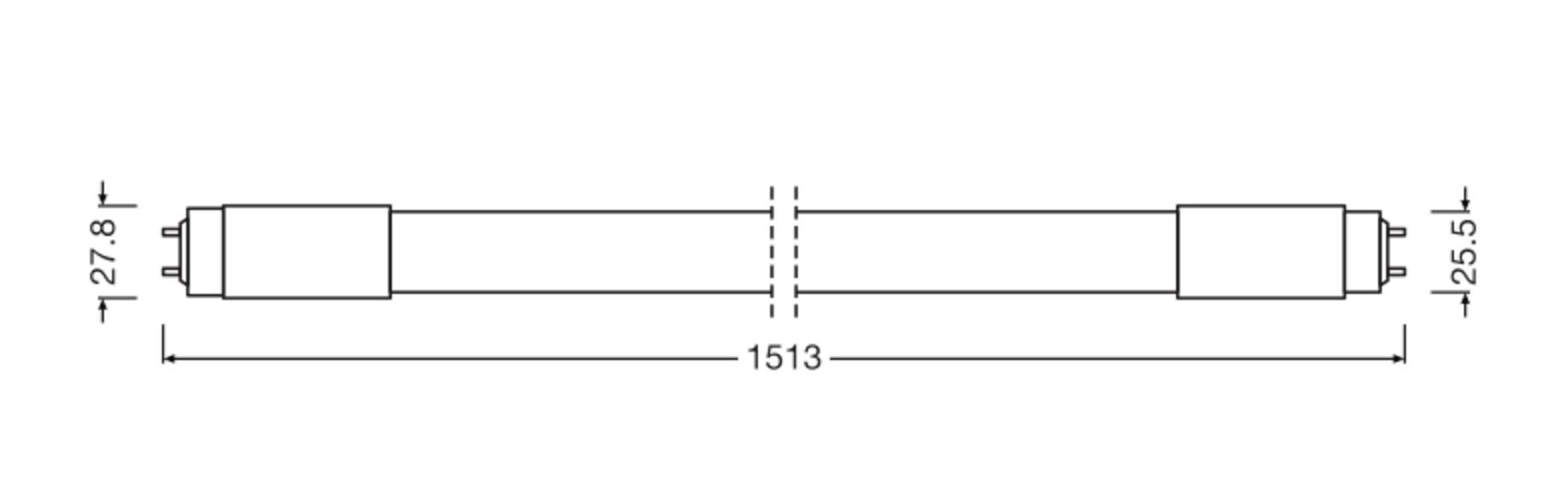

- Length
1513 mm
- (Ø)
27.8 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
23.00 kWh/1000h
- Dim
(Ø x H) 27.8 mm x 27.8 mm
- Height
27.8 mm
- Width
27.8 mm
- Colour rendering
840
- ≙ power rating of a light bulb (range)
40 W - 59.9 W
- Power range
20 W - 39.9 W
- Colour consistency (SDCM)
5
IP20
Tube shape
- Bulb shape
T8
- Material
Glass
- Type
T8
- Colour rendering index
80 Ra
- Total luminous flux
3700 lm
- Weight
284 g
- Product type
LED tube
Documents & Downloads
Datasheet
Datasheet 3323973 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 23 W = 58 W Neutral white (Ø x H) 27.8 mm x 27.8 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3323973 LEDVANCE LED tube EEC: D (A - G) G13 Tube shape T8 23 W = 58 W Neutral white (Ø x H) 27.8 mm x 27.8 mm 1 pc(s)
Description
LED tubes for electronic ballasts, splinter protection LED replacement for conventional T8 fluorescent lamps with G13 sockets in EVG lamps. Compatible with many commercially available electronic ballasts . Flicker arm according to EU 2019/2020 (SVM under 0.4 / PstLM under 1). Glass bulb with splinter protection. For especially homogeneous illumination. Mercury-free and RoHS compliant. Protection class: IP20 Durability: Up to 75,000 h. No hanging thanks to glass tube. Split protection thanks to special PET coating. Very high switching strength. High luminous flux for demanding lighting tasks. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 60% (as compared to T8 fluorescent lamp). Also suitable for low temperature operation. General lighting in ambient temperatures of -20…+45 °C. Lighting in industrial manufacturing. Traffic zones and corridors. Supermarkets and department stores. Industry.
This text is machine translated.
This text is machine translated.
Features
- LED replacement for conventional T8 fluorescent lamps with G13 sockets in EVG lamps
- Compatible with many conventional electronic ballasts
- Flicker arm according to EU-2019/2020 (SVM under 0.4 / PstLM under 1)
- Glass bulb with splinter protection
- For especially homogeneous illumination
- Mercury-free and RoHS compliant
- Protection class: IP20
- Lifecycle up to 50 75,000 hrs
