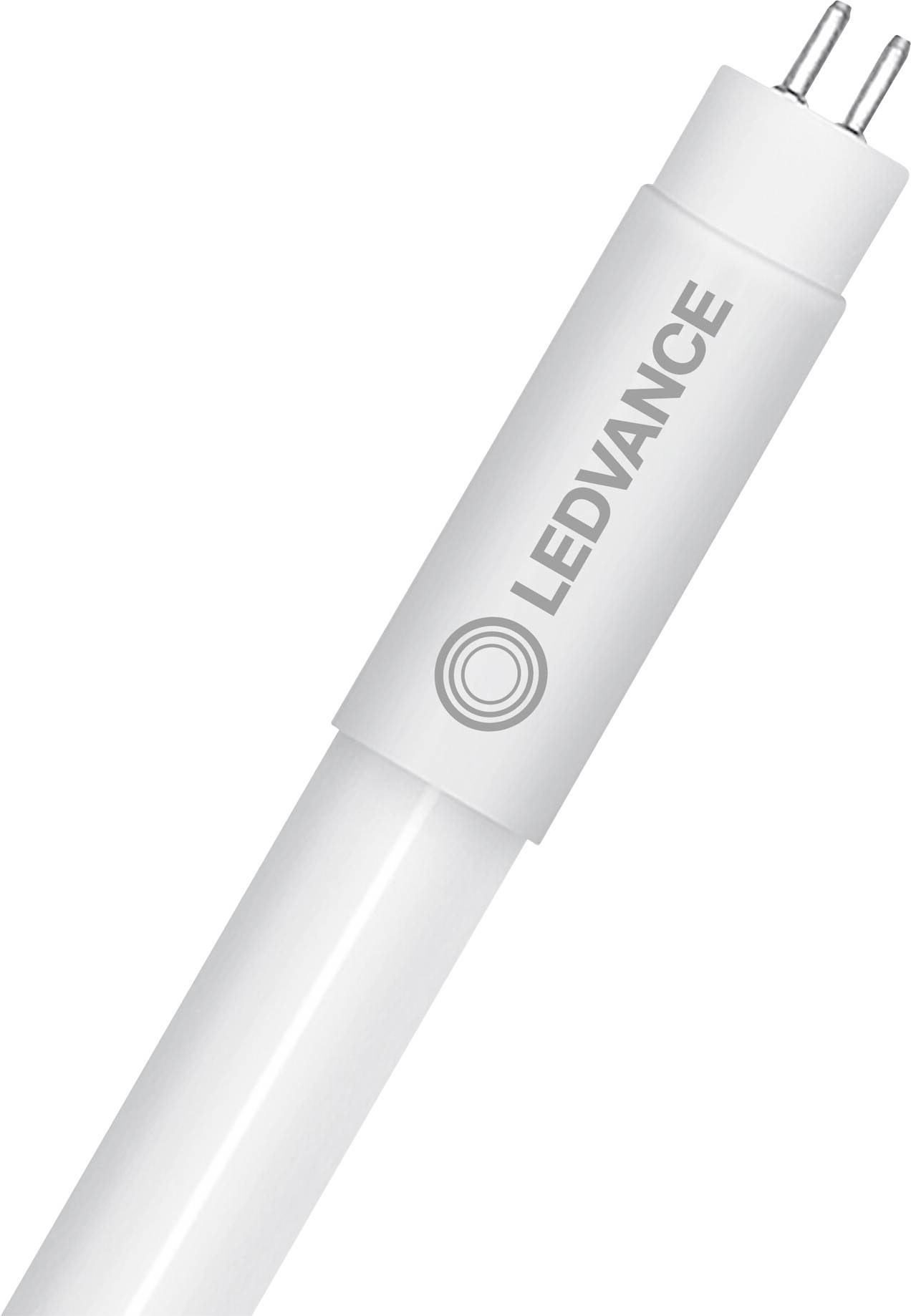

LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W = 54 W Cool white (Ø x H) 18.5 mm x 18.5 mm 1 pc(s)
EAN:
Part number:
Item no:
7 Piece(s)
Sales and shipping:
Number
Total (€ 18.48 / piece)
€
Only 7 Piece(s) available
Highlights & Details
LED tube G5 26 W = 54 W Cool white EEC: D (A - G) T5
- Power= 26 W
- Total luminous flux= 4000 lm
- Colour temperature= 6500 K
- Cool white
Technical specifications
- Product type
LED tube
Tube shape
G5
26 W
- Power range
20 W - 39.9 W
54 W
- Version
matte
- Colour
Cool white
- ≙ power rating of a light bulb (range)
40 W - 59.9 W
- Total luminous flux
4000 lm
6500 K
- Colour temperature range
6500 K
No
50000 h
- Circuits
200000
- Ignition time
0.50 s
- Start-up time required to reach 60 % luminous flux (in sec)
2.00 s
- EOL luminous flux retention
0.70 %
- Operating voltage
50 V
90 V

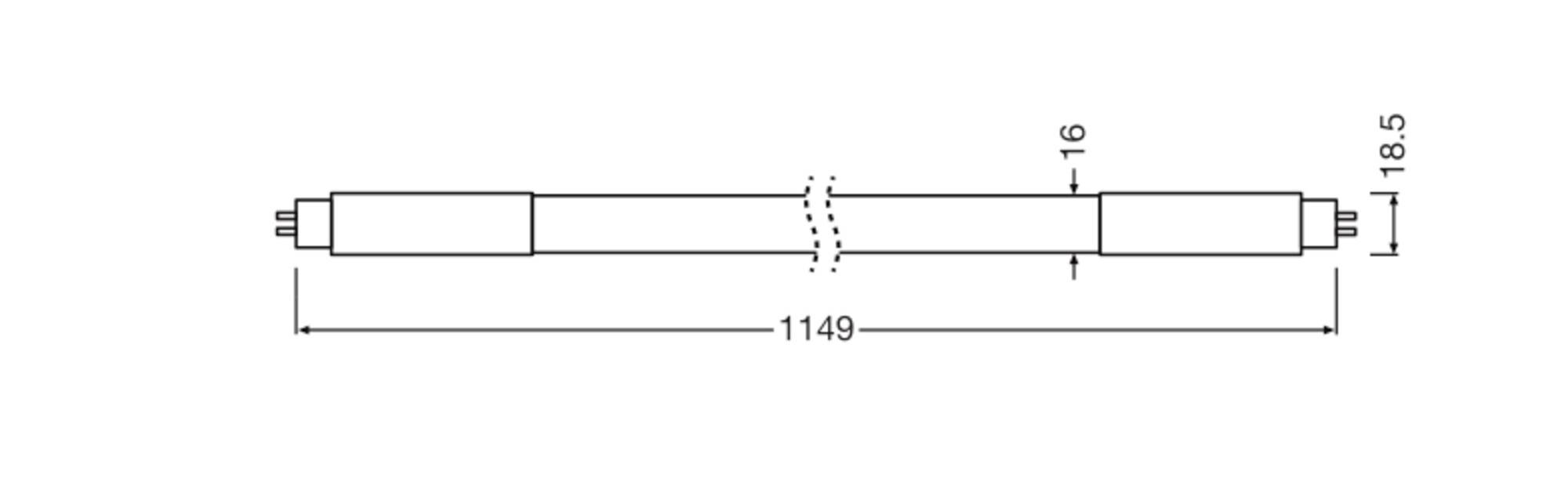

- Length
1163 mm
- (Ø)
18.5 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
26.00 kWh/1000h
- Dim
(Ø x H) 18.5 mm x 18.5 mm
- No. of bulbs
1
- Colour rendering
865
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
- Weight
157 g
- Material
Glass
IP20
- Type
T5
- Factory colour
White
- Height
18.5 mm
- Width
18.5 mm
Documents & Downloads
Datasheet
Datasheet 3323987 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W = 54 W Cool white (Ø x H) 18.5 mm x 18.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3323987 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W = 54 W Cool white (Ø x H) 18.5 mm x 18.5 mm 1 pc(s)
Description
LED tubes for electronic ballasts, splinter protection Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: Under 5 SDCM (threshold unit). Life: Up to 50,000 h. Flicker arm according to EU 2019/2020 (SVM under 0.4 / PstLM under 1). Protection class: IP20 Compatible with many commercially available electronic ballasts . Thanks to glass technology, there's no hanging around. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks. Also suitable for low temperature operation. General lighting in ambient temperatures of -20…+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.
This text is machine translated.
This text is machine translated.
Features
- Retrofit replacement of existing T5 lamps on HF ballasts
- Glass bulb with splitter protection for applications such as in the food industry
- High color consistency: Under 5 SDCM (threshold unit)
- Lifecycle up to 50 000 hrs
- Flicker arm according to EU-2019/2020 (SVM under 0.4 / PstLM under 1)
- Protection class: IP20
- Compatible with many conventional electronic ballasts
