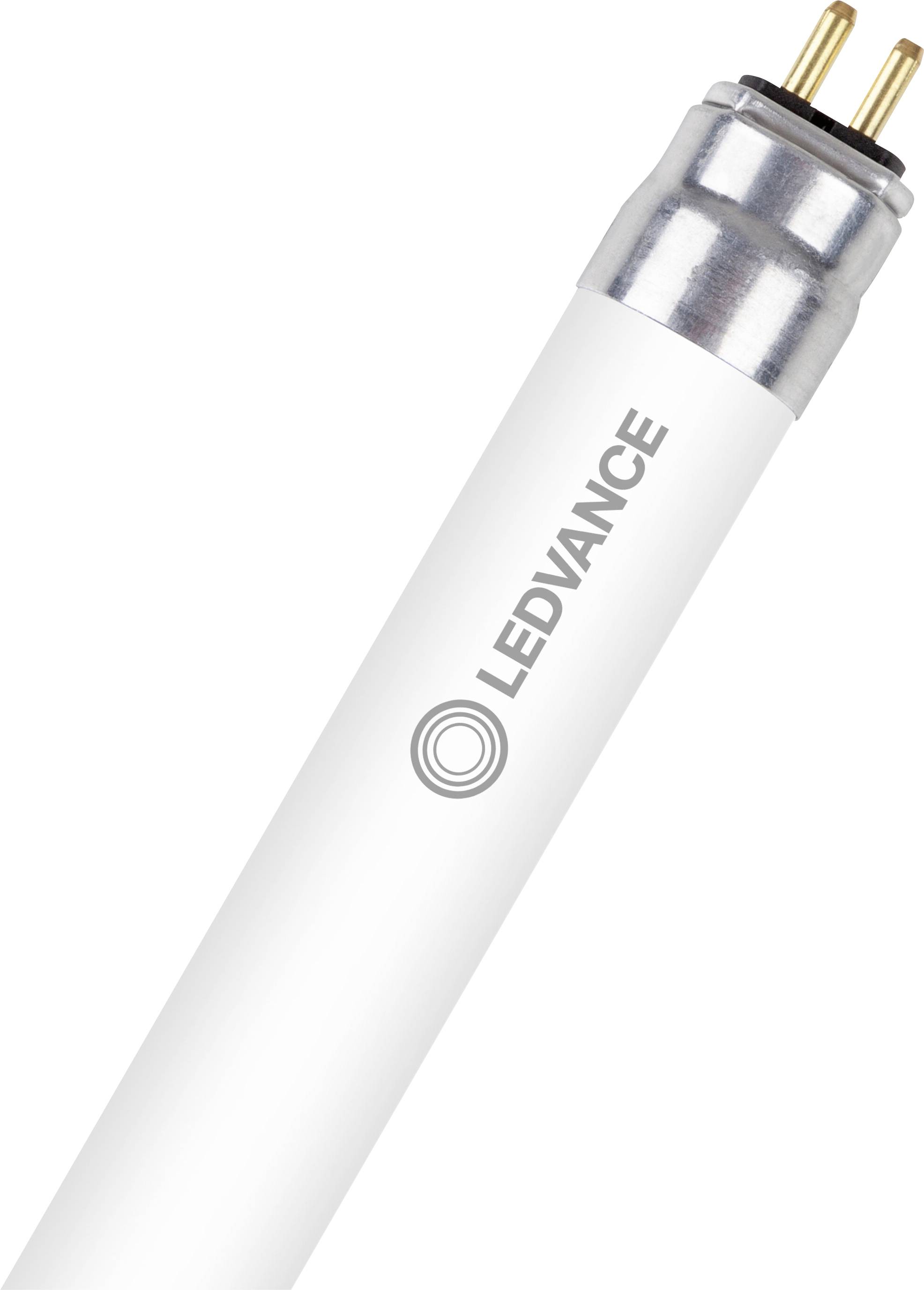

LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W Neutral white (Ø x L) 17.00 mm x 1163.00 mm dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G5 26 W Neutral white EEC: D (A - G) T5
- Power= 26 W
- Total luminous flux= 4000 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Reflected beam angle 180°
- Suitable for EVG: No.
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 42 V
- Nominal current: 600 mA
- Product type
LED tube
Tube shape
G5
26 W
- Power range
20 W - 39.9 W
4000 lm
- Version
matte
- Colour
Neutral white
- Total luminous flux
4000 lm
4000 K
- Colour temperature range
4000 - 4000 K
Yes
50000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
42 V
- Length
1163.00 mm
- (Ø)
17.00 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
26 kWh/1000h
- Dim
(Ø x L) 17.00 mm x 1163.00 mm
- Colour rendering
840
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Light features
Dimmable
- Bulb shape
T5
- Light bulb features
dimmable
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Material
Glass
IP20
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499436 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W Neutral white (Ø x L) 17.00 mm x 1163.00 mm dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499436 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 26 W Neutral white (Ø x L) 17.00 mm x 1163.00 mm dimmable 1 pc(s)
Description
LED tubes T5 exTERNAL for LED driver exTERNAL. Product Features: Designed for use with LED DRIVER LED TUBE EXTERNAL DALI. Glass bulb with splinter protection. Quality dimming of 1-100%. High switching strength. Suitable in ambient temperatures from -20 - +50°C. Product benefits: Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Split protection thanks to special PET coating. No hanging thanks to glass tube. Application areas: Industrial lighting (e.g. production plants, logistics centers, warehouses). Linear lighting solutions for offices, educational facilities, storerooms and retail trade. Shops, supermarkets. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. LED TUBE T5 EXTERNAL HO80 cannot be operated with the 2-channel driver. All electrical connections must be made by qualified personnel only. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes T5 exTERNAL for LED driver exTERNAL
- Designed to operate on LED DRIVER LED TUBE EXTERNAL DALI
- Nominal power 26 W.
- Nominal voltage 42 V
- Colour temperature 4000 K
- Luminous flux: 4000 lm
- Reflected beam angle: 180°
- Length (including round lamps): 1163.00 mm
- Width 17.00 mm
- L90/B10 life at 25 °C: 50000 h / UKCA
