1/2
LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 36 W Daylight white (Ø x L) 18.50 mm x 1463.00 mm 1
EAN:
Part number:
Item no:
Highlights & Details

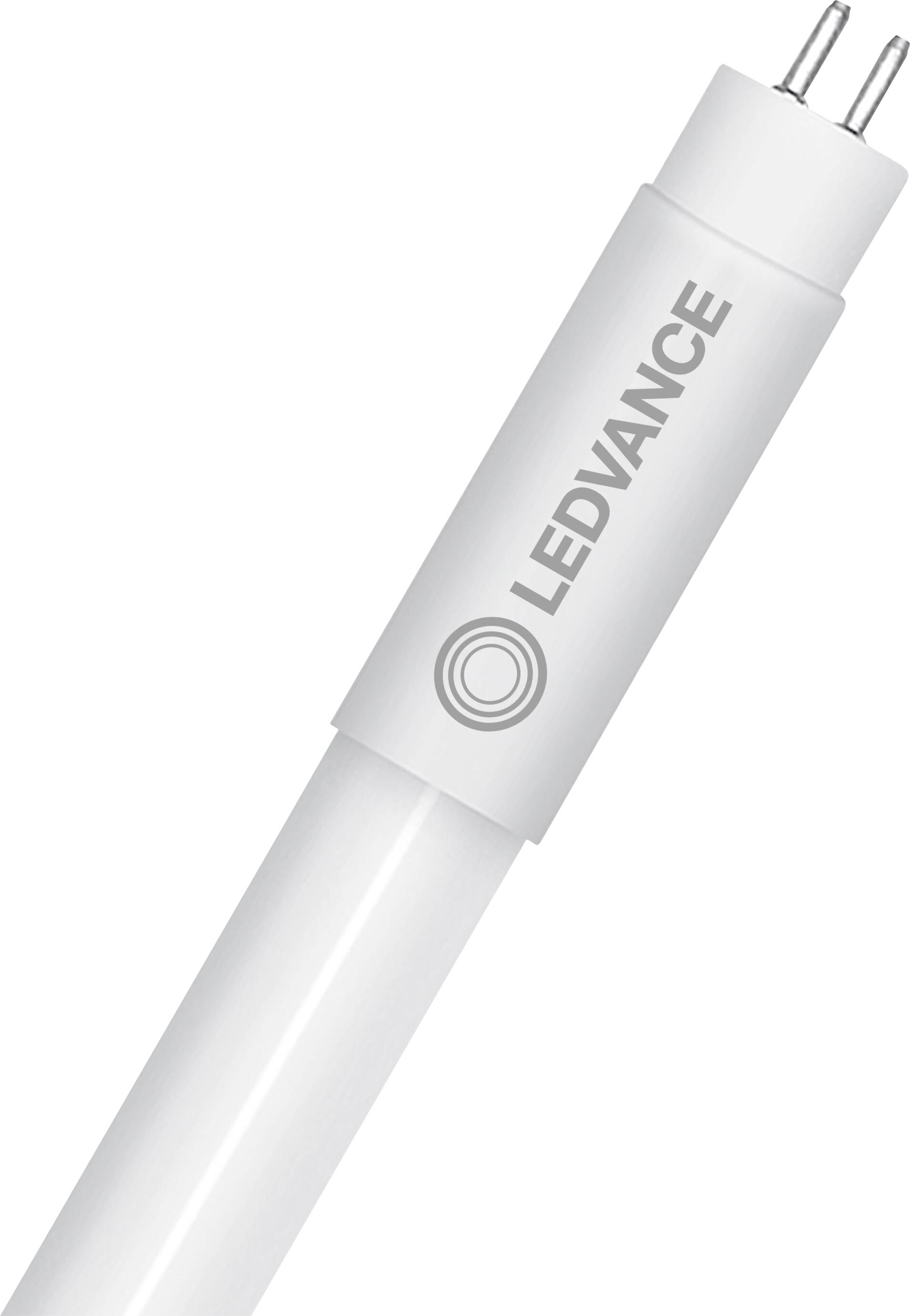

LED tube G5 36 W Daylight white EEC: D (A - G) T5 Electronic ballast
- Power= 36 W
- Total luminous flux= 5600 lm
- Colour temperature= 6500 K
- Daylight white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: Yes
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 70 V
- Nominal current: 530 mA
- Product type
LED tube
Tube shape
G5
36 W
- Power range
20 W - 39.9 W
5600 lm
- Version
matte
- Colour
Daylight white
- Operated via
Electronic ballast
- Total luminous flux
5600 lm
6500 K
- Colour temperature range
6500 - 6500 K
60000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
70 V
- Length
1463.00 mm
- (Ø)
18.50 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
36 kWh/1000h
- Dim
(Ø x L) 18.50 mm x 1463.00 mm
- No. of bulbs
1
- Colour rendering
865
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T5
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
6500 K
- Material
Glass
IP20
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499478 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 36 W Daylight white (Ø x L) 18.50 mm x 1463.00 mm 1
User & Safety Instructions
User & Safety Instructions 3499478 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 36 W Daylight white (Ø x L) 18.50 mm x 1463.00 mm 1
Description
LED tubes for electronic ballasts, splinter protection Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: ? 5 SDCM (threshold unit). Lifecycle: Up to 50,000 hrs. Flicker-poor according to EU 2019/2020 (SVM ?0.4 / PstLM?1). Protection class: IP20 Compatible with many conventional electronic ballasts. Product advantages: No hanging thanks to glass technology. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20 - +45 °C. Offices, public facilities. Supermarkets and department stores. Industry. Legal notice: When replacing a T5 fluorescent lamp, total energy efficiency and light distribution depend on the type of installation. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. All electrical connections must be made by qualified personnel only. Lamp is not suitable for emergency lighting operation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes for electronic ballasts, splinter protection
- Retrofit replacement of existing T5 lamps on HF ballasts
- Nominal power 36 W. Nominal voltage 70 - 90 V
- Colour temperature 6500 K
- Luminous flux: 5600 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1463.00 mm
- Width 18.50 mm
- Life L90/B10 at 25 °C: 60000 h
