LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast Cool white incl. shard protection 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Piece(s) available

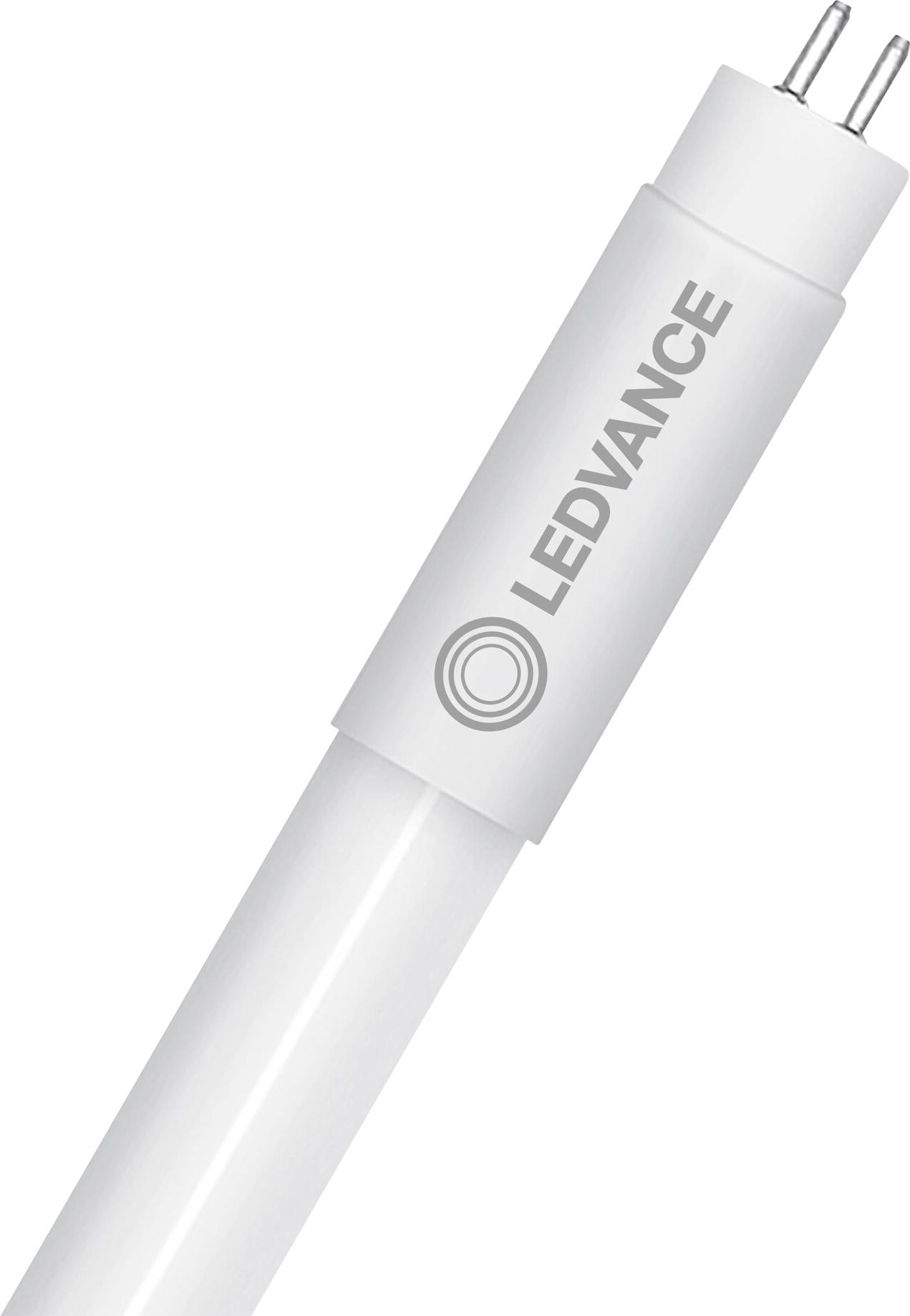

LED tube G5 Cool white EEC: D (A - G) T5 Electronic ballast
Highlights & Details
- Total luminous flux= 4000 lm
- Colour temperature= 840 K
- Cool white
Technical specifications
- Product type
LED tube
Tube shape
G5
- Version
matte
- Colour
Cool white
- Operated via
Electronic ballast
- Total luminous flux
4000 lm
840 K
- Colour temperature range
840 K
No
60000 h
- Content
1 pc(s)
D (A - G)
- No. of bulbs
1
- Colour consistency (SDCM)
5
- Weight
0.160000 kg
- Bulb shape
T5
- Light bulb features
incl. shard protection
- Material
Glass
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Type
T5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3389638 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast Cool white incl. shard protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3389638 LEDVANCE LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast Cool white incl. shard protection 1 pc(s)
Description
LED tubes for electronic ballasts, splinter protection
Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: 5 SDCM (threshold unit). Life: Up to 500 h. flicker-poor according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20 Compatible with many conventional electronic ballasts.
Product advantages: No hanging thanks to glass technology. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks.
Also suitable for low temperature operation.
Applications: General lighting in ambient temperatures from -20…+45 °C. Offices, public facilities. Supermarkets and department stores. Industry. Legal notice: When replacing a T5 fluorescent lamp, total energy efficiency and light distribution depend on the type of installation.
Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions.
The operating temperature range of the LED tube is limited.
If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation.
All electrical connections must be made by qualified personnel only.
Lamp is not suitable for emergency lighting operation.
This text is machine translated.
Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: 5 SDCM (threshold unit). Life: Up to 500 h. flicker-poor according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20 Compatible with many conventional electronic ballasts.
Product advantages: No hanging thanks to glass technology. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks.
Also suitable for low temperature operation.
Applications: General lighting in ambient temperatures from -20…+45 °C. Offices, public facilities. Supermarkets and department stores. Industry. Legal notice: When replacing a T5 fluorescent lamp, total energy efficiency and light distribution depend on the type of installation.
Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions.
The operating temperature range of the LED tube is limited.
If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation.
All electrical connections must be made by qualified personnel only.
Lamp is not suitable for emergency lighting operation.
This text is machine translated.
Features
- Product properties
- Retrofit replacement of existing T5 lamps on HF ballasts
- Glass bulb with splitter protection for applications such as in the food industry
- High color consistency: ≤ 5 SDCM (threshold unit)
- Lifecycle up to 50 500 hrs
- Flicker arm according to EU 2019/2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Protection class: IP20
- Compatible with many conventional electronic ballasts
Hints
For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible.
The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation.
All electrical connections must be made by qualified personnel only.
Lamp is not suitable for emergency lighting operation.
