LEDVANCE LED tube EEC: D (A - G) LED Tube shape T5 11.6 W Neutral white (Ø x L) 16.50 mm x 225.00 mm dimmable 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.72
€ 15.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Highlights & Details
LED tube LED 11.6 W Neutral white EEC: D (A - G) T5
- Power= 11.6 W
- Total luminous flux= 1700 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Reflected beam angle 120°
- Suitable for EVG: No.
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, one-sided base
- Nominal voltage: 33 V
- Nominal current 350 mA
- Product type
LED tube
Tube shape
LED
11.6 W
- Power range
10 W - 19.9 W
1700 lm
- Version
matte
- Colour
Neutral white
- Total luminous flux
1700 lm
4000 K
- Colour temperature range
4000 - 4000 K
Yes
50000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
33 V
- Length
225.00 mm
- (Ø)
16.50 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
12 kWh/1000h
- Dim
(Ø x L) 16.50 mm x 225.00 mm
- No. of bulbs
1
- Colour rendering
840
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Light features
Dimmable
- Bulb shape
T5
- Light bulb features
dimmable
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
IP20
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
White
White
DC
FALSE
FALSE
80-89
FALSE
16.50 mm
FALSE
146 lm/W
Tube, single-ended
225.00 mm
FALSE
33-33 V
IP20
Neutral white 3300-5300 K
Frosted
50000 h
350-350 mA
4000-4000 K
12.00 kWh
TRUE
11.6-11.6 W
1700-1700 lm
SDCM5
RG0
FALSE
FALSE
FALSE
FALSE
FALSE
Other
FALSE
200000
120.00-120.00°
1700 lm
FALSE
FALSE
FALSE
FALSE
D
FALSE
FALSE
0.90
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499586 LEDVANCE LED tube EEC: D (A - G) LED Tube shape T5 11.6 W Neutral white (Ø x L) 16.50 mm x 225.00 mm dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499586 LEDVANCE LED tube EEC: D (A - G) LED Tube shape T5 11.6 W Neutral white (Ø x L) 16.50 mm x 225.00 mm dimmable 1 pc(s)
Description

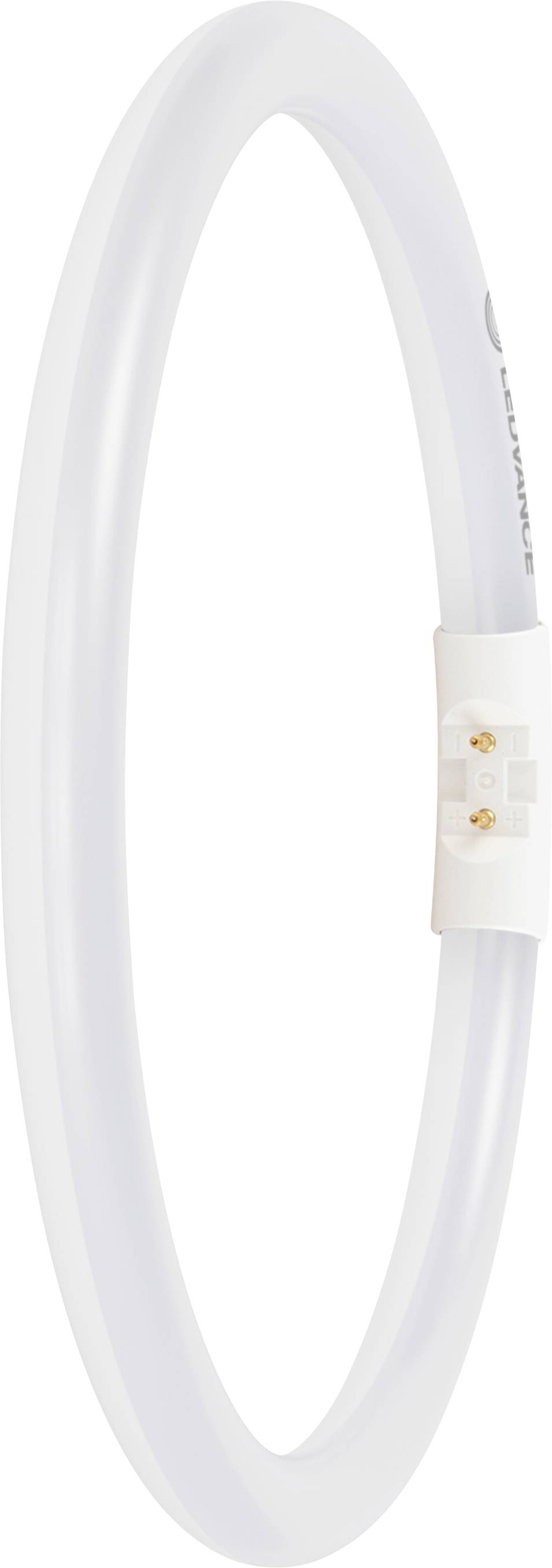

LED T5 FC EXTERNAL FOR LED DRIVER DALI. Product Features: Designed for operation on LED DRIVER DALI PERFORMANCE. Circular LED lamp with one side socket. Suitable general lighting in ambient temperatures from -20 - +45 °. Life (L70/B50): Up to 50,000 h (at 25 °C). LED replacement for traditional T5 fluorescent lamps in ring form. Product benefits: Compatible with LED driver DR DALI-P-26/220-240/700 (4058075779631). Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Application areas: Shops, hotels and restaurants. Public buildings Safety notes: Suitable for indoor use. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. Not suitable for use with 230 V mains voltage or with electronic ballast. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED T5 FC EXTERNAL FOR LED DRIVER DALI
- Designed for operation on LED DRIVER DALI PERFORMANCE
- Nominal power 11.6 W.
- Nominal voltage 33 V
- Colour temperature 4000 K
- Luminous flux: 1700 lm
- Reflected beam angle: 120°
- Length (including round lamps): 225.00 mm
- Width 16.50 mm
- L90/B10 life at 25 °C: 50000 h / UKCA
