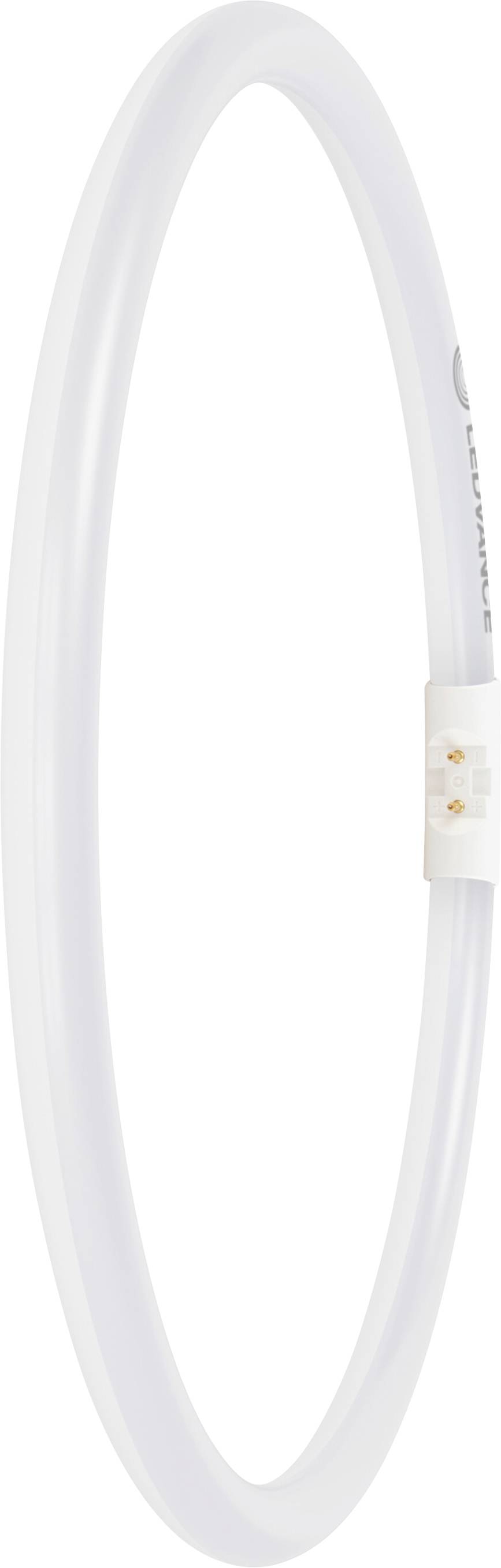

LEDVANCE LED tube EEC: D (A - G) LED Tube shape T5 21.5 W Daylight white (Ø x L) 16.50 mm x 300.00 mm dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube LED 21.5 W Daylight white EEC: D (A - G) T5
- Power= 21.5 W
- Total luminous flux= 3200 lm
- Colour temperature= 6500 K
- Daylight white
Technical specifications
- Reflected beam angle 120°
- Suitable for EVG: No.
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, one-sided base
- Nominal voltage: 33 V
- Nominal current: 650 mA
- Product type
LED tube
Tube shape
LED
21.5 W
- Power range
20 W - 39.9 W
3200 lm
- Version
matte
- Colour
Daylight white
- Total luminous flux
3200 lm
6500 K
- Colour temperature range
6500 K (max)
Yes
50000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
33 V
- Length
300.00 mm
- (Ø)
16.50 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
22 kWh/1000h
- Dim
(Ø x L) 16.50 mm x 300.00 mm
- No. of bulbs
1
- Colour rendering
865
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Light features
Dimmable
- Bulb shape
T5
- Light bulb features
dimmable
- Colour temperature (max.)
6500 K
IP20
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499590 LEDVANCE LED tube EEC: D (A - G) LED Tube shape T5 21.5 W Daylight white (Ø x L) 16.50 mm x 300.00 mm dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499590 LEDVANCE LED tube EEC: D (A - G) LED Tube shape T5 21.5 W Daylight white (Ø x L) 16.50 mm x 300.00 mm dimmable 1 pc(s)
Description
LED T5 FC EXTERNAL FOR LED DRIVER DALI. Product Features: Designed for operation on LED DRIVER DALI PERFORMANCE. Circular LED lamp with one side socket. Suitable general lighting in ambient temperatures from -20 - +45 °. Life (L70/B50): Up to 50,000 h (at 25 °C). LED replacement for traditional T5 fluorescent lamps in ring form. Product benefits: Compatible with LED driver DR DALI-P-26/220-240/700 (4058075779631). Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Application areas: Shops, hotels and restaurants. Public buildings Safety notes: Suitable for indoor use. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. Not suitable for use with 230 V mains voltage or with electronic ballast. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Features
- LED T5 FC EXTERNAL FOR LED DRIVER DALI
- Designed for operation on LED DRIVER DALI PERFORMANCE
- Nominal power 21.5 W.
- Nominal voltage 33 V
- Colour temperature 6500 K
- Luminous flux: 3200 lm
- Reflected beam angle: 120°
- Length (including round lamps): 300.00 mm
- Width 16.50 mm
- L90/B10 life at 25 °C: 50000 h / UKCA
