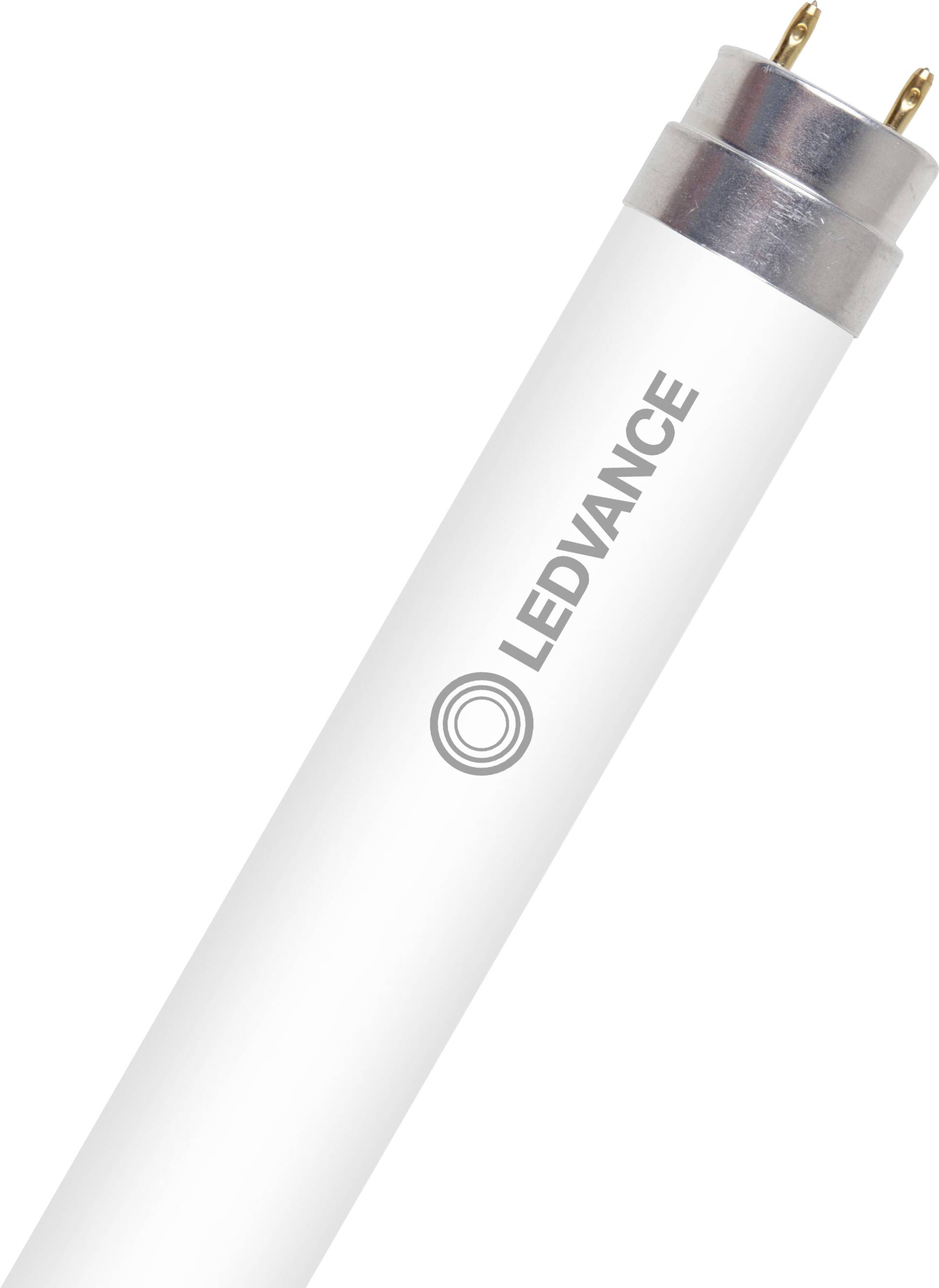

LEDVANCE LED tube EEC: E (A - G) G13 Tube shape T8 23 W Warm white (Ø x L) 27.00 mm x 1513.00 mm dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G13 23 W Warm white EEC: E (A - G) T8
- Power= 23 W
- Total luminous flux= 3350 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Reflected beam angle 190°
- Suitable for EVG: No.
- Suitable for magnetic ballast: No.
- IFTTT support available: Yes
- Lamp shape: Tubes, two-sided bases
- Nominal voltage: 42 V
- Nominal current: 550 mA
- Product type
LED tube
Tube shape
G13
23 W
- Power range
20 W - 39.9 W
3350 lm
- Version
matte
- Colour
Warm white
- Total luminous flux
3350 lm
3000 K
- Colour temperature range
3000 - 3000 K
Yes
50000 h
- Circuits
200000
- Power factor
0.90
- Operating voltage
42 V
- Length
1513.00 mm
- (Ø)
27.00 mm
- Content
1 pc(s)
E (A - G)
- Energy consumption
23 kWh/1000h
- Dim
(Ø x L) 27.00 mm x 1513.00 mm
- No. of bulbs
1
- Colour rendering
830
- Colour consistency (SDCM)
5
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T8
- Light bulb features
dimmable
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Material
Glass
IP20
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Type
T8
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499463 LEDVANCE LED tube EEC: E (A - G) G13 Tube shape T8 23 W Warm white (Ø x L) 27.00 mm x 1513.00 mm dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499463 LEDVANCE LED tube EEC: E (A - G) G13 Tube shape T8 23 W Warm white (Ø x L) 27.00 mm x 1513.00 mm dimmable 1 pc(s)
Description
LED tubes T8 EXTERNAL for LED driver EXTERNAL. Product Features: Designed for use with LED DRIVER LED TUBE EXTERNAL DALI. Glass bulb with splinter protection. Quality dimming of 1-100%. High switching strength. Suitable in ambient temperatures from -20 - +50°C. Product benefits: Easy conversion to dimmable LED lighting. Easy application, no checking of the compatibility of the ballast needed. Suitable for emergency lighting with single battery. Split protection thanks to special PET coating. No hanging thanks to glass tube. Application areas: Industrial lighting (e.g. production plants, logistics centers, warehouses). Linear lighting solutions for offices, educational facilities, storerooms and retail trade. Shops, supermarkets. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the maximum TC temperature on the product before installation. Disconnect power before installation. All electrical connections must be made by qualified personnel only.
This text is machine translated.
This text is machine translated.
Features
- LED tubes T8 EXTERNAL for LED driver EXTERNAL
- Designed to operate on LED DRIVER LED TUBE EXTERNAL DALI
- Nominal power 23 W.
- Nominal voltage 42 V
- Colour temperature 3000 K
- Luminous flux: 3350 lm
- Reflected beam angle: 190°
- Length (including round lamps): 1513.00 mm
- Width 27.00 mm
- L90/B10 life at 25 °C: 50000 h / UKCA
