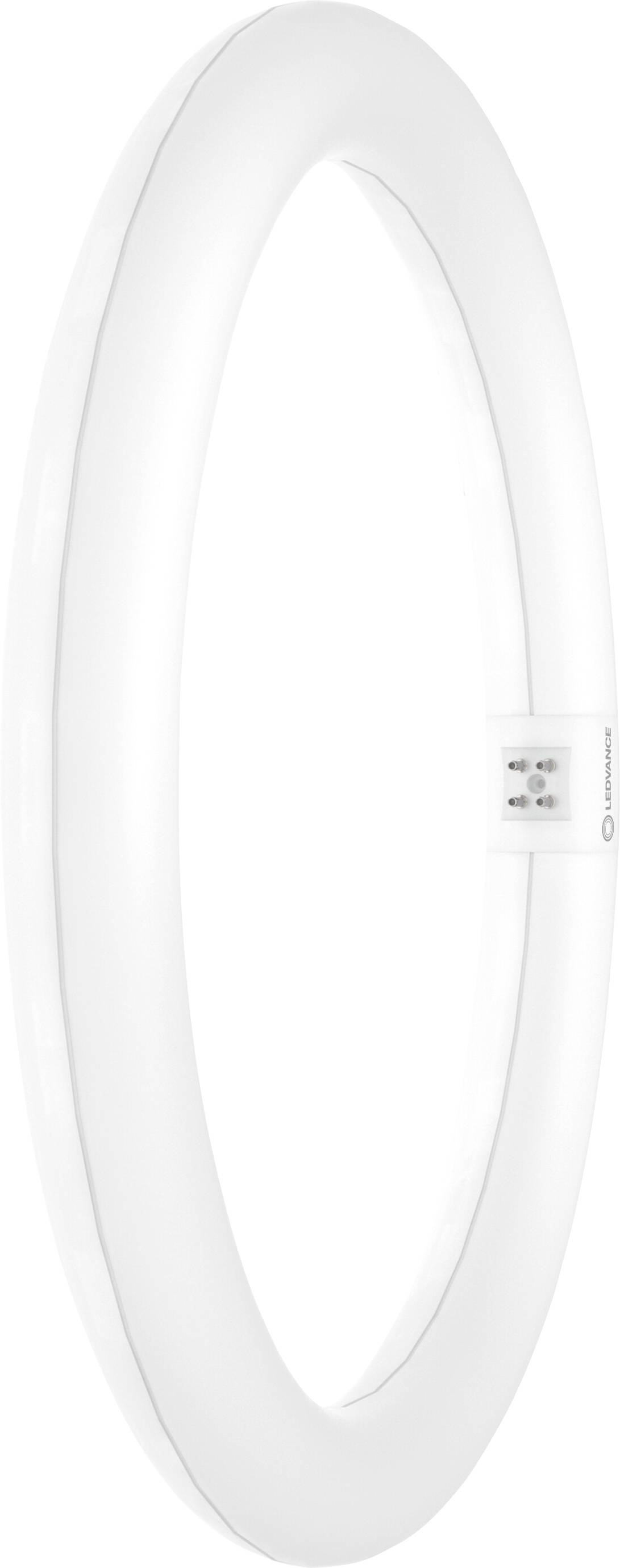

LEDVANCE LED tube EEC: F (A - G) G10q Globe shape CB 18.3 W Warm white (Ø x L) 300.00 mm x 300.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
LED tube G10q 18.3 W Warm white EEC: F (A - G) CB
- Power= 18.3 W
- Total luminous flux= 2000 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Reflected beam angle 110°
- Suitable for EVG: No.
- Suitable for magnetic ballast: Yes
- IFTTT support available: Yes
- Bulb shape: Ball
- Nominal voltage: 220 V
- Nominal current 82 mA
- Product type
LED tube
Globe shape
G10q
18.3 W
- Power range
10 W - 19.9 W
2000 lm
- Version
matte
- Colour
Warm white
- Operated via
CB
- Total luminous flux
2000 lm
3000 K
- Colour temperature range
3000 - 3000 K
30000 h
- Circuits
200000
- Power factor
0.90
- Length
300.00 mm
- (Ø)
300.00 mm
- Content
1 pc(s)
F (A - G)
- Energy consumption
19 kWh/1000h
- Dim
(Ø x L) 300.00 mm x 300.00 mm
- No. of bulbs
1
- Colour rendering
830
- Colour consistency (SDCM)
6
- Colour rendering index
80 Ra
89 Ra
- Bulb shape
T9
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
IP20
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499533 LEDVANCE LED tube EEC: F (A - G) G10q Globe shape CB 18.3 W Warm white (Ø x L) 300.00 mm x 300.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3499533 LEDVANCE LED tube EEC: F (A - G) G10q Globe shape CB 18.3 W Warm white (Ø x L) 300.00 mm x 300.00 mm 1 pc(s)
Description
LED tubes in ring form for electromagnetic ballasts (conventional/VVG) and mains voltage. Product features: LED alternative for classic T9 fluorescent lamps in conventional light fittings. Homogeneous illumination. Lifecycle up to 30,000 hrs mercury-free and RoHS-compliant. Product advantages: Easy, fast and safe replacement of lamp without rewiring. Energy savings of up to 50% (as compared to T9 fluorescent lamp). Also suitable for low temperature operation. Operation directly at 230 V mains voltage possible. Applications: General lighting in ambient temperatures from -20 - +45 °C. Corridors, stairways and parking garages. Domestic applications. Decorative applications. Legal notice: When replacing a T9 fluorescent lamp, total energy efficiency and light distribution depend on the design of the system. Safety notes: Not suitable for use with electronic ballast. For outdoor use, a suitable wet room light according to the data sheet and installation guide is possible. All electrical connections must be made by qualified personnel only. Disconnect power before installation. Lamp is not suitable for emergency lighting operation.
This text is machine translated.
This text is machine translated.
Features
- LED tubes in ring form for electromagnetic ballasts (conventional/VVG) and mains voltage
- LED alternative for classic T9 fluorescent lamps in conventional lamps
- Nominal power 18.3 W. Nominal voltage 220 - 240 V
- Colour temperature 3000 K
- Luminous flux: 2000 lm
- Reflected beam angle: 110°
- Length (including round lamps): 300.00 mm
- Width 300.00 mm
- L90/B10 life at 25 °C: 30000 h / EAC / UKCA
