1/2
LEDVANCE LED tube EEC: F (A - G) G13 Tube shape T8 24 W = 58 W Warm white (Ø x H) 27.8 mm x 27.8 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

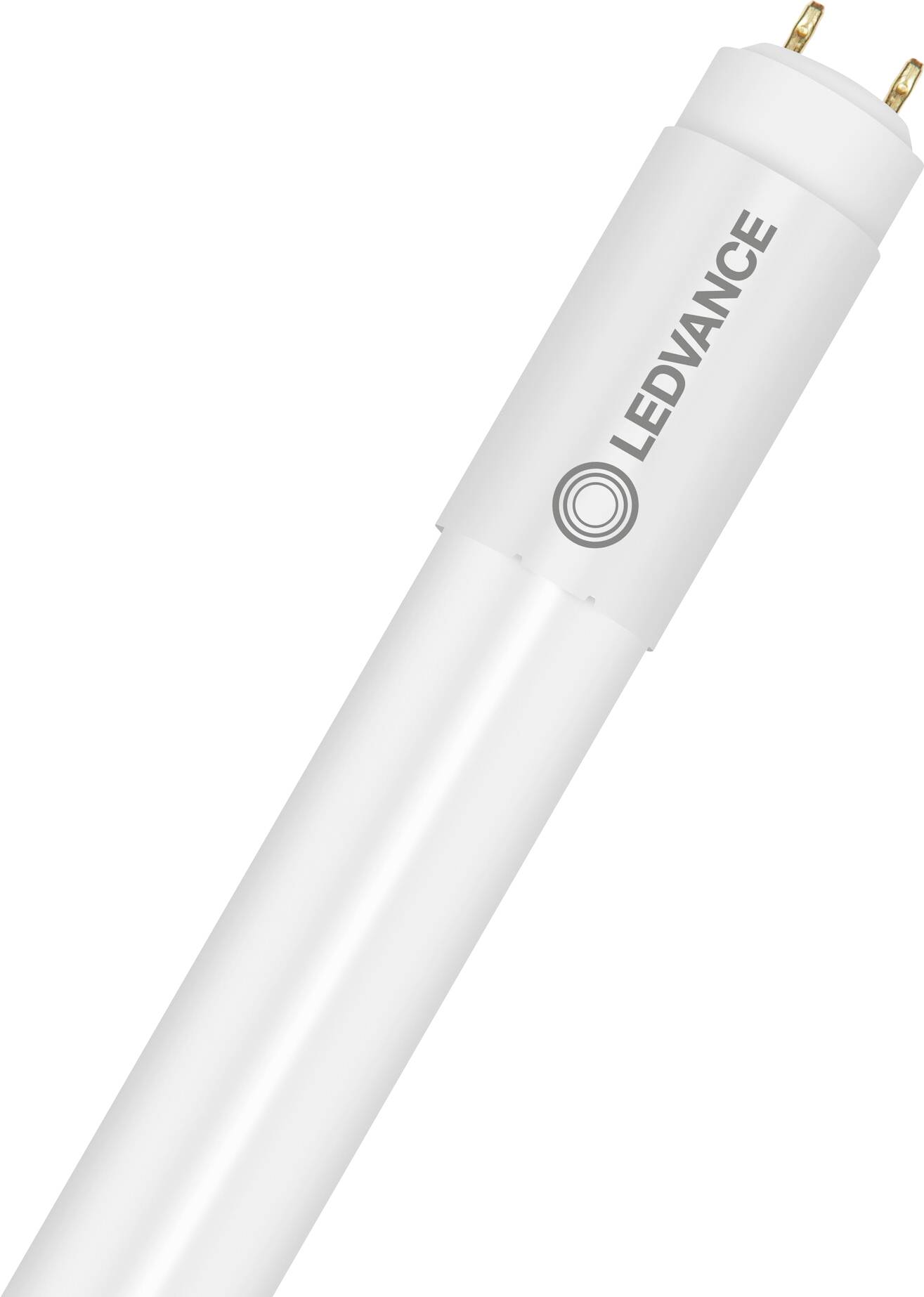

LED tube G13 24 W = 58 W Warm white EEC: F (A - G) T8
- Power= 24 W
- Total luminous flux= 2550 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
G13
24 W
58 W
- Version
matte
- Colour
Warm white
3000 K
- Colour temperature range
3000 K
No
30000 h
- Circuits
200000
- Ignition time
0.50 s
- Start-up time required to reach 60 % luminous flux (in sec)
0.50 s
- EOL luminous flux retention
0.70 %
- Operating voltage
220 V
240 V
- Length
1513 mm
- (Ø)
27.8 mm
- Content
1 pc(s)
F (A - G)
- Energy consumption
24.00 kWh/1000h
- Dim
(Ø x H) 27.8 mm x 27.8 mm
- Height
27.8 mm
- Width
27.8 mm
- Colour rendering
830
- ≙ power rating of a light bulb (range)
40 W - 59.9 W
- Power range
20 W - 39.9 W
- Colour consistency (SDCM)
5
IP20
Tube shape
- Bulb shape
T8
- Material
Glass
- Type
T8
- Colour rendering index
80 Ra
- Total luminous flux
2550 lm
- Weight
307 g
- Product type
LED tube
Documents & Downloads
Datasheet
Datasheet 3323983 LEDVANCE LED tube EEC: F (A - G) G13 Tube shape T8 24 W = 58 W Warm white (Ø x H) 27.8 mm x 27.8 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3323983 LEDVANCE LED tube EEC: F (A - G) G13 Tube shape T8 24 W = 58 W Warm white (Ø x H) 27.8 mm x 27.8 mm 1 pc(s)
Description
LED tubes for electronic ballasts (conventional ballast), electromagnetic ballasts (conventional ballast/VVG) and mains voltage. LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast, EVG lights or on mains voltage. Compatible with many conventional and many conventional electronic ballasts. Flicker arm according to EU 2019/2020 (SVM under 0.4 / PstLM under 1). Glass tube. Homogeneous illumination. Mercury-free and RoHS compliant. Protection class: IP20 Durability: Up to 30,000 h. No hanging thanks to glass technique. Simple, fast and safe replacement of lamps without rewiring. Energy savings of up to 58% (as compared to T8 fluorescent lamp). Very high switching strength. Also suitable for low temperature operation. Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. General lighting in ambient temperatures of -20…+45 °C. Corridors, stairways and parking garages. Industry. Warehouses. Refrigeration and storage rooms. Domestic applications. Supermarkets and department stores.
This text is machine translated.
This text is machine translated.
Features
- LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast, EVG lights or on mains voltage
- Compatible with many conventional and many conventional electronic ballasts
- Flicker arm according to EU-2019/2020 (SVM under 0.4 / PstLM under 1)
- Glass tube
- Homogeneous illumination
- Mercury-free and RoHS compliant
- Protection class: IP20
- Lifecycle up to 50 30,000 hrs
