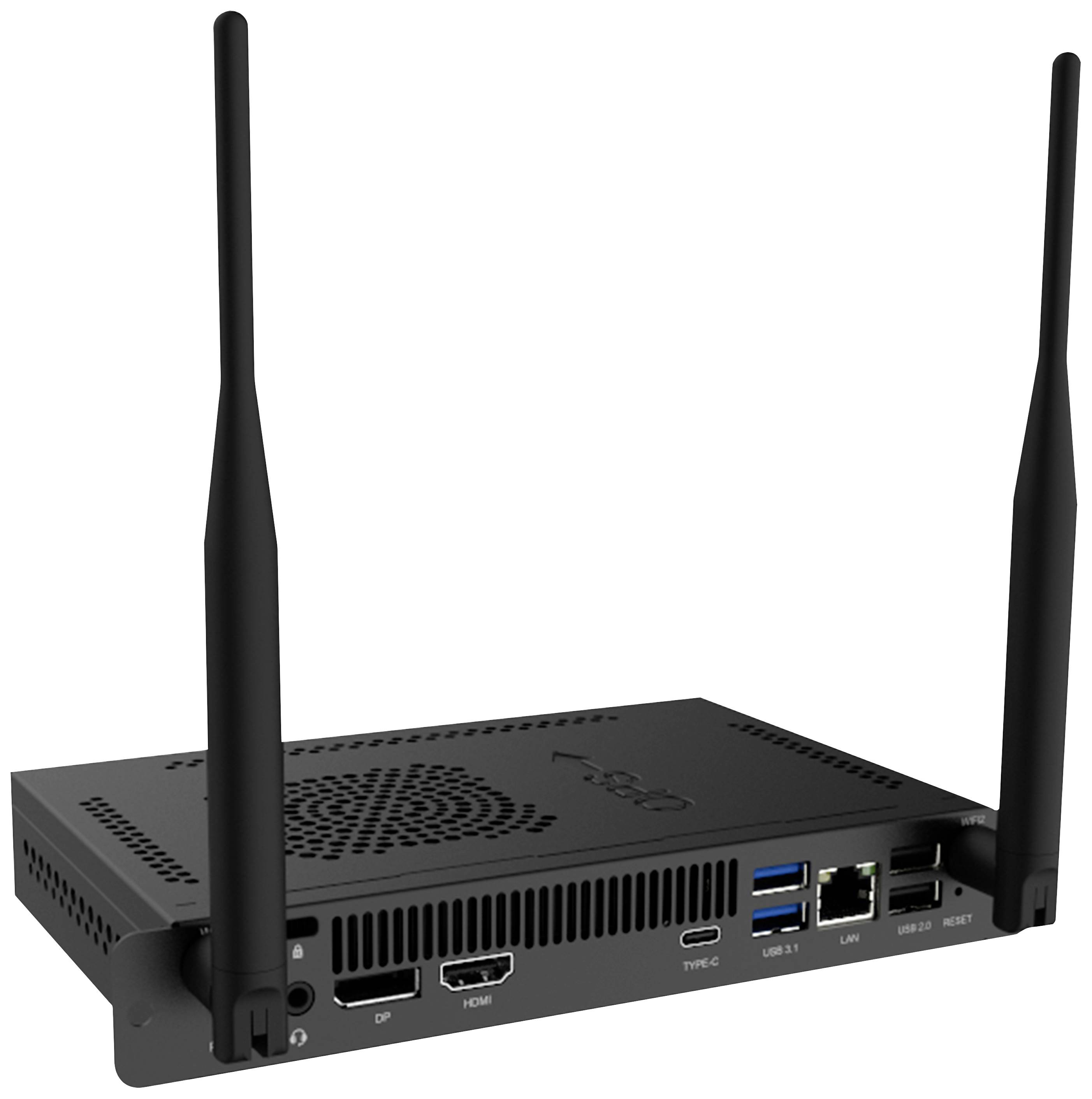

A black mini-PC with two Wi-Fi aerials, multiple ports (including HDMI and USB) and a ventilation grille on the top surface.

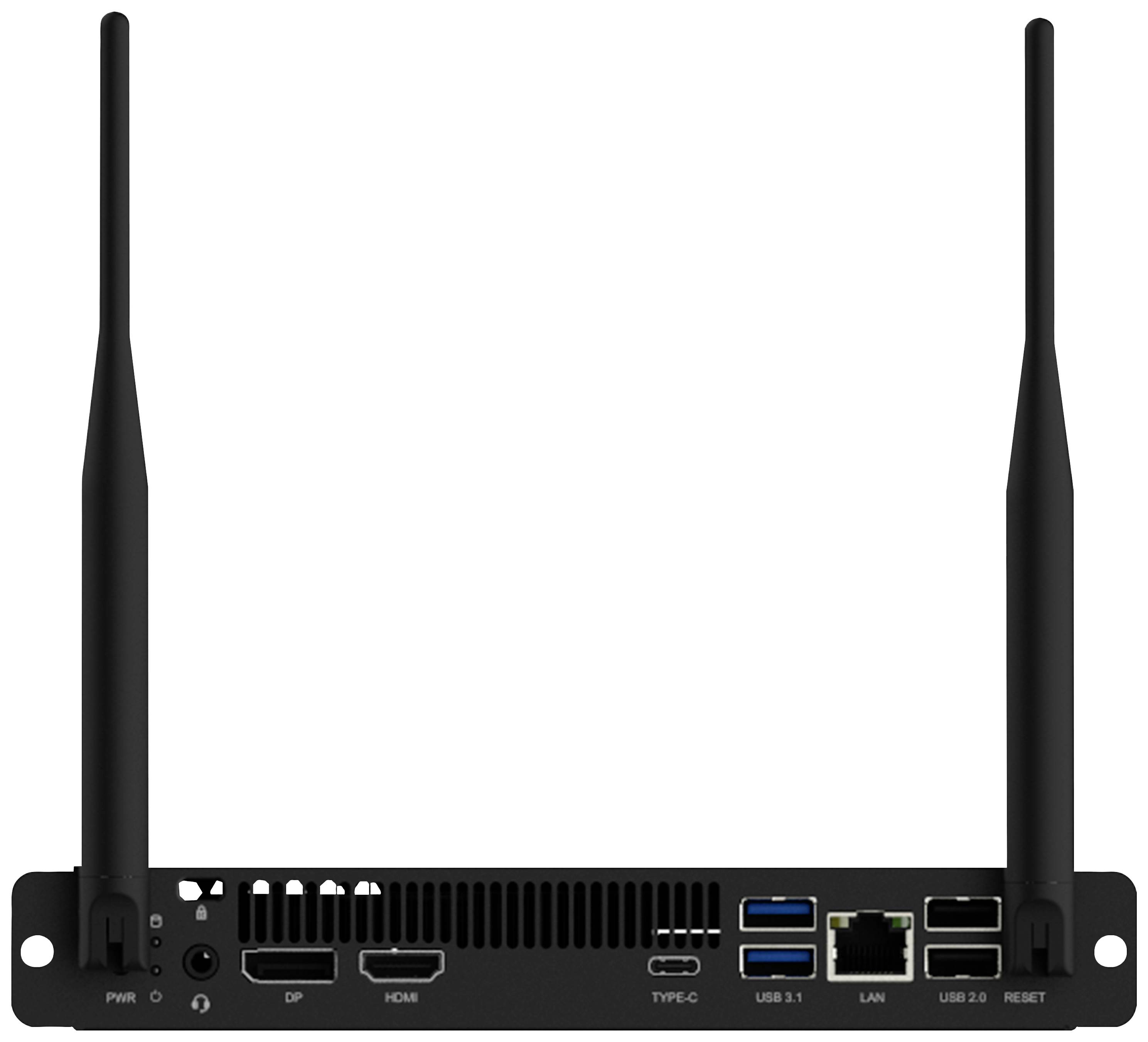

The back panel of a small computer with two aerials, multiple USB ports, HDMI, LAN, and a reset button.

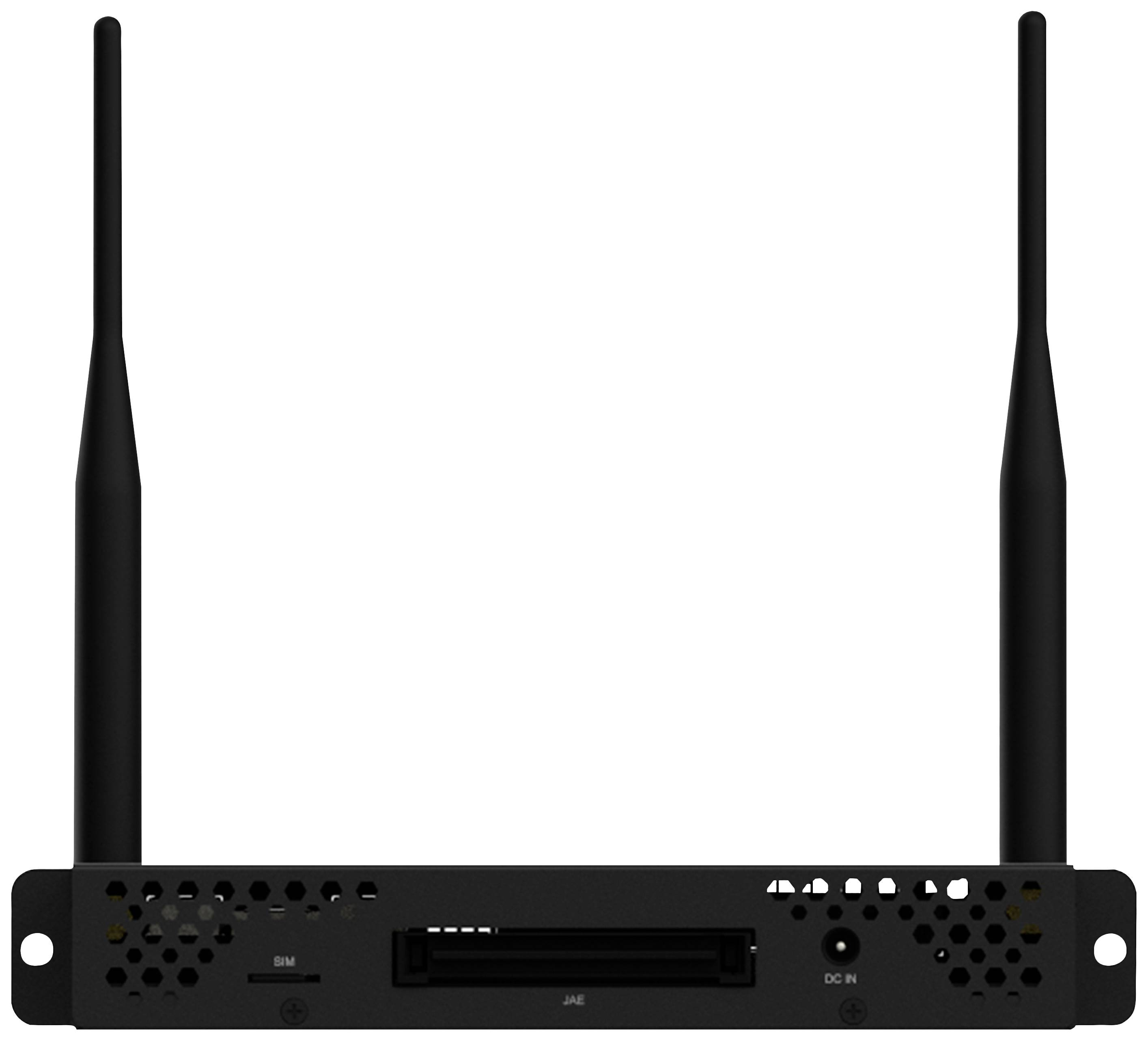

A black router with two aerials, power button and connection options on the front panel. Suitable for network connections.

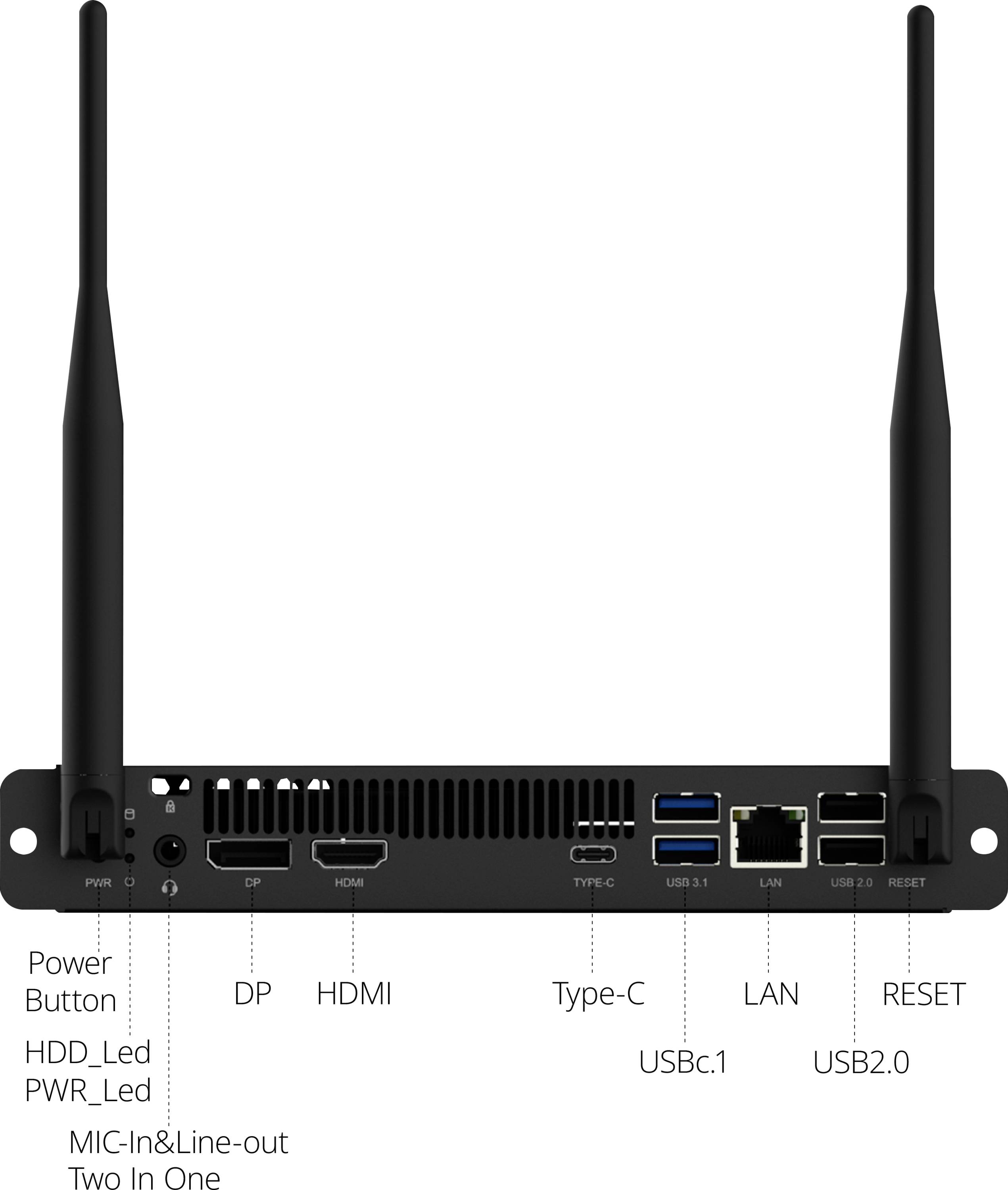

'Back of a mini PC with ports: Power button, DisplayPort, HDMI, USB-C, USB 3.1, LAN, Reset, Mic-In & Line-out.'

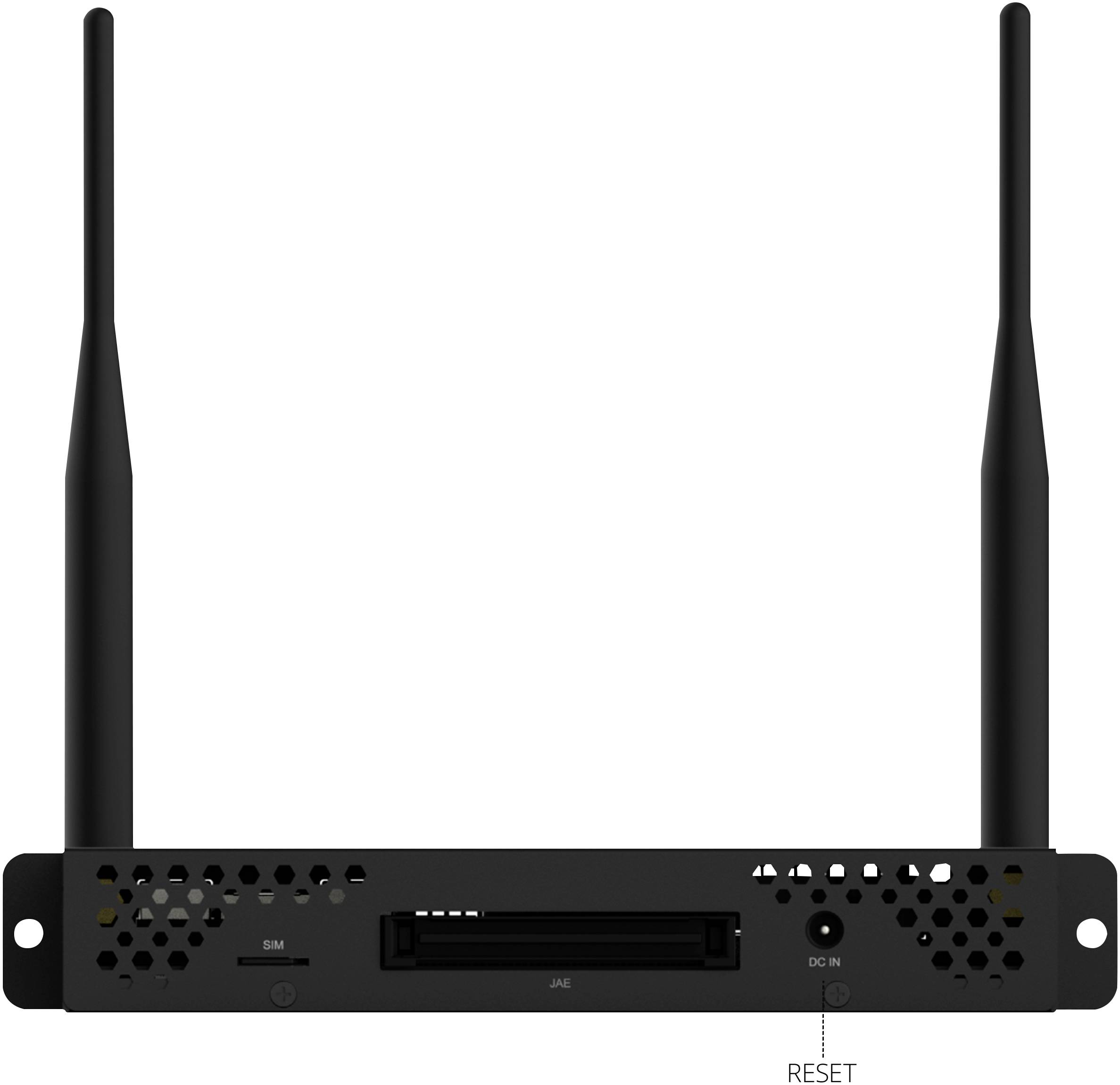

A black router with two antennae, multiple ventilation slots, a SIM card slot, and a network connection on the back.

1/5

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 542.02 / piece)

€ 542.02

plus VAT.

Report legal concerns

Legamaster OPS PC AL-i5-1235U Barebone

Technical specifications

CPU: Intel® Core™ i5 Alder Lake 1235U
RAM 8 GB DDR4
SSD 256 GB m.2
Graphic: Intel® Iris® Xe Graphics
CONNECTION OPS JAE TX25A
Supported video modes: 1080p, 1440p, 2160p, 3840p

Product type: PC module

Interfaces: HDMI™
DisplayPort
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB C®
RJ45
Audio line out
Wi-Fi
Bluetooth

Factory colour: Black

Dim: (W x H x D) 18 x 3 x 11.9 cm

Width: 18 cm

Height: 3 cm

Depth: 11.9 cm

Weight: 800 g

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

Keyboard layout: German, QWERTZ

Wireless charging: Yes

Model: AL OPS Computer AL-i5-1235U barebone

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3193024 Legamaster OPS PC AL-i5-1235U PC module

User & Safety Instructions

User & Safety Instructions 3193024 Legamaster OPS PC AL-i5-1235U PC module

Description

A standard Intel® OPS (Open Pluggable Specification) PC module extends your Legamaster touch display or professional display with the benefits of fully integrated computing power. Run 4K and 5K resolution applications fluidly with the 12 Intel® Core™ i5 Alder Lake processor. Generation, 8 GB Dual channel SDRAM and 256 GB M.2 SSD hard disk. More user-friendliness, because the OPS PC module automatically starts and shuts down with your screen. Wireless 802.11ax Wi-Fi6 and gigabit Ethernet network adapters ensure a quick connection to wired and wireless networks. Easy connection of peripherals such as wireless keyboard, mouse and microphone via the built-in Bluetooth adapter. Flexible maintenance and upgrade because the OPS-PC module is always accessible. The integrated power connection enables the operation without screen, WAS simplifies IT-support and the provision (external power supply not included in the delivery).

This text is machine translated.

Features

Intel® Core™ processor of the 12. Generation
OPS standard format
Dual channel SDRAM DDR4 3200 MHz Memory
256 GB M.2 SSD hard drive
802.11ax Wi-Fi 6 module
Gigabit Ethernet adapter
Bluetooth 5.2
Supports screen resolutions of 4K at 60Hz
Supports screen resolutions of 5k@60Hz in 21:9 format

Scope of delivery

OPS computer AL-i5-1235U Barebone
2x WLAN-/Bluetooth-Antenna
User manual.
