Legrand 001432 1432 Distribution board Flush mount No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
2
Mounting type
Flush mount
Width
330 mm
Height
430 mm
Datasheet (PDF)
Technical specifications
- IP30 protection
- Housing material: Steel
- Width in division units: 14
- Lid type: Closed
- Product type
Distribution board
- No. of rows
2
- Mounting type
Flush mount
- Factory colour
White
- Width
330 mm
- Height
430 mm
- Dim
(W x H x D) 330 x 430 x 90 mm
- Depth
90 mm
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2151245 Legrand 001432 1432 Distribution board Flush mount No. of rows = 2 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2151245 Legrand 001432 1432 Distribution board Flush mount No. of rows = 2 Content 1 pc(s)
Description

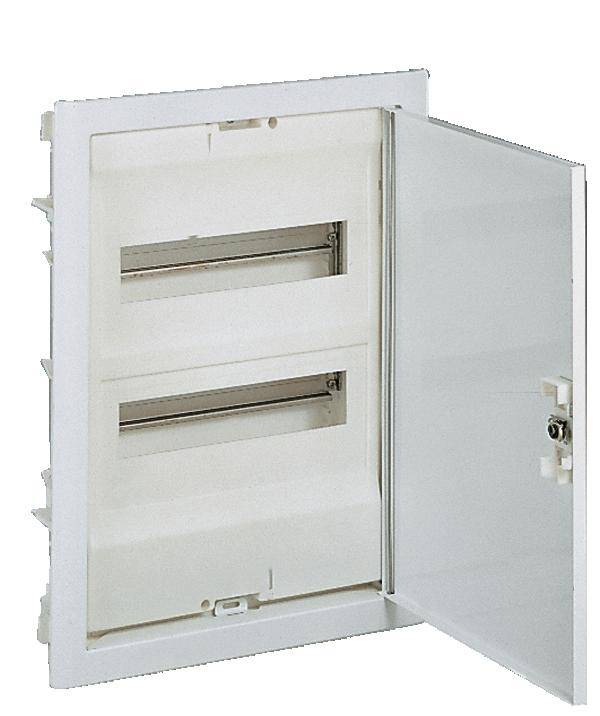

Legrand flush-mounted distributor Ekinoxe, with metal door, signal white RAL 9003, protection class IP30 - IK05, 2-row, 24+4 modules/series, dimensions 430 x 330 x 87 (height x width x depth in mm), self-extinguishing 750 °C, complete set including wall box and door, including N and PE terminals and cover strips, protection class II. Doors can be hinged right and left. According to EN 62208, for the construction of installation distributors according to EN 61439-3. Suitable for flush-mounting and hollow-wall mounting, order hollow-wall mounting kit separately (Order No. 001490)
