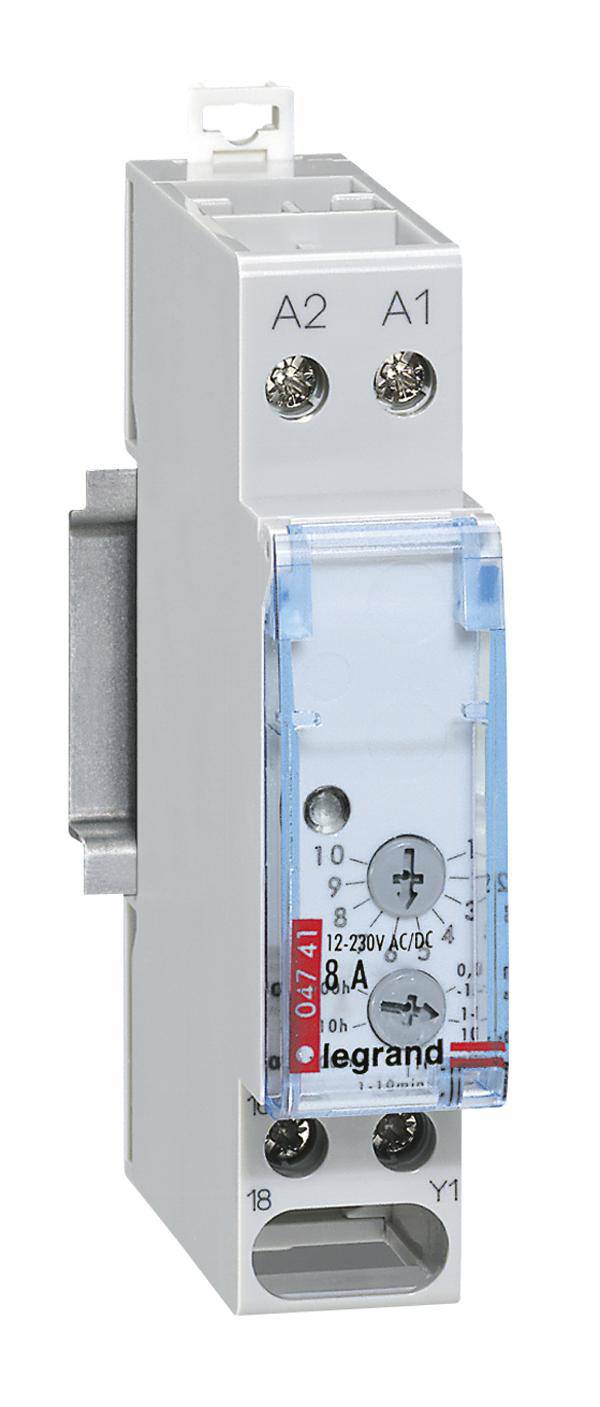

Legrand 004741 Legrand 004741 TDR Monofunctional 250 V 1 pc(s) 1 change-over
EAN:
Part number:
Item no:
Product type
TDR
Type
Monofunctional
Functions
Off-delay
Operating voltage
250 V
Contact type
1 change-over
Datasheet (PDF)
Technical specifications
- Width in division units: 1
- Nominal switching current at 250 V AC: 8 A.
- Voltage type of supply voltage: AC
- Contact type: Changer
- Mounting type: DIN rail
- Product type
TDR
- Type
Legrand 004741
- Type
Monofunctional
- Functions
Off-delay
- Operating voltage
250 V
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Min. temperature
20 °C
- Max. temperature
60 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158015 Legrand 004741 Legrand 004741 TDR Monofunctional 250 V 1 pc(s) 1 change-over
User & Safety Instructions
User & Safety Instructions 2158015 Legrand 004741 Legrand 004741 TDR Monofunctional 250 V 1 pc(s) 1 change-over
Description
Legrand time relay, fall-back delayed relay (analogueue), 1-module, for distributor installation, supply voltage 12… 230 V AC/DC, 7 adjustable time ranges, switching output: 1 changeover contact. Application : for small controllers in which single time functions are required. E.G. lighting, ventilation, control technology, automation, signal systems.
