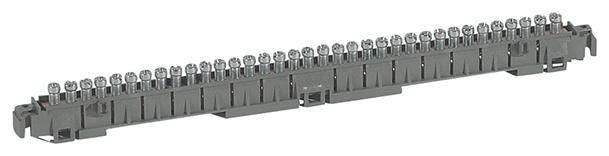

Legrand 004828 Terminal 100 A 400 V
EAN:
Part number:
Item no:
Product type
Terminal
Number of pins
34
Nominal current - rounded value
100 A
Nominal voltage
400 V
Dim
(W x H x D) 276 x 30 x 16 mm
Datasheet (PDF)
Technical specifications
- Connection type: Screws
- DIN rail mounting
- Nominal voltage
400 V
- Product type
Terminal
- Number of pins
34
- Dim
(W x H x D) 276 x 30 x 16 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Width
276 mm
- Height
30 mm
- Depth
16 mm
Documents & Downloads
Datasheet
Datasheet 3333390 Legrand 004828 Terminal 100 A 400 V
User & Safety Instructions
User & Safety Instructions 3333390 Legrand 004828 Terminal 100 A 400 V
Description
Universal terminal strip for rail and distributor mounting According to IEC 998-2-1, corresponds to a large extent to EN 60998-2-1 = VDE 0613-2-1 for cables 25 mm² Cu. 100 A/400 VAC for cables 16 mm² Cu. 80 A/400 VAC with open screws supplied Mounting on rails 12x2 mm, order no. 04819, possible with duplex labels
