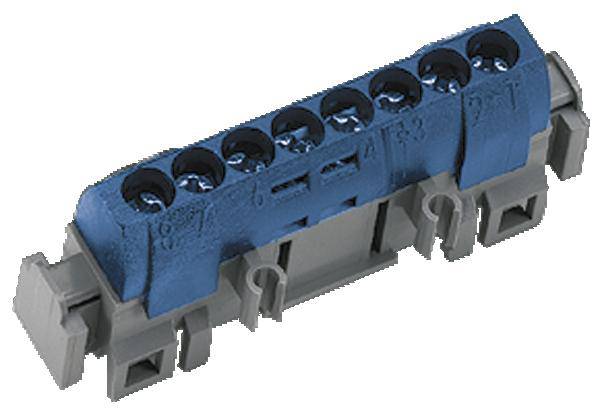

Legrand 004842 Terminal 100 A 230 V
EAN:
Part number:
Item no:
Product type
Terminal
Number of pins
8
Nominal current - rounded value
100 A
Nominal voltage
230 V
Dim
(W x H x D) 75 x 30 x 16 mm
Datasheet (PDF)
Technical specifications
- Connection type: screws
- Mounting type: DIN rail
- Protection class: IP20
- Nominal voltage
230 V
- Product type
Terminal
- Number of pins
8
- Dim
(W x H x D) 75 x 30 x 16 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Width
75 mm
- Height
30 mm
- Depth
16 mm
Documents & Downloads
Datasheet
Datasheet 2151389 Legrand 004842 Terminal 100 A 230 V
User & Safety Instructions
User & Safety Instructions 2151389 Legrand 004842 Terminal 100 A 230 V
Description
Terminal protection with touch protection for rail and distribution mounting, IP 20 conductors (blue) according to IEC 998-2-1, corresponds to a large extent to EN 60998-2-1 = VDE 0613-2-1 for cables 25 qmm Cu. 100 A/400 VAC for wires 16 qmm Cu. 80 A/400 VAC supplied with open screws, contact-proof mounting on 12x2 mm rail is possible Labeling options with duplicate labels
