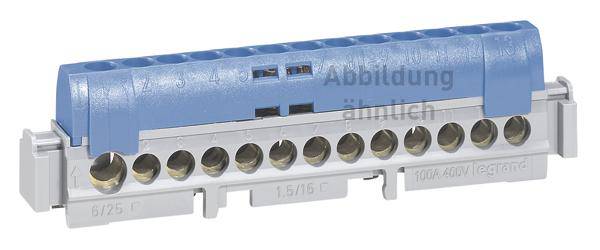

Legrand 004845 Terminal 100 A 400 V
EAN:
Part number:
Item no:
Product type
Terminal
Number of pins
17
Nominal current - rounded value
100 A
Nominal voltage
400 V
Dim
(W x H x D) 141 x 30 x 16 mm
Datasheet (PDF)
Technical specifications
- Connection type: Screws
- DIN rail mounting
- Protection class: IP20
- Nominal voltage
400 V
- Product type
Terminal
- Number of pins
17
- Dim
(W x H x D) 141 x 30 x 16 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Width
141 mm
- Height
30 mm
- Depth
16 mm
Documents & Downloads
Datasheet
Datasheet 3333394 Legrand 004845 Terminal 100 A 400 V
User & Safety Instructions
User & Safety Instructions 3333394 Legrand 004845 Terminal 100 A 400 V
Description
Terminal protection with touch protection for rail and distributor mounting, IP 20 conductor (blue) According to IEC 998-2-1, corresponds to a large extent EN 60998-2-1 = VDE 0613-2-1 for 25 mm2 cables Cu. 100 A/400 VAC in case of cables 16 qmm Cu. 80 A/400 VAC with open screws supplied contact-proof mounting on rails 12x2 mm possible Identification possibilities with duplex labels
