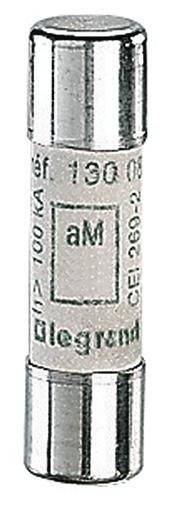

Legrand 013004 Torpedo fuse Fuse size = 4 4 A 500 V AC 10 pc(s)
EAN:
Part number:
Item no:
Product type
Torpedo fuse
Fuse size
4
Release characteristics
Time delay -T-
Nominal current - rounded value
4 A
Dim
(L x W) 38 mm x 10 mm
Datasheet (PDF)
Technical specifications
- Operating frequency 42 - 62 Hz
- Product type
Torpedo fuse
- Fuse size
4
- Release characteristics
Time delay -T-
- Dim
(L x W) 38 mm x 10 mm
- Content
10 pc(s)
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Switch-off capacity
100 kA
- Duty class
aM
- Nominal voltage
500 V AC
- Width
10 mm
- Length
38 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2151365 Legrand 013004 Torpedo fuse Fuse size = 4 4 A 500 V AC 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2151365 Legrand 013004 Torpedo fuse Fuse size = 4 4 A 500 V AC 10 pc(s)
Description
Legrand cylinder fuse, operating class am (slow-blow), rated current 4 A, size 10 x 38 mm, rated voltage 500 V AC, breaking capacity 100 kA, without indicator, operating class am - partial range protection of motor circuits, for use when only short-circuit protection is required.
