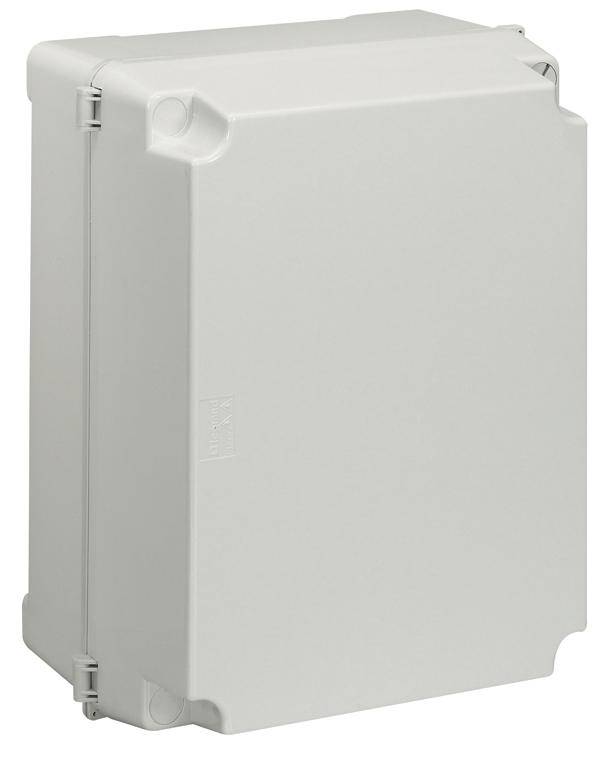

Legrand 035054 Casing 240 x 310 x 160 Plastic Light grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP55
Width
240 mm
Datasheet (PDF)
Technical specifications
- Mounting type: Surface-mounted
- Lid type: Closed
- Packaging type
Piece
- Product type
Casing
- Features
thermally resistive
- Material
Plastic
IP55
- Factory colour
Light grey
- Type
Type of cover: Cover
- Width
240 mm
- Height (min.)
310 mm
- Height
310 mm
- Content
1 pc(s)
- Type
035054
- Dim
(W x H x D) 240 x 310 x 160 mm
- Manufacturer part #
035054
- Depth
160 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2152983 Legrand 035054 Casing 240 x 310 x 160 Plastic Light grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2152983 Legrand 035054 Casing 240 x 310 x 160 Plastic Light grey 1 pc(s) Piece
Description
Legrand plastic housing, overdepth, rectangular 310 x 240 x 160 mm (H x W x D), protection class IP 55 – IK 07, smooth design, cover with 2 locking screws and 2 integrated hinges, light gray RAL 7035, self-extinguishing 750°C, temperature resistance: -20 °C to +50 °C. For industrial applications, devices can be mounted on a completely flat mounting plate.
