Legrand 049682 Timer digital 7 day mode IP20 Progammable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Shift preselection: Yes
- Manual operation: Yes
- Contact type: Changer
- Supply voltage frequency 50 - 60 Hz
- Number of channels: 2
- Mounting type: Front mounting 72x72 mm
- Product type
Timer
- Type
digital
- Features
Progammable
- Switching cycle
7 day mode
- Used at
Fixed
IP20
- No. of SPCs
28
- Operating voltage
230 V AC
- Switching current (max.)
8 A
- Shortest switching time
11 min
- Summer/winter time
Automatic
- Width
72 mm
- Height
110 mm
- Depth
44 mm
- Dim
(W x H x D) 72 x 110 x 44 mm
- Intervall settings
1 min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158008 Legrand 049682 Timer digital 7 day mode IP20 Progammable
User & Safety Instructions
User & Safety Instructions 2158008 Legrand 049682 Timer digital 7 day mode IP20 Progammable
Description

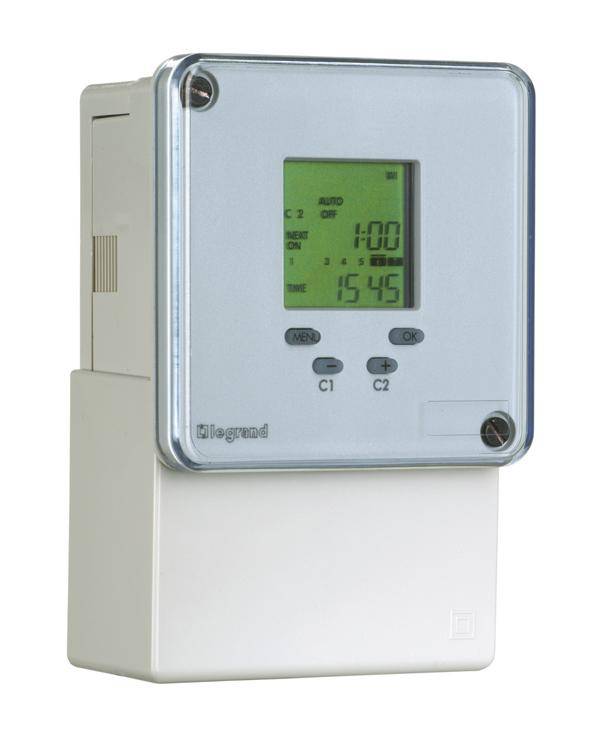

Legrand MaxiRex D72/2 Plus, digital weekly timer for front panel mounting and wall mounting, 2 channels, 28 switching programs (14 per channel), operating voltage 230 V 50/60 Hz, program creation directly on the device. Duration ON/OFF, automatic summer/winter time changeover, 6 years power reserve, accuracy +/- 1 sec/day, shortest switching time: 1 min, front panel installation dimension: 72 x 72 mm. Switching output: 2 changeover contacts.
