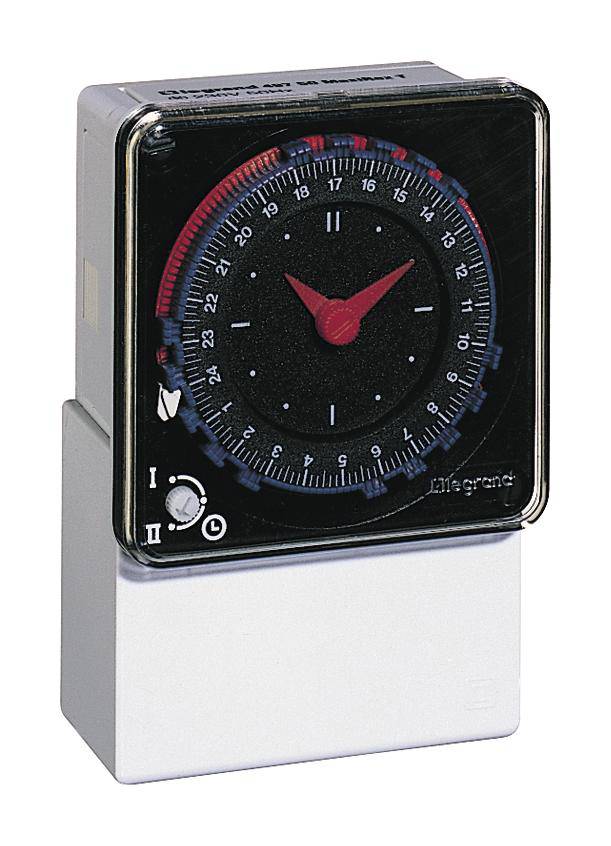

Legrand 049752 Timer analogue 7 day mode IP20 Programmable ON/AUTO/OFF settings
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Shift preselection: Yes
- Manual operation: Yes
- Contact type: Changer
- Supply voltage frequency 50 Hz
- Number of channels: 1
- Mounting type: Front mounting 72x72 mm
- Product type
Timer
- Type
analogue
- Features
Programmable ON/AUTO/OFF settings
- Switching cycle
7 day mode
- Used at
Fixed
IP20
- Operating voltage
230 V AC
- Switching current (max.)
16 A
- Shortest switching time
1180 min
- Width
72 mm
- Height
110 mm
- Depth
44 mm
- Dim
(W x H x D) 72 x 110 x 44 mm
- Intervall settings
3 h
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158013 Legrand 049752 Timer analogue 7 day mode IP20 Programmable ON/AUTO/OFF settings
User & Safety Instructions
User & Safety Instructions 2158013 Legrand 049752 Timer analogue 7 day mode IP20 Programmable ON/AUTO/OFF settings
Description
Legrand MicroRex W, analogueue weekly timer switch with synchronous motor (grid-synchronous accuracy) for front panel mounting and wall mounting, 1 channel, operating voltage 230 V 50 Hz. With manual switch (ON/OFF/AUTOMATIC). Pointer can be rotated forwards and backwards, making it easy to change over (e.g. summer/winter time), shortest switching time 3 hours. Switching output: 1 changeover contact.
