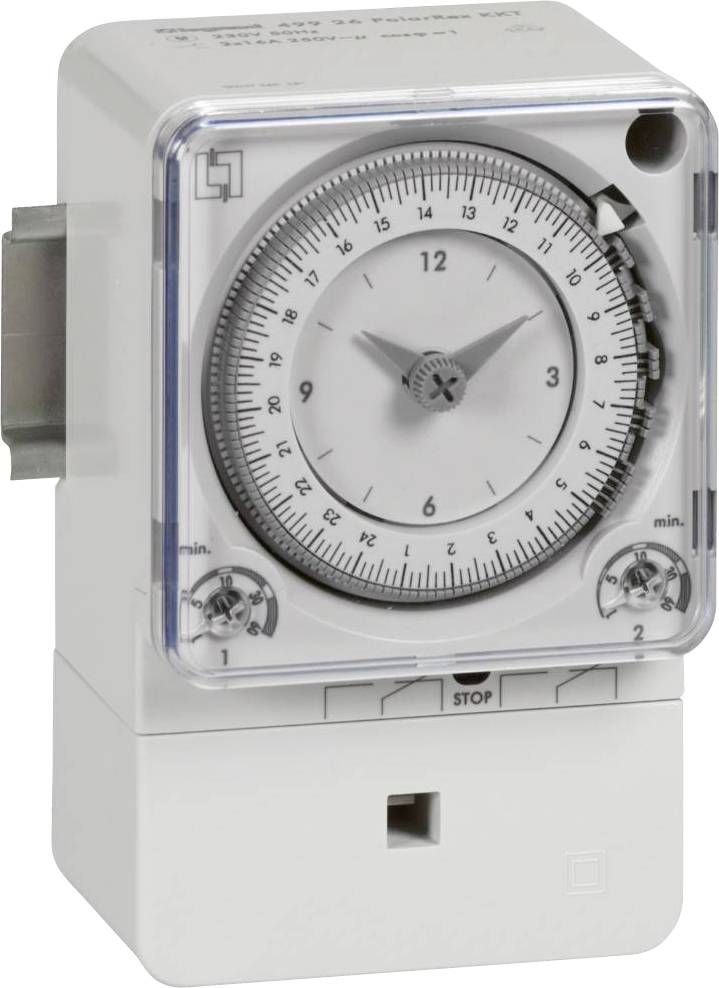

Legrand 049927 Defrost timer analogue 24h mode IP20 Power reserve
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Manual operation: Yes
- Contact type: Changer
- Supply voltage frequency 50 Hz
- Number of channels: 2
- Product type
Defrost timer
- Type
analogue
- Features
Power reserve
- Switching cycle
24h mode
- Used at
Indoors
IP20
- Operating voltage
230 V AC
- Switching current (max.)
16 A
- Shortest switching time
11 min
- Width
72 mm
- Height
113.7 mm
- Depth
53.4 mm
- Dim
(W x H x D) 72 x 113.7 x 53.4 mm
- Intervall settings
30 min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158158 Legrand 049927 Defrost timer analogue 24h mode IP20 Power reserve
User & Safety Instructions
User & Safety Instructions 2158158 Legrand 049927 Defrost timer analogue 24h mode IP20 Power reserve
Description
Legrand PolaRex QKKT, analogueue defrosting timer with quartz motor (accuracy +/- 1 sec/day, power reserve 100 hours), 2 channels, operating voltage 230 V 50/60 Hz. Timer with day disc and adjustable short-time programs, switching time adjustable from 1 to 60 min. The shortest switching sequence (start of a switching time): 30 min. Mounting on rail EN 60715 or surface-mounted, dimensions (HxB): 113.7 x 72 mm. Switching output: 2 changeover contacts.
