Legrand 062601 Display Wall flush-mount
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Dim
(W x H x D) 31.55 x 117 x 112 mm
- Product type
Display
- Mounting type
Wall flush-mount
- Width
31.55 mm
- Height
117 mm
- Depth
112 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2156258 Legrand 062601 Display Wall flush-mount
User & Safety Instructions
User & Safety Instructions 2156258 Legrand 062601 Display Wall flush-mount
Description

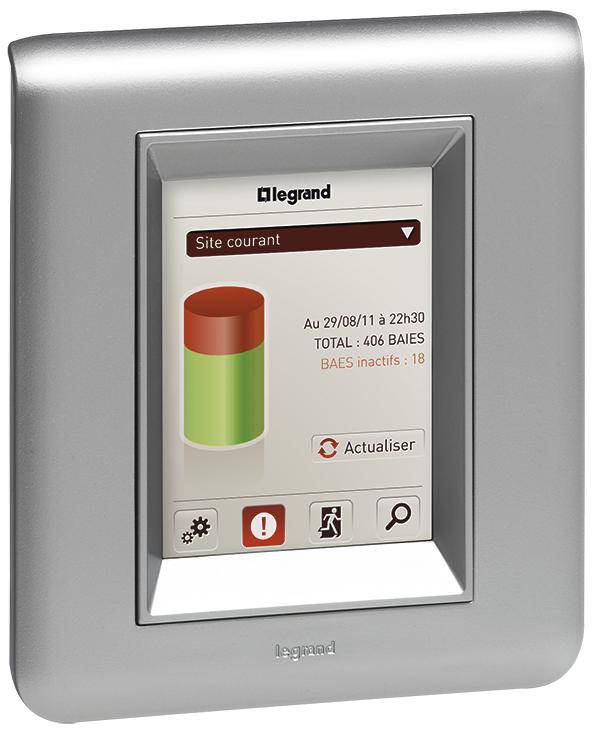

3.5 Touch Screen control screen for monitoring of addressed individual battery lights, which are connected to the monitoring center. The monitoring center for addressable safety lights (order no. 062600). The touch screen is connected to the monitoring center via a RJ45 cable. The control screen displays the operating status of the safety light: – Display defective safety lights – Alarm and operating mode – Position of defective safety lights Power supply: 27 V 600 mA to the auxiliary power supply unit used (order no. 346020) Touch screen frame white (order no. 078839) UP-socket for 3.5" touch-screen control screen (Order No. 080124)"
