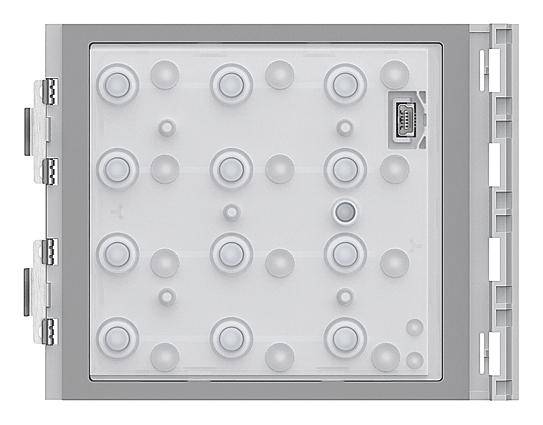

Legrand 353000 Door intercom accessories Corded Codelock/keypad unit Stone grey

Code lock/keyboard module. The code lock/keyboard module can be used for 2 functions: As a code lock: To activate the door opener relay on the loudspeaker module or the changeover contact (C-NO-NC) directly on the code lock module. As additional keyboard: When connected directly to the graphic display Art. 352500 subscribers can be called via an assigned number. In addition, the door opener relay on the loudspeaker module can be activated. Has a contact relay (C-NO-NC) and terminals (CP-P1-P2) for connecting an external door opener button. The module can be programd in two ways: Via the keyboard (observe the installation instructions) - Programming via the PC, whereby the program files are transferred to the module. Includes a program reset button and status LED to indicate access status. Nightly LED backlight. Complete with a front panel. The module can be configured either with the help of confi gurators or via PC and software TiSferaDesign. Note: If the code lock/keyboard module is connected to a loudspeaker or graphics module using the supplied flat cable, the changeover contact is deactivated and the loudspeaker module's door opener contact is activated. The module can also be operated with an autonomous BUS power supply unit in stand-alone mode. When combined with the Basic Art audio speaker module. 351000 the code lock can only be used in stand-alone mode.
