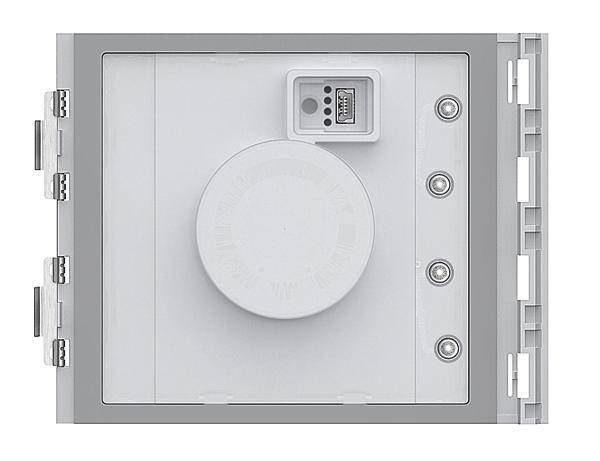

Legrand 353200 Door intercom accessories Transponder Stone grey

RFID transponder reader. RFID transponder reader for opening the door by approaching transponder keys (electronic keys). Manages up to 2,000 transponders and has contact relays (C-NO-NC) and terminals (CP-P1-P2) for connecting an external door opener button. Programming of the electronic key (transponder) to the door opening is done either via the module or via PC, by transferring the program files to the module. Includes a program reset button and status LED to indicate access status. LED backlight Complete with a corresponding front panel. Connection via the corresponding connection cable included in the delivery. The module can be configured either with the help of configurators or via PC and software TiSferaDesign. Note: If the transponder module is connected to a loudspeaker using the supplied flat cable, the changeover contact is deactivated and the door opener contact on the loudspeaker module is activated. The module can also be operated with an autonomous BUS power supply unit in stand-alone mode. When combined with the Basic Art audio speaker module. The transponder module can only be used in stand-alone mode.

This text is machine translated.
