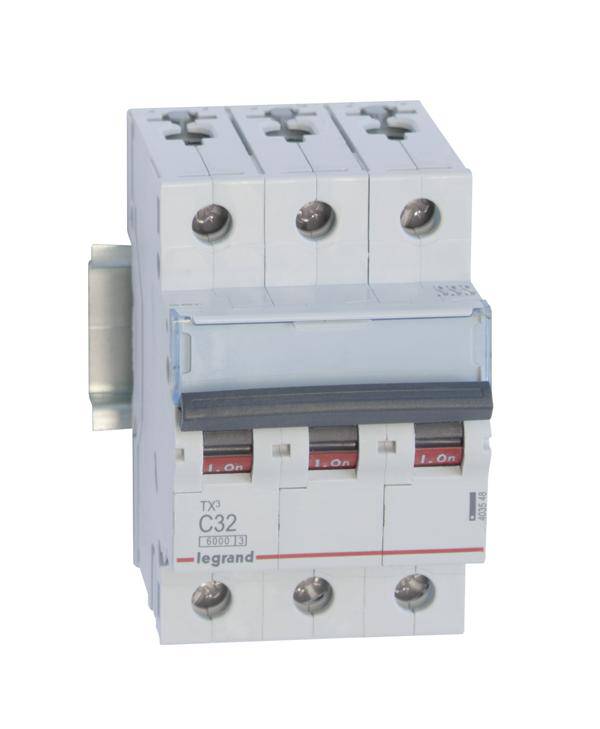

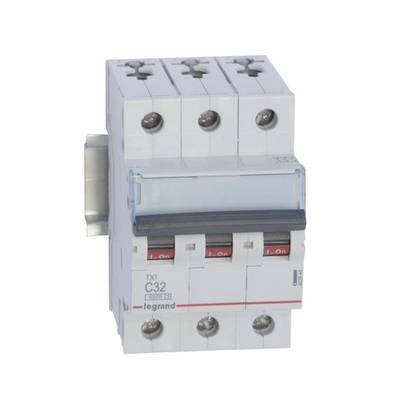

Legrand 403548 Legrand 403548 Circuit breaker 32 A 400 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
32 A
RoHS-compliant
Yes
Datasheet (PDF)
Technical specifications
- Pollution level: 2
- Mains frequency: 50/60 Hz.
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- RoHS-compliant
Yes
- Nominal current - rounded value
32 A
- Nominal current
32 A
- Content
1 pc(s)
- Switch-off capacity
6 kA
- Nominal voltage
400 V AC
- Depth
44 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2156081 Legrand 403548 Legrand 403548 Circuit breaker 32 A 400 V AC
User & Safety Instructions
User & Safety Instructions 2156081 Legrand 403548 Legrand 403548 Circuit breaker 32 A 400 V AC
Description
The C characteristic curve is intended for line protection for devices with high inrush currents (e.g. motors and transformers). According to EN 60898-1, VDE 0641-11, EN 60947-2, Technical data: Rated voltage 400 V, 50/60 Hz, rated breaking capacity 6 kA as per EN 60898-1, energy limitation class 3, fixing on top hat profile rail EN 60715 by snap-on quick mounting, clear information on the front of each device, clear switching position indicator red/green on the gear lever (lockable), with labeling window, with under-plug protection for safe insertion of the conductor in the lift, mounting of auxiliary devices possible.
