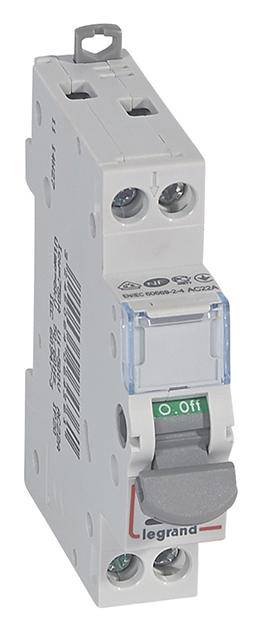

Legrand 406436 Legrand 406436 Isolator switch 400 V 20 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Switching voltage
400 V
Switching current (max.)
20 A
Type
Knob
Connection
Screws
Datasheet (PDF)
Technical specifications
- Number of poles: 2
- Rated operating voltage: 400 V
- Device type: Built-in device Fixed installation technology
- Rated continuous current 20 A.
- Product type
Isolator switch
- Type
Knob
- Connection
Screws
- Factory colour
Multicolour
- Switching voltage
400 V
- Switching current (max.)
20 A
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP20
- Content
1 pc(s)
- Type
Legrand 406436
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2151656 Legrand 406436 Legrand 406436 Isolator switch 400 V 20 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2151656 Legrand 406436 Legrand 406436 Isolator switch 400 V 20 A 1 pc(s)
Description
Legrand switch disconnectors DX3, 2-pole, illuminated, 20A 400 VAC, to EN 60947-3, EN 60669-2-4. Usage category AC-22A. Mounting on top hat profile rail EN 60715 by snap-in quick attachments, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, single-pole removable with Legrand pin comb rails, attachment of auxiliary devices possible.
