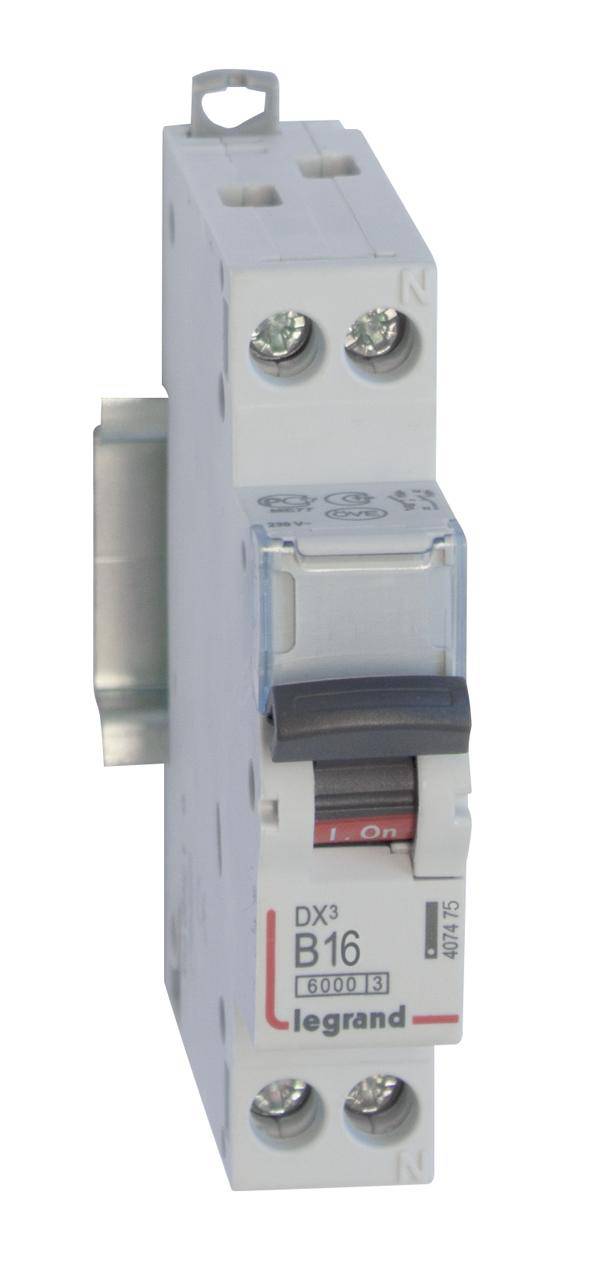

Legrand 407475 Legrand 407475 Circuit breaker 16 A 230 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Release characteristics
B
Nominal current - rounded value
16 A
RoHS-compliant
Yes
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Pollution level: 2
- Frequency: 50 Hz
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
B
- RoHS-compliant
Yes
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Dim
(W x H x D) 95.0000 x 18.0000 x 44 mm
- Content
1 pc(s)
- Switch-off capacity
6 kA
- Nominal voltage
230 V AC
- Width
95.0000 mm
- Height
18.0000 mm
- Depth
44 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2153834 Legrand 407475 Legrand 407475 Circuit breaker 16 A 230 V AC
User & Safety Instructions
User & Safety Instructions 2153834 Legrand 407475 Legrand 407475 Circuit breaker 16 A 230 V AC
Description
The B characteristic curve is primarily intended for line protection in light and socket circuits. According to EN 60898-1, VDE 0641-11, EN 60947-2, Technical data: Rated voltage 230 V, 50 Hz, rated breaking capacity 6 kA as per EN 60898-1, energy limitation class 3, mounting on top hat profile rail EN 60715 through two snap-on quick fastenings, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, single-pole busbar with Legrand pin comb rails, attachment of auxiliary devices possible.
This text is machine translated.
