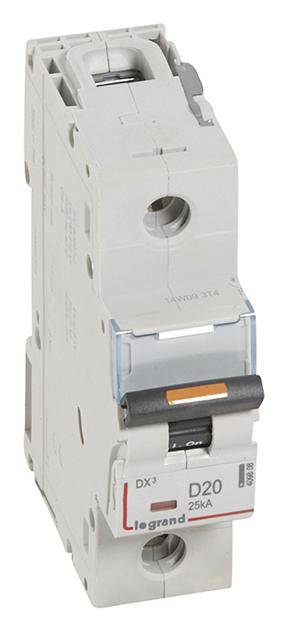

Legrand 409808 Legrand 409808 Circuit breaker 20 A 400 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
D
Nominal current - rounded value
20 A
Nominal current
20 A
Datasheet (PDF)
Technical specifications
- Pollution level 3
- Mains frequency: 50/60 Hz.
- Protection class: IP20
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
D
- Nominal current - rounded value
20 A
- Nominal current
20 A
- Content
1 pc(s)
- Switch-off capacity
25 kA
- Nominal voltage
400 V AC
- Depth
47 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158461 Legrand 409808 Legrand 409808 Circuit breaker 20 A 400 V AC
User & Safety Instructions
User & Safety Instructions 2158461 Legrand 409808 Legrand 409808 Circuit breaker 20 A 400 V AC
Description
The D characteristic curve must be provided for line protection in power circuits with very high inrush currents. According to EN 60947-2, Technical data: Rated voltage 400 V, 50/60 Hz, rated breaking capacity 25 kA according to EN 60947-2, mounting on top hat profile rail EN 60715 by snap-on quick mounting, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, attachment of auxiliary devices possible.
