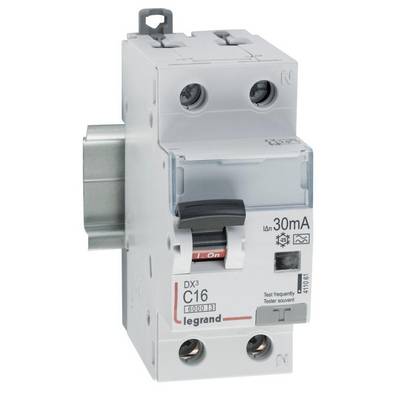

Legrand 411061 RCBO 16 A 230 V AC
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
C
Nominal current - rounded value
16 A
Switch-off capacity
6 kA
Datasheet (PDF)
Technical specifications
- Pollution level: 2
- Frequency: 50 Hz
- Number of poles secured: 1
- Protection class: IP20
- Width in division units: 2
- Product type
RCBO
- Number of pins
2
- Release characteristics
C
- Factory colour
Multicolour
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
6 kA
- Nominal voltage
230 V AC
- Depth
44 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2151541 Legrand 411061 RCBO 16 A 230 V AC
User & Safety Instructions
User & Safety Instructions 2151541 Legrand 411061 RCBO 16 A 230 V AC
Description
Legrand FI/LS-circuit breaker DX3, type A, for alternating and pulsating DC fault currents. According to EN 61009-1, VDE 0664-20, undelayed. LS circuit breaker part: C characteristic curve. Rated voltage: 230 V~ , rated breaking capacity ICN 6 kA, surge current resistant up to 250 A, trigger display: Blue=fault current or test key tripping, colorless= short-circuit or manual tripping. Mounting on top hat profile rail EN 60715 by snap-in quick attachments, clear information on the front of each device, clear switching position indicator red/green on the shift lever (lockable), with labeling window, with under-plug protection for the safe insertion of the conductor in the lift clamp, attachment of auxiliary devices possible.
