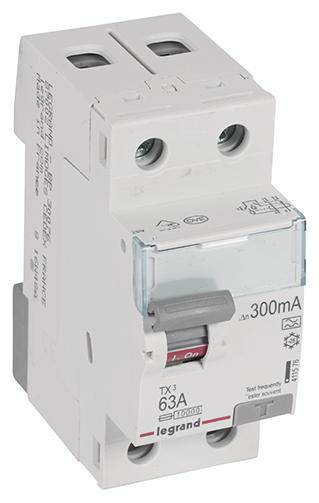

Legrand 411576 411576 RCCB A 63 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
A
Nominal current - rounded value
63 A
Nominal current
63 A
Datasheet (PDF)
Technical specifications
- Frequency: 50 Hz
- Protection class: IP20
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Switch-off capacity
10 kA
- Content
1 pc(s)
- Nominal voltage
230 V
- Depth
44 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2154632 Legrand 411576 411576 RCCB A 63 A 230 V
User & Safety Instructions
User & Safety Instructions 2154632 Legrand 411576 411576 RCCB A 63 A 230 V
Description
Legrand FI-circuit breaker TX3, type A, for alternating and pulsating DC fault currents. According to VDE 0664-10, EN 61008-1, instantaneous, rated voltage 2-pole: 230 V~ / 4-pole : 400 V~, rated frequency 50 Hz , rated short-circuit current Inc 10 kA at suitable pre-fuse , surge current resistant to 250 A, rated breaking capacity in = 630 A, rated fault breaking capacity I &Delta, m= 1000 A, mounted on top hat profile rail EN 60715 by rapid locking, Clear information on the front of each device, clear position indicator red/green on the shift lever (lockable), with labeling window, with under-plug protection for the safe insertion of the conductor in the lift clamp, attachment of auxiliary devices possible.
