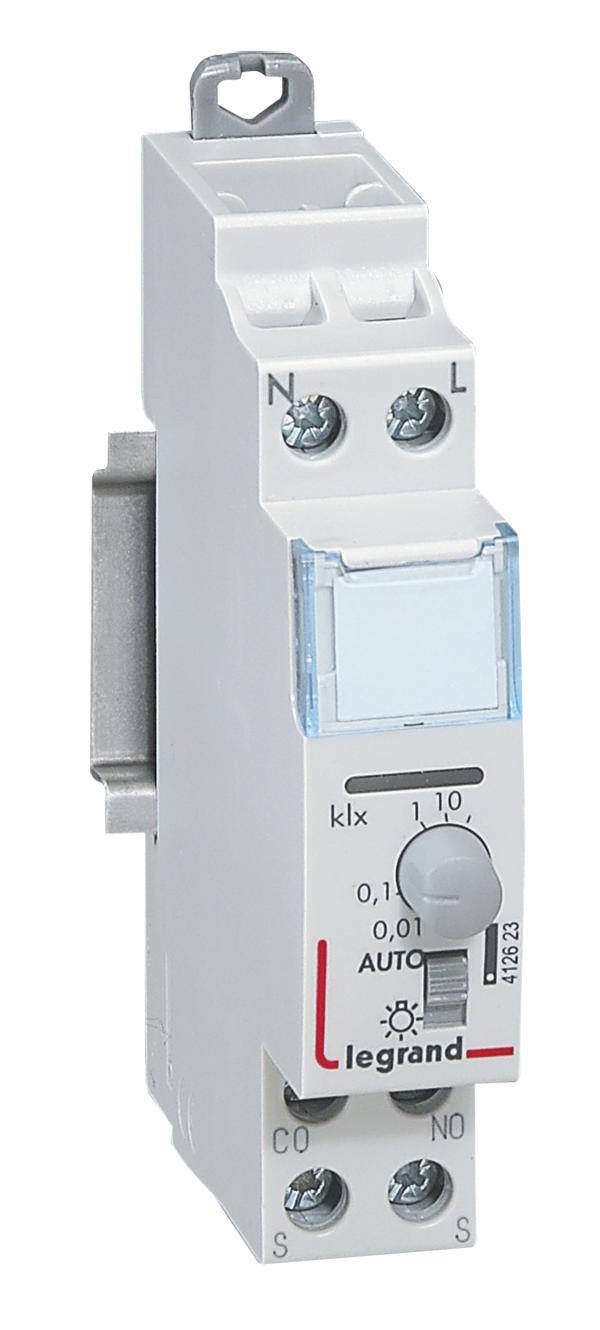

Legrand 412623 Twilight switch 1 pc(s) 230 V
EAN:
Part number:
Item no:
Product type
Twilight switch
Max. operating voltage
230 V
Type
412623
Content
1 pc(s)
Operating voltage
230 V
Datasheet (PDF)
Technical specifications
- Rated frequency 50 Hz
- Max. Incandescent lamp load 1200 W.
- Width in division units: 2
- Setting range brightness value: Up to 2000 lx
- Product type
Twilight switch
- Type
412623
- Content
1 pc(s)
- Operating voltage
230 V
- Max. operating voltage
230 V
- Operating voltage
230 V (max)
- Switching current (max.)
5 A
- Mounting type
DIN rail
IP20
- Length
60 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158266 Legrand 412623 Twilight switch 1 pc(s) 230 V
User & Safety Instructions
User & Safety Instructions 2158266 Legrand 412623 Twilight switch 1 pc(s) 230 V
Description
Legrand LuxoSwitch, 1-module, twilight switch incl. light catcher 412860, 1 channel, operating voltage 230 V 50/60 Hz, setting range 1 - 100,000 Lux, on and off delay approx. 90 sec., manual switch on-automatic, with labeling window, zero-crossing switching. Switching output: 1 NO contact.
