Legrand 765037 1 pc(s)

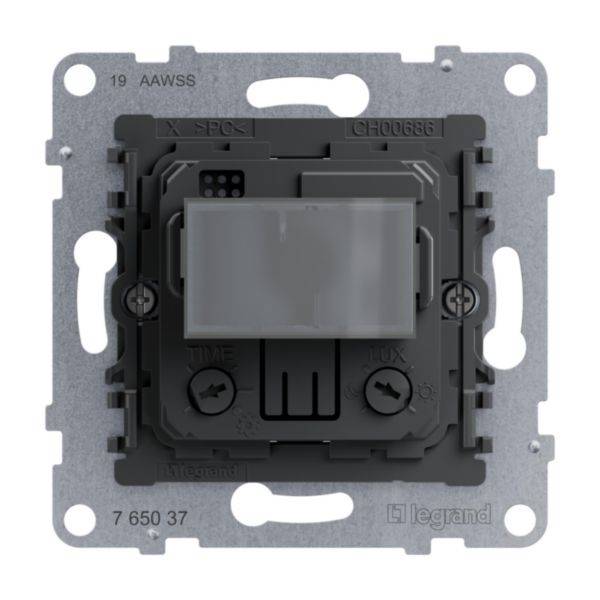

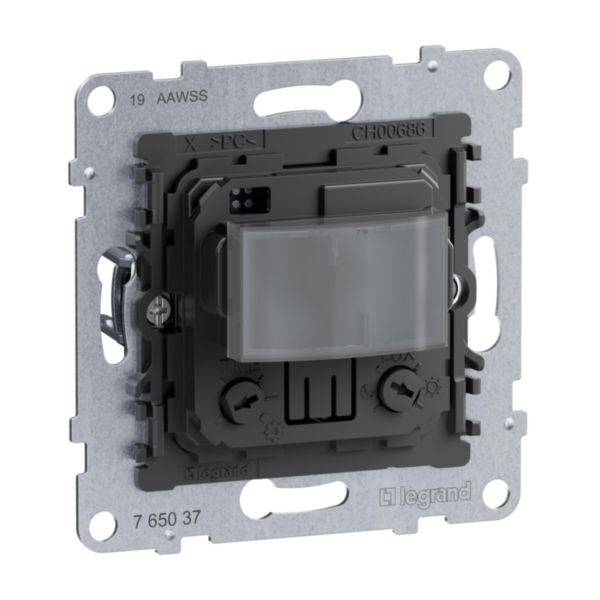

Motion detector without neutral conductor connection (2-conductor) for automatic switching of consumers in the detection of persons (heat sources) within the detection range. Equipped with electronic overvoltage and short-circuit protection. The insert is suitable for spreader claw and screw fastening and is supplied with a transparent dust cover. Features: – Recording range: 170°, – Suitable for extension, – with or without hand switch, – Compatible with all types of lamp, – Detection range variable: Max. 8 m, – Switch-off delay: 5 sec. - 30 min., – Brightness threshold: 5 – 1275 Lux, – 4 levels of sensitivity setting, – Standby consumption 0.01 W. Suitable for the following load starts: – LEDs: 2 to 100W, – compact fluorescent lamps: 2 to 100 W, – halogen lamps, incandescent lamps: 2 to 150 W, – LEDs, compact fluorescent lamps, halogen lamps, fluorescent lamps with ferromagnetic or electronic ballast: 2 to 150 VA. The extension input can be used to control up to 10 detectors using a button (NC contact). With sensors connected in parallel (max. 3) the minimum load increases (see data sheet). The cover is available with or without manual operation and must be ordered separately. For complete with SEANO, SEANO+ and SEANO Natura covers.

This text is machine translated.
