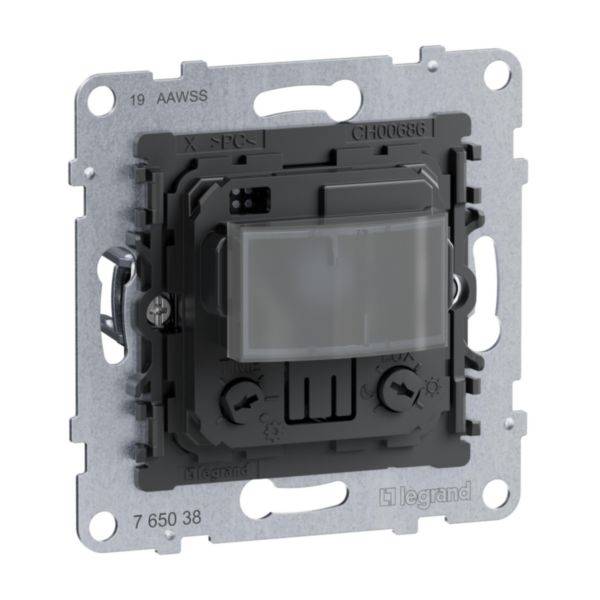

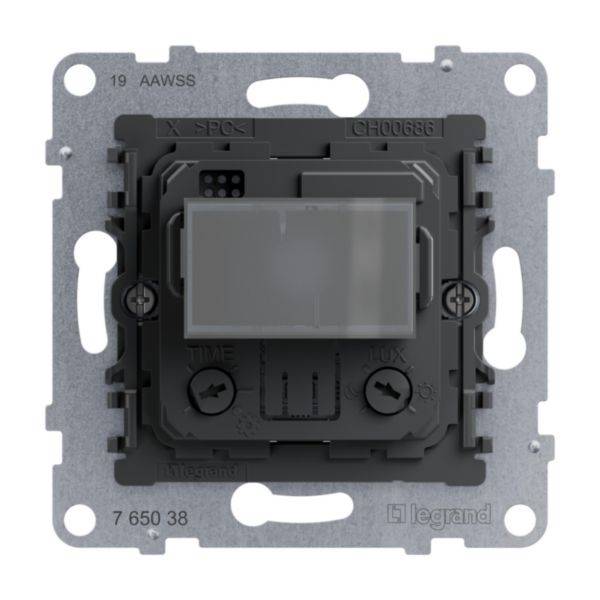

Legrand 765038 1 pc(s)

Motion detector with neutral conductor connection (3-conductor) for automatic switching of consumers in the detection of persons (heat sources) within the detection range. Equipped with electronic overvoltage and short-circuit protection. The insert is suitable for spreader claw and screw fastening and is supplied with a transparent dust cover. Features: – Detection range: 170°, – suitable for extension, – with or without hand switch, – compatible with all types of lamp, – Detection range variable: Max. 8 m, – Switch-off delay: 5 sec. - 30 min., – Brightness threshold: 5 – 1275 Lux, – 4 levels of sensitivity adjustment. Suitable for the following load starters: – LEDs: 0 to 500W, – Compact fluorescent lamps: 0 to 500 W, – Halogen lamps, bulbs: 2000 W, – LEDs, compact fluorescent lamps, Halogen lamps, fluorescent lamps with ferromagnetic or electronic ballast: 1000 W. Via the extension input max. 10 detectors can be controlled via a push-button. Parallel connection of several motion detectors is possible (max. 10). With the Master/slave installation, it is possible to control over a Master 10 slaves. The cover is available with or without manual operation and must be ordered separately. For complete with SEANO, SEANO+ and SEANO Natura covers.
