Legrand 765805 1 pc(s)

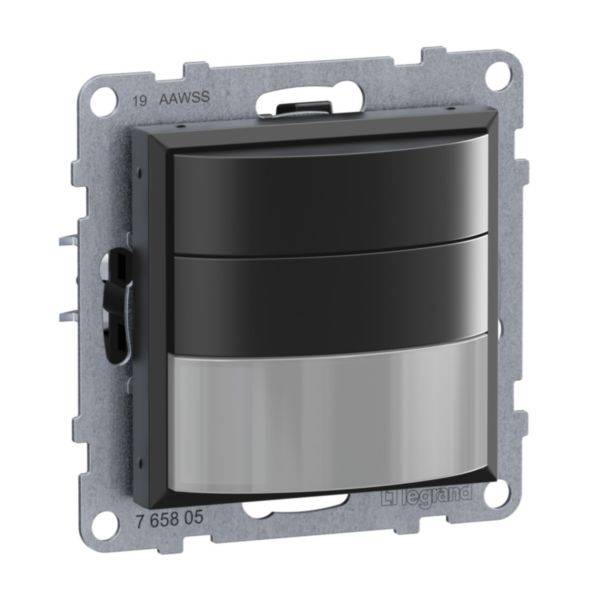

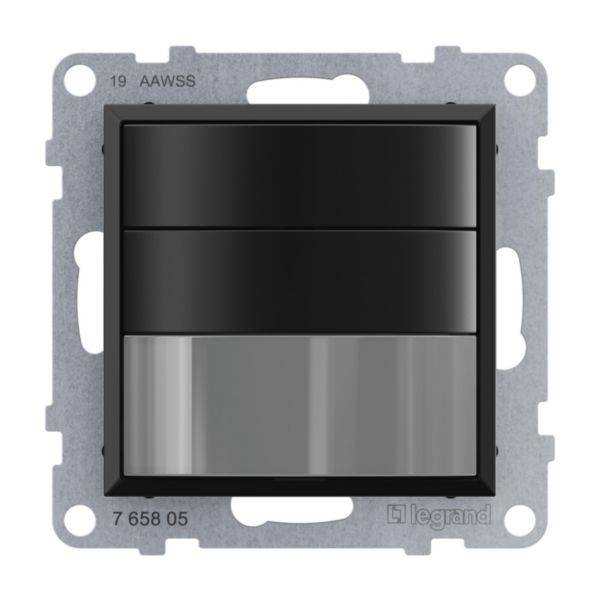

3-conductor motion detector (with N conductor) with or without manual operation. High-precision 180° infrared motion detector with a range of 5 to 20 m. Quick and easy 3-wire mounting. Attractive design. Integrated button for manual override, parallel connection of sensors possible. Activation by means of external buttons (extension input). The manual switch can be activated or deactivated by means of a micro switch behind the sensor. Features: – With N conductor, – with manual operation (also for control of continuous on and continuous off as well as automatic mode), – suitable for extensions, – coverage range: 180°, – detection range: 5 – 20 m adjustable, – brightness threshold: 2 – 1000 lux, – switch-off delay: 30 sec. – 30 min. Parallel connection of several motion detectors is possible. The settings are made using potentiometers and micro switches. Special functions: – Normal operation / Test mode, – Automatic operation / Semi-automatic (continuous on, continuous off, automatic operation by manual operation), – Manual operation activated / deactivated, – Manual on or off / Press key (delay time is restarted). Delivery including cover in the color version painted black. For complete with SEANO, SEANO+ and SEANO Natura covers.

This text is machine translated.
