Buy Legrand Complete Flush-mount, PG socket (+ lid) Plexo Grey 069833L 1 pc(s)

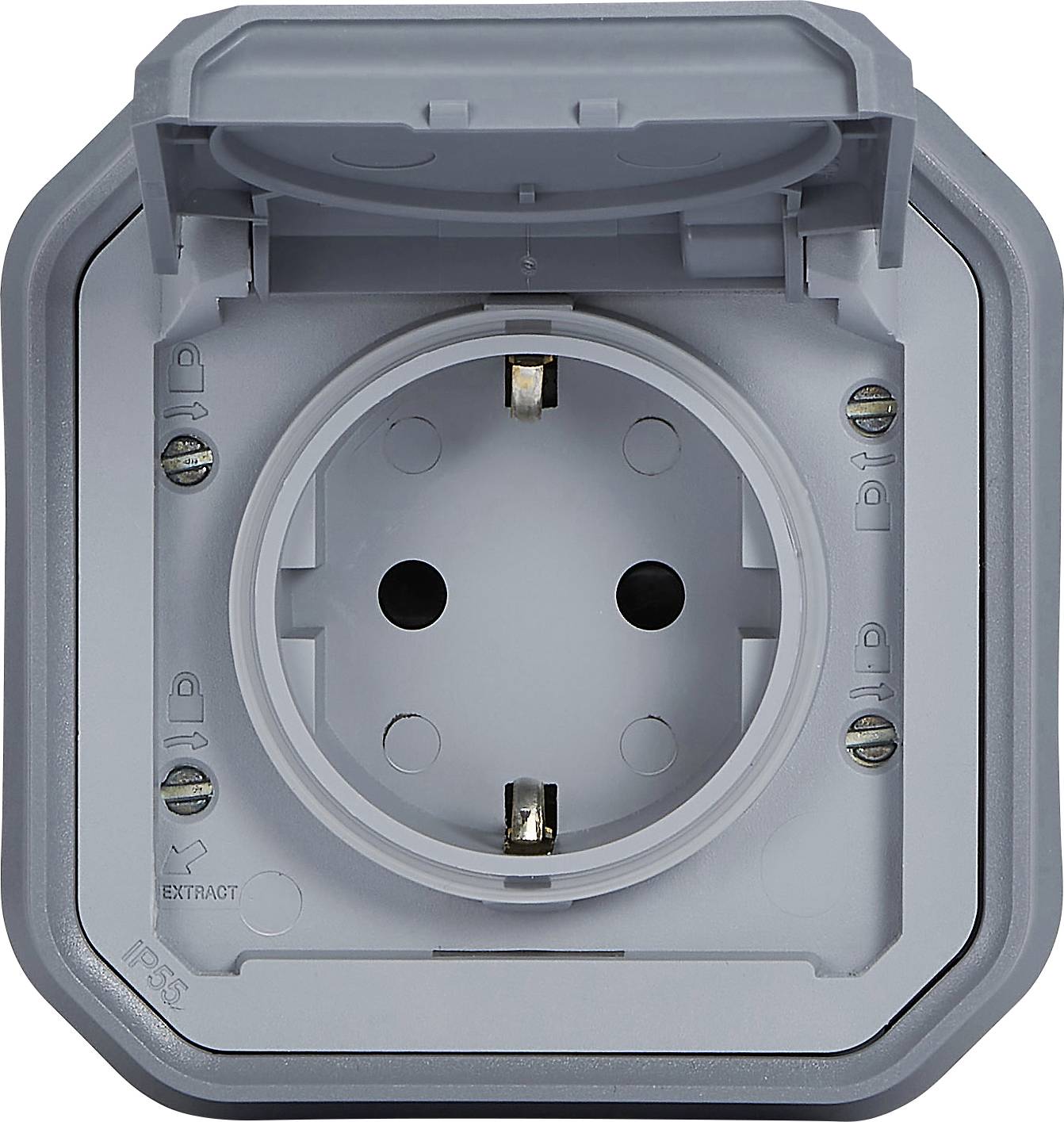

Socket with protective cover, grey colour, suitable for outdoor use.

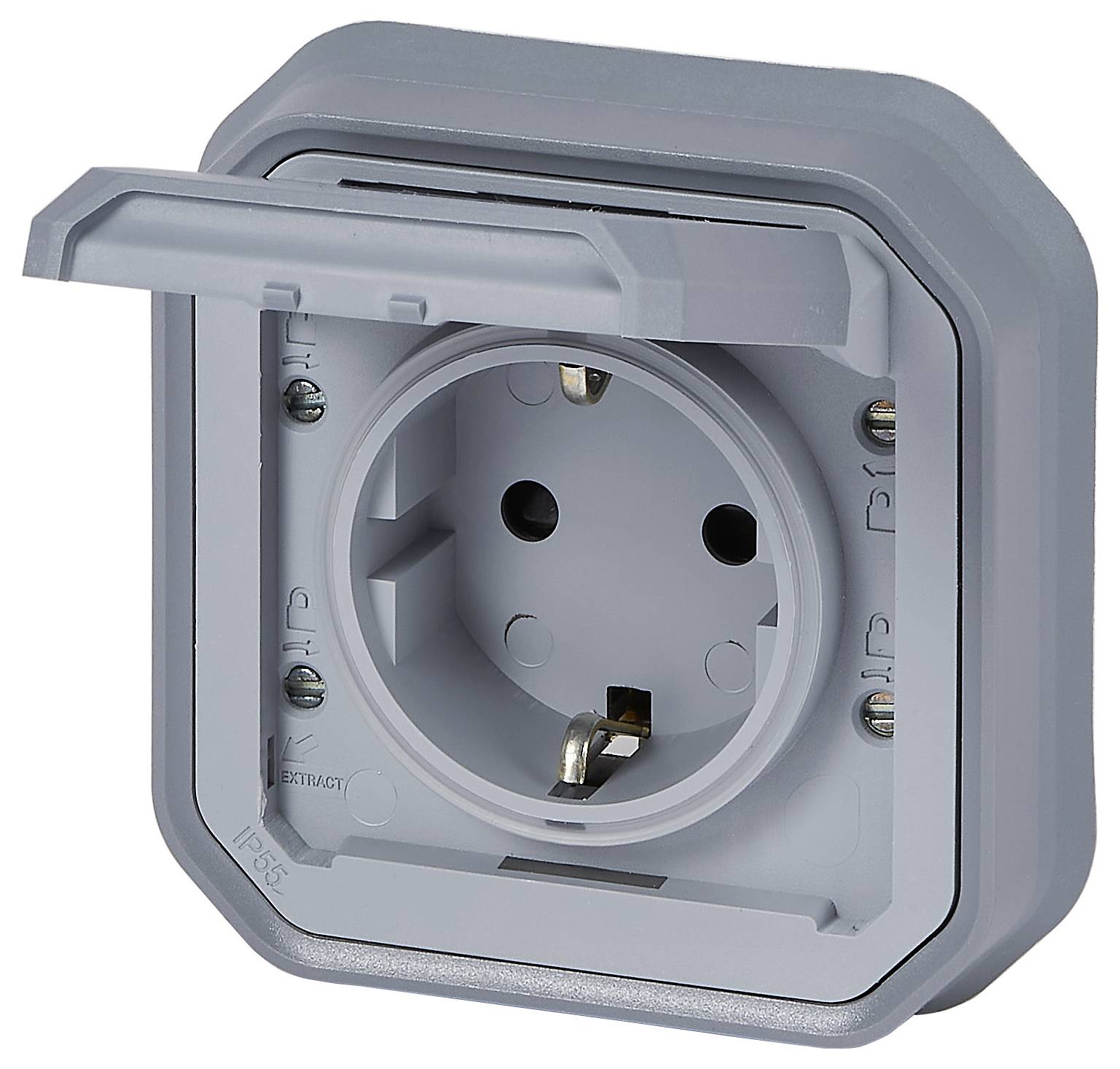

A grey protective earth socket with a hinged cover, suitable for outdoor areas, open, showing connection details.

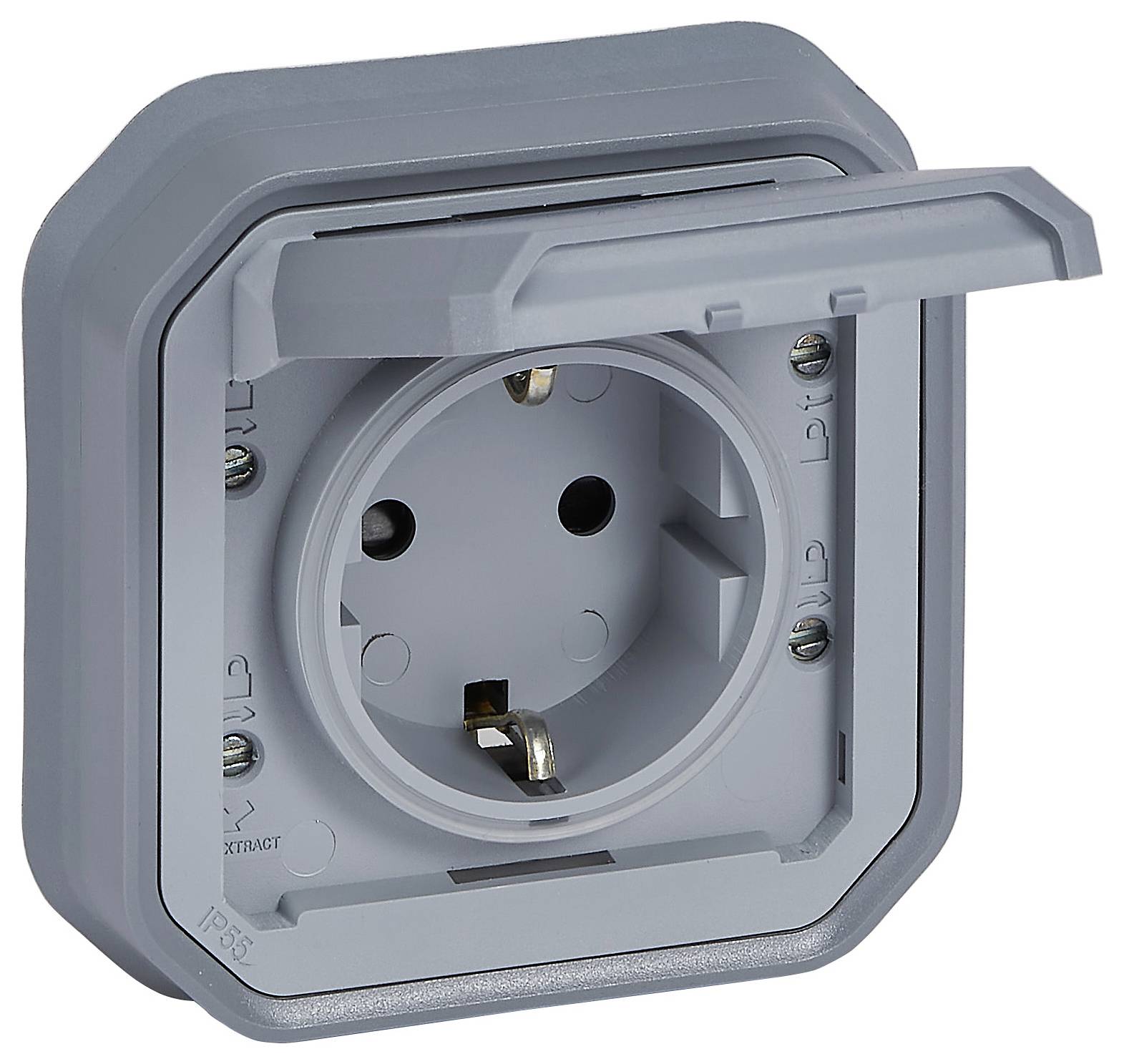

A grey, weatherproof socket with a hinged lid, suitable for outdoor use, protection rating IP55. Ideal for secure power supply outdoors.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 19.32 / piece)

€ 19.32

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Legrand, Plexo NEW attachment for damp room socket

Safety contact standard
Including hinged cover
Protection against contact
Installation with screw terminals
250 V/16 A
Protection class IP44 - IK07
Colour: grey.

Technical specifications

Type: Legrand, Plexo NEW attachment for damp room socket

Switch type function: Flush-mount
PG socket (+ lid)

Product type: Wet room switch product range

Switch type component: Complete

Type series: Plexo

Factory colour: Grey

Nominal voltage: 250 V

Nominal current: 16 A

: IP55
IK08

Temperature range: -10 - +40 °C

Content: 1 pc(s)

Material: Thermoplastic

Weight: 1000 g

UKCA: yes

Description

Plexo New Damp room Flush-mounted protective contact socket, Screw terminals (SK) with increased protection against accidental contact, IP 44, IK 08, in the color: Grey

This text is machine translated.

Features

ATTACHMENT: Included in delivery is an attachment for the Plexo Wet Room socket program, which can be mounted with screw terminals. The electrical wires are inserted into a terminal and tightened with a screw.
The simple design of the Plexo moisture-proof socket outlet is perfect for effortless and stylish installation in your basement, outdoor area, garage or other damp rooms in your house.
SYSTEM STRUCTURE: The system structure consists of basic body, insert, membrane, housing, cover and wall compensation. These components can be combined to suit your needs and allow you to build flexibly and individually according to your needs.
FLEXIBLE ALIGNMENT: By unlatching, turning and attaching the cover, you can easily switch between horizontal and vertical mounting in your Plextor application with the same surface or flush mounted housing.
REMOVABLE INSERT: The removable insert enables a particularly easy installation. Before engaging the insert, the cabling can be carried out separately from the base plate without any problem.
CONVENIENT WIRING: The low depth of the base plate allows convenient wiring without separating the insert from the base. Because of the generous wiring space there is sufficient space for cabling and installation.
MOUNTING: The same rotating screws make the installation easier. The insert can be removed by pressing on the side, WAS offers additional flexibility. The cross-shape on the rear side of the box also provides for a reinforced bearing surface.
Plaster balancing: Thanks to the plaster compensation seal, you can attach without gaps. The seal provides for a clean installation and compensates for deformations and unevenness at the mounting surfaces without any problem.
RELIABLE SEAL: In order to achieve an optimum seal, the rear cable inlet, the mounting holes and the diaphragm on the side are provided with a seal and thus provide for an optimum weather and weather resistance.
HIGH DEGREE OF PROTECTION: Thanks to the high degree of protection IP44 (with closed lid IP55) - IK07 the socket is dust- and dirt-proof as well as also water-proof. The socket is also fully protected against accidental contact.
