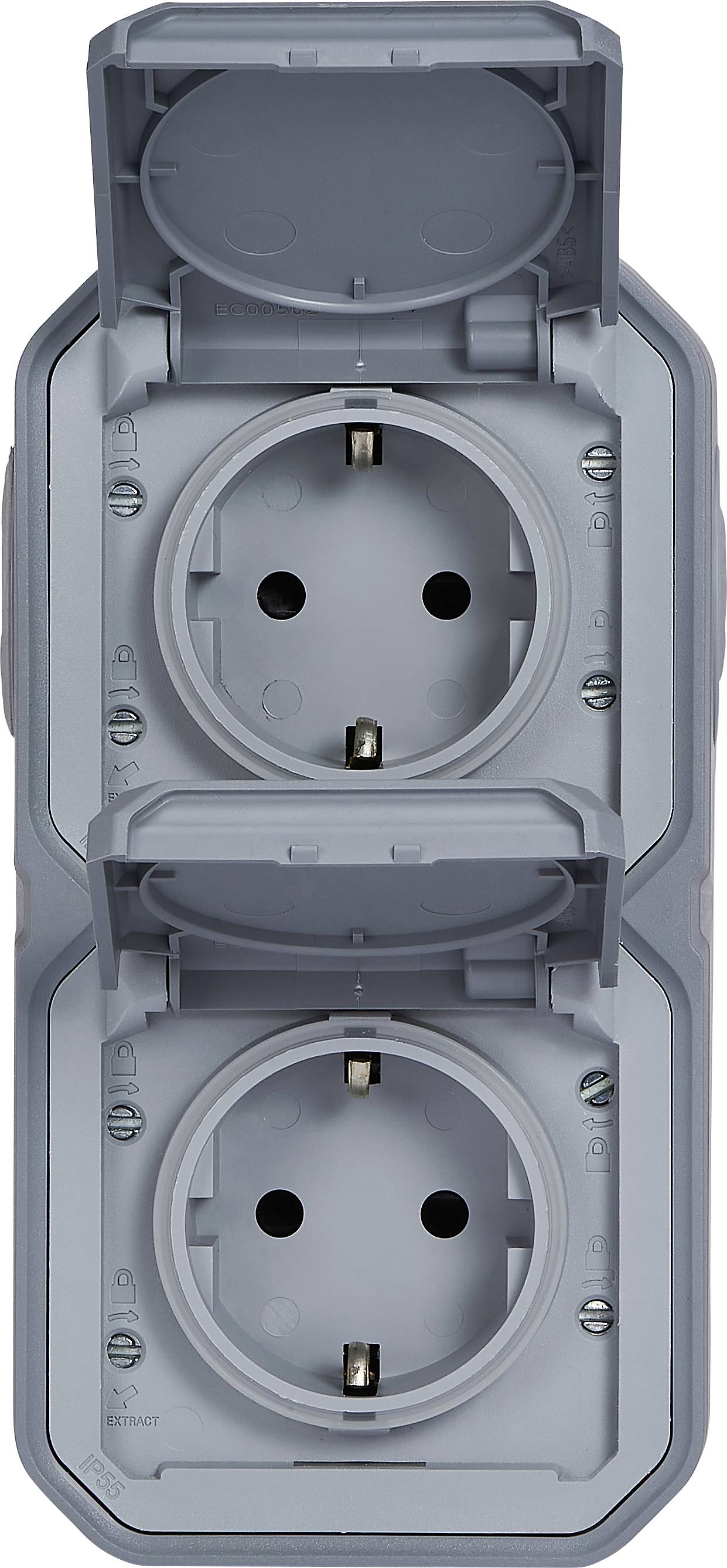

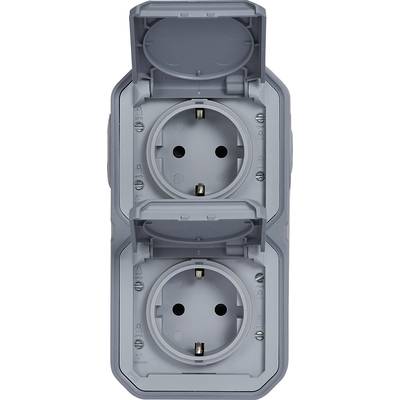

Legrand Complete Surface-mount, Two gang socket, PG socket (+ lid) Plexo Grey 069744L 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
4% = € 0.79
€ 16.85
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 17.64 / piece)
€
Highlights & Details
Legrand, Plexo NEW Wet Room Socket
- 2-way
- Safety contact standard
- Including hinged cover
- Protection against contact
- Plug terminals
- pre-wired
- vertical
- Protection class IP44 - IK07
- Colour: grey.
Technical specifications
- Type
Legrand, Plexo NEW Wet Room Socket
- Switch type function
Surface-mount
Two gang socket
PG socket (+ lid)
- Product type
Wet room switch product range
- Switch type component
Complete
- Type series
Plexo
- Factory colour
Grey
- Nominal voltage
250 V
- Nominal current
16 A
IP44
IK07
- Temperature range
-10 - +40 °C
- Content
1 pc(s)
- Material
Thermoplastic
Description
Plextor New damp room surface mounted 2-way pre-wired ground contact socket vertical plug terminals (SL) with increased touch protection, IP 44, IK 08, in the color: Grey
This text is machine translated.
This text is machine translated.
Features
- The simple design of the Plexo moisture-proof socket outlet is perfect for effortless and stylish installation in your basement, outdoor area, garage or other damp rooms in your house.
- SYSTEM STRUCTURE: The system structure consists of basic body, insert, membrane, housing, cover and wall compensation. These components can be combined to suit your needs and allow you to build flexibly and individually according to your needs.
- REMOVABLE INSERT: The removable insert enables a particularly easy installation. Before engaging the insert, the cabling can be carried out separately from the base plate without any problem.
- CONVENIENT WIRING: The low depth of the base plate allows convenient wiring without separating the insert from the base. Because of the generous wiring space there is sufficient space for cabling and installation.
- MOUNTING: The same rotating screws make the installation easier. The insert can be removed by pressing on the side, WAS offers additional flexibility. The cross-shape on the rear side of the box also provides for a reinforced bearing surface.
- Plaster balancing: Thanks to the plaster compensation seal, you can attach without gaps. The seal provides for a clean installation and compensates for deformations and unevenness at the mounting surfaces without any problem.
- RELIABLE SEAL: In order to achieve an optimum seal, the rear cable inlet, the mounting holes and the diaphragm on the side are provided with a seal and thus provide for an optimum weather and weather resistance.
- HIGH DEGREE OF PROTECTION: Thanks to the high degree of protection IP44 (with closed lid IP55) - IK07 the socket is dust- and dirt-proof as well as also water-proof. The socket is also fully protected against accidental contact.
